CARBURETOR

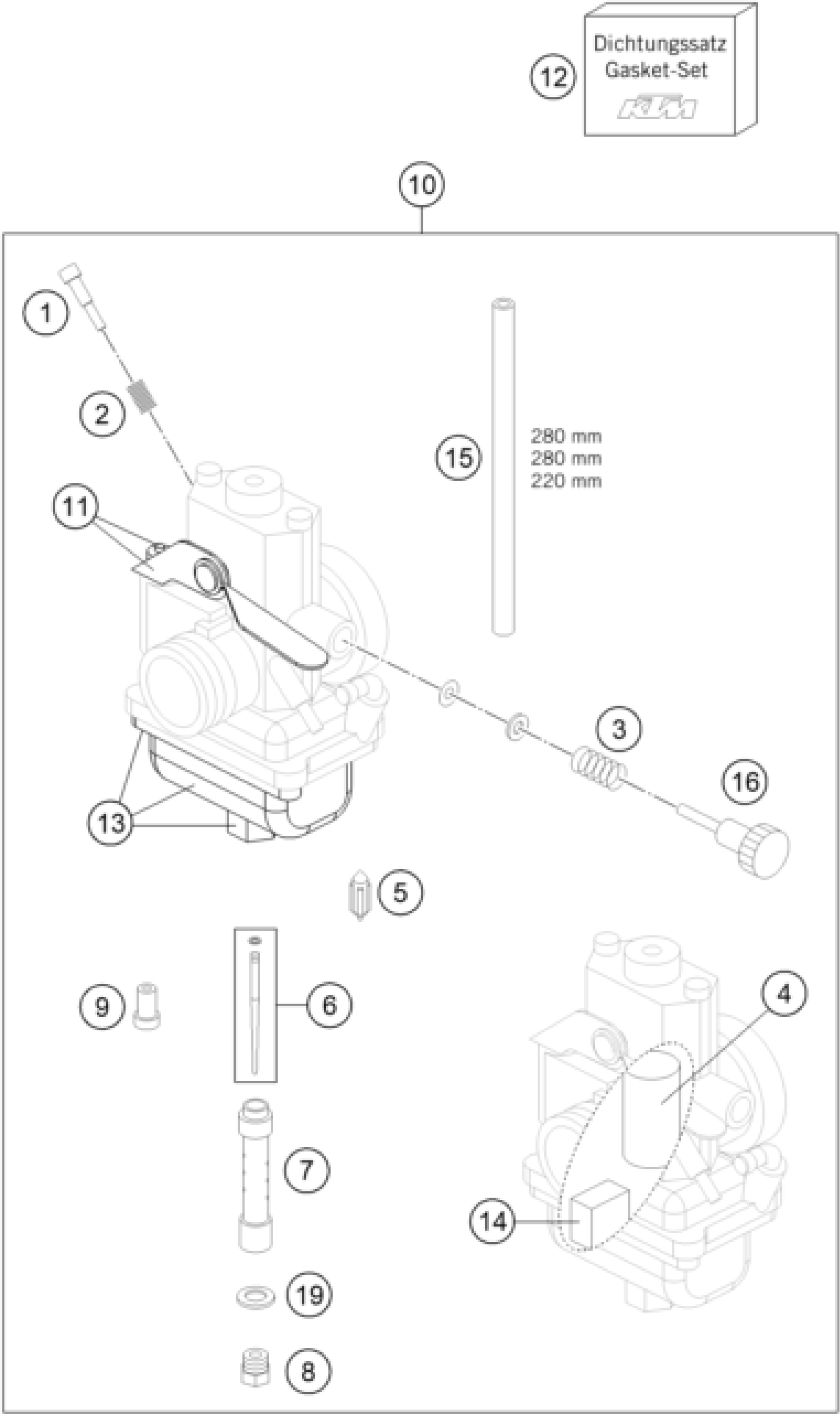

KTM 65 SX 2009 CARBURETOR Diagram
#
Description
Price
7
MAIN JET HOLDER MIKUNI
46231034100
$33.93
4
THROTTLE VALVE MIKUNI 2.5
46231035000
$135.38
5
NEEDLE VALVE CPL. 2.5
46231020000
$54.88
6
JET NEEDLE MIKUNI 5IPL43-2
46231034000
$18.04
1
ADJUSTING SCREW MIKUNI
46131017000
$9.90
3
SPRING
45031015000
$5.23
2
SPRING IDLE ADJUST SCREW
45031015200
$4.11
8
MAIN JET 195
45031023195
Unavailable
9
IDLING JET 15 MIKUNI
45031007015
Unavailable
16
ADJUSTER SCREW
46231094000
$12.33
10
CARBURETOR 65 SX 2009
46231001044
$358.98
8
MAIN JET 200
45031023200
Unavailable
8
MAIN JET 205
45031023205
Unavailable
8
MAIN JET 210
45031023210
Unavailable
8
MAIN JET 215
45031023215
Unavailable
8
MAIN JET 220
45031023220
Unavailable
8
MAIN JET 225
45031023225
Unavailable
8
MAIN JET
45031023230
Unavailable
9
IDLING JET 20 MIKUNI
45031007020
Unavailable
9
IDLING JET 25 MIKUNI
45031007025
Unavailable
9
IDLING JET
45031007000
Unavailable
9
IDLE JET 10 MIKUNI
45031007010
Unavailable
11
CHOKE + LEVER CPL.
46231048044
$114.34
12
GASKET SET MIKUNI
46231099000
$44.03
13
FLOAT BODY + SCREW + GASKET
46231011044
$70.40
14
FLOAT + PIN
46231009044
$51.32
15
PVC-HOSE 3X5MM
52031137001
$5.23
19
Washer
46231034050
$1.49
