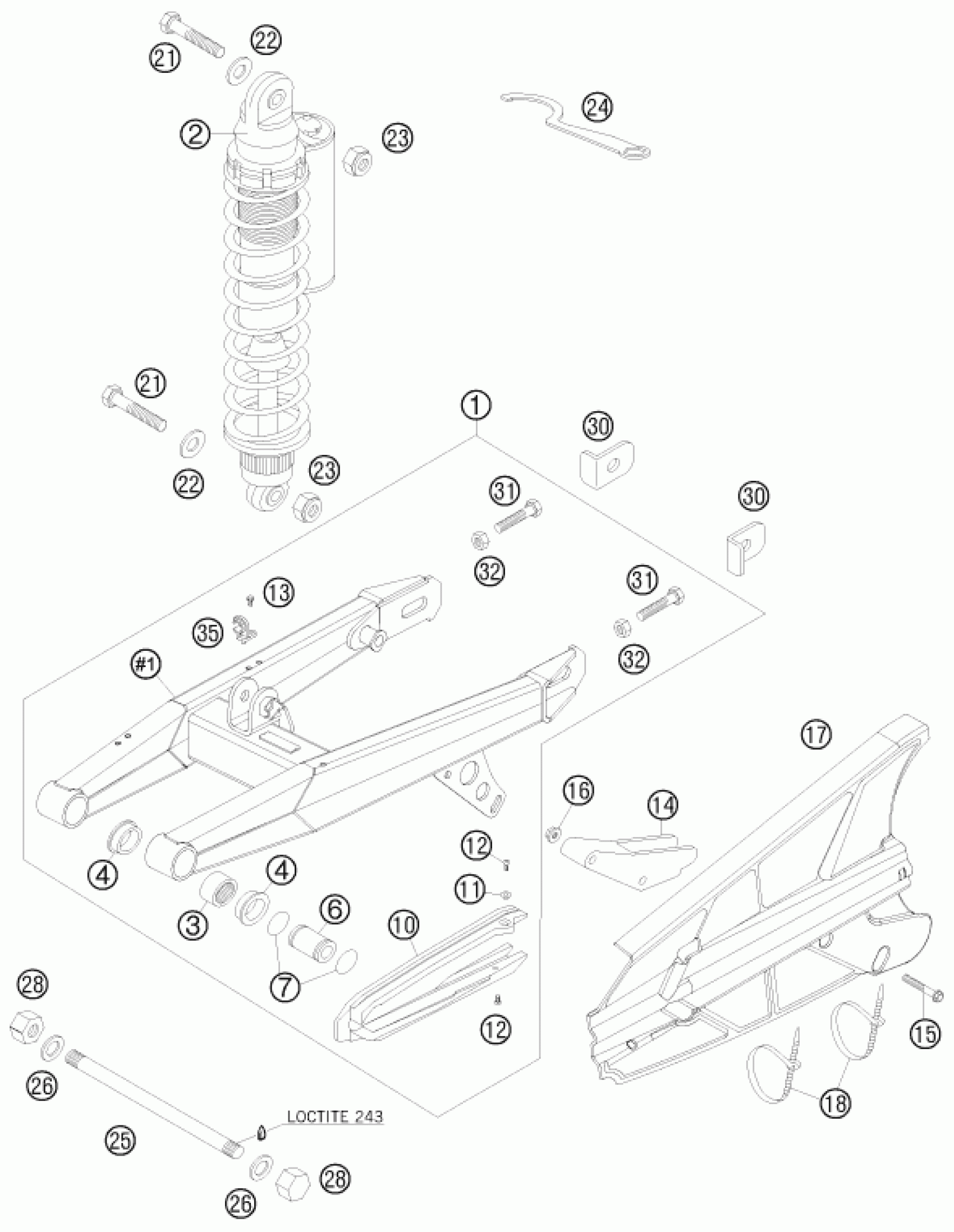

KTM 65 SX <2008> SHOCK ABSORBER Diagram

#

Description
Price

1

SWING ARM CPL. 65 SX 2008

46104030144

Unavailable

2

MONOSHOCK 65SX 2008

03187D03

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

4

Spacer bushing 20X26X30X9.7

46004030070

Unavailable

6

Bearing bush 12x20x36.5

46004030071

Unavailable

7

O-ring 16x2 Viton 75

0770160021

Unavailable

10

CHAIN SLID. GUARD FRO. 65SX 02

46104066000

Unavailable

11

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

12

SPECIAL SCREW M 5,0X10

0010050103

Unavailable

13

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

14

CHAIN GUIDE REAR 60/65 '98

46007066000

Unavailable

15

HH collar screw M6x40 TX30

0025060406

Unavailable

16

Self locking nut M6 - 10

56509064100

Unavailable

21

HH SCREW DIN0931-M10X45

0931100453

Unavailable

22

washer DIN 125 A 10.5

0125100003

Unavailable

23

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

24

HOOK WRENCH FOR SHOCK ABSORBER

46012024000

Unavailable

25

SWINGARM BOLT 201MM M12X1

46004037000

Unavailable

26

FLAT WASHER DIN0125-A13

0125120003

Unavailable

28

NUT DIN917-M12X1

0917120103

Unavailable

30

CHAIN ADJUSTER 60/65 '98

46010083000

Unavailable

31

HH SCREW M8X40 WS=10

50203030090

Unavailable

32

Hexagon nut DIN934 M8

0934080003

Unavailable

35

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

18

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

CHAIN GUARD 08

46104061000

Unavailable
