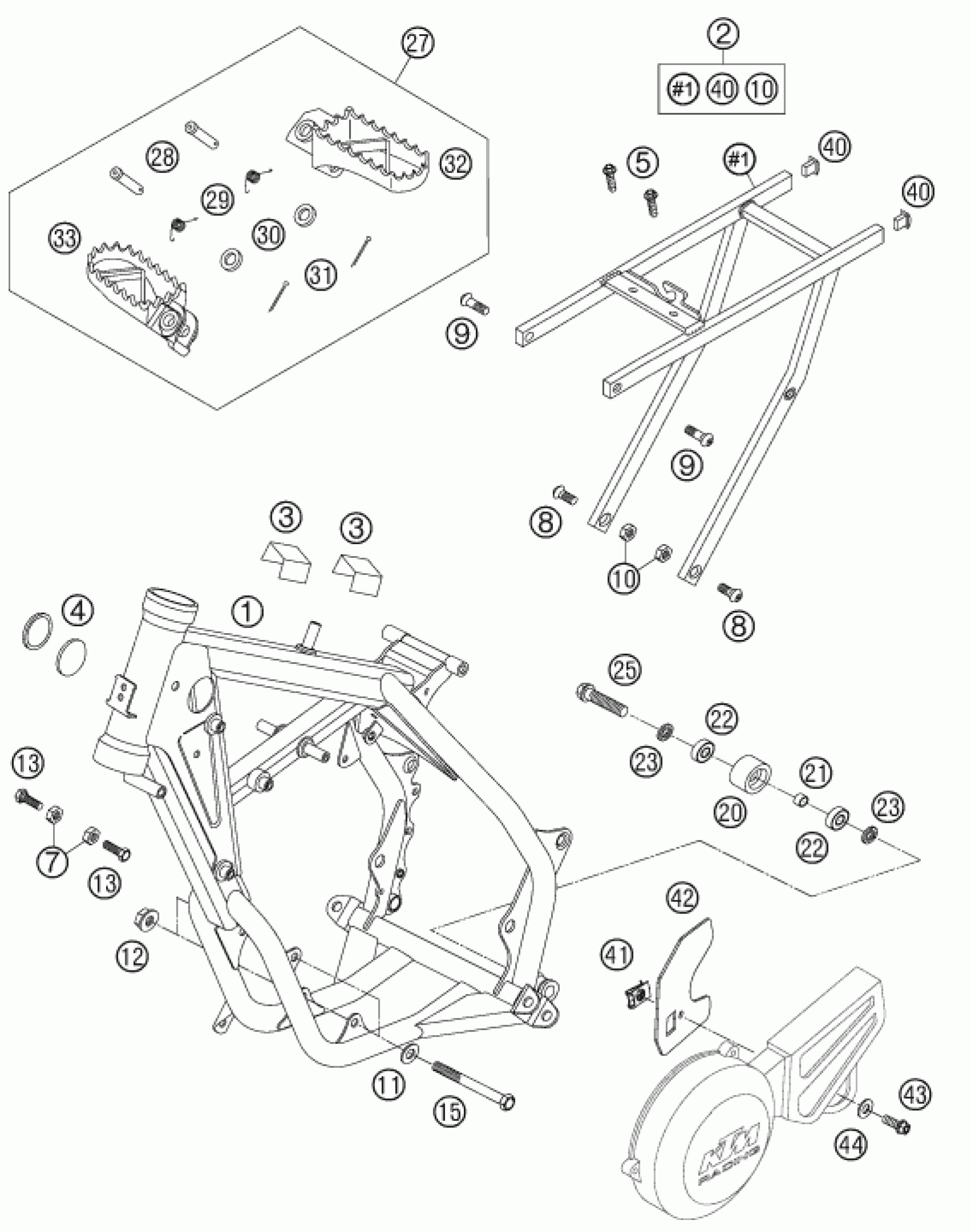

KTM 65 SX <2008> FRAME Diagram
#
Description
Price
2
SUB FRAME 65 SX 2002
46103002044
Unavailable
10
HEXAGON NUT DIN 934 M8
0934080006
Unavailable
3
METAMOLL FOR BATTERY BRACKET
58711054050
Unavailable
4
PLUG 37MM
54606004000
Unavailable
5
EJOT PT SCREW K60X20 WS=6
0017060203
Unavailable
7
Hexagon nut DIN934 M8
0934080003
Unavailable
8
SPROCKET SCREW-AH M8X20 WS=6
54610052000
Unavailable
9
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
11
washer DIN 125 A -8.4
0125080003
Unavailable
12
Self locking nut M8 10.9
54310086200
Unavailable
13
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
15
HH SCREW DIN 931 M8X80 10.9
0931080805
Unavailable
20
CHAIN ROLL D=30MM
50203053000
Unavailable
21
BUSHING 8.2 X 12 X 6
74003021000
Unavailable
22
Grooved ball bearing 608 2RS C
0625006087
Unavailable
23
LOCK WASHER 8MM
36003014000
Unavailable
25
HH collar screw M8x30
0025080306
Unavailable
27
FOOTPEG L.+R. CPL. 65 SX 03
4610304013390A
Unavailable
28
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
29
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
30
washer DIN 125 A 10.5
0125100003
Unavailable
31
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
32
FOOT PED L/S SILVER '98
5460304010090
Unavailable
33
FOOT PED R/S EXC SILVER 2000
59003041050
Unavailable
40
PLUG-IN CAP SW14 99
50303002182
Unavailable
41
clip nut M6
54603048100
Unavailable
42
CHAIN GUARD 08
46103096000
Unavailable
43
HH collar screw M6x16 TX30
0025060166
Unavailable
1
FRAME 65 SX ''MD6R'' bl. 20
4610300120030
Unavailable
44
WASHER DIN0125-A 6,4
0125060003
Unavailable
