Description

Price

1

SWING ARM CPL. 65 SX 2008

46104030144

$566.55

2

MONOSHOCK 65SX 2008

03187D03

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

$15.04

4

Spacer bushing 20X26X30X9.7

46004030070

$3.08

6

Bearing bush 12x20x36.5

46004030071

$17.85

7

O-ring 16x2 Viton 75

0770160021

$3.08

10

CHAIN SLID. GUARD FRO. 65SX 02

46104066000

$18.78

11

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

12

SPECIAL SCREW M 5,0X10

0010050103

$2.05

13

SPECIAL SCREW M 5,0X10

0009050103

$2.05

14

CHAIN GUIDE REAR 60/65 '98

46007066000

$14.02

15

HH collar screw M6x40 TX30

0025060406

$3.08

16

Self locking nut M6 - 10

56509064100

$2.05

21

HH SCREW DIN0931-M10X45

0931100453

$3.08

22

washer DIN 125 A 10.5

0125100003

$2.05

23

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

24

HOOK WRENCH FOR SHOCK ABSORBER

46012024000

$26.83

25

SWINGARM BOLT 201MM M12X1

46004037000

$23.39

26

FLAT WASHER DIN0125-A13

0125120003

$1.49

28

NUT DIN917-M12X1

0917120103

$5.23

30

CHAIN ADJUSTER 60/65 '98

46010083000

$14.02

31

HH SCREW M8X40 WS=10

50203030090

$4.11

32

Hexagon nut DIN934 M8

0934080003

$2.05

35

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

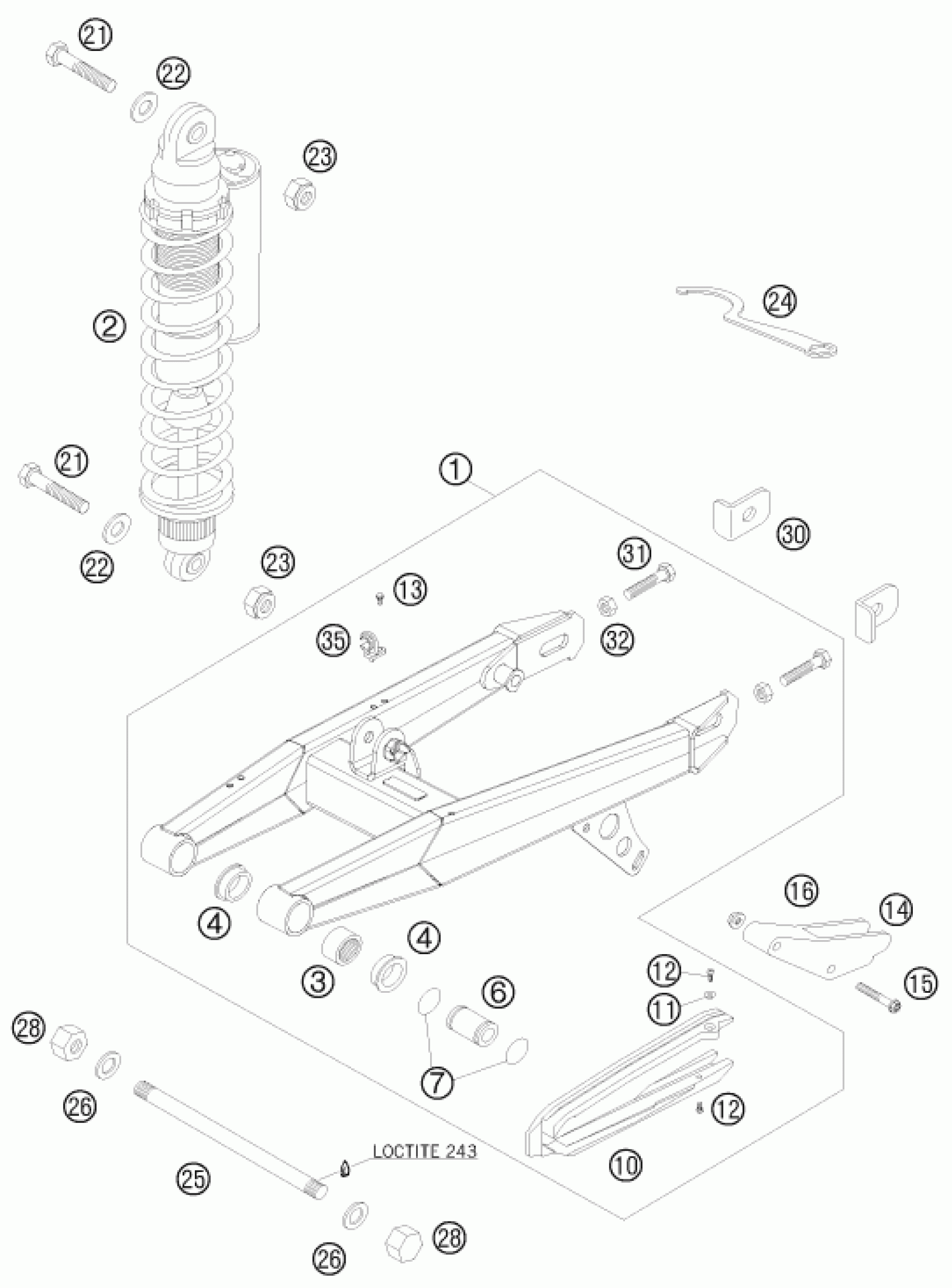

KTM 65 SX 2008 SHOCK ABSORBER Diagram

SWING ARM CPL. 65 SX 2008

MONOSHOCK 65SX 2008

Needle bushing HK 2016 / 20x26

Spacer bushing 20X26X30X9.7

Bearing bush 12x20x36.5

O-ring 16x2 Viton 75

CHAIN SLID. GUARD FRO. 65SX 02

BUSH FOR CHAINSLIDER GUARD 02

SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

CHAIN GUIDE REAR 60/65 '98

HH collar screw M6x40 TX30

Self locking nut M6 - 10

HH SCREW DIN0931-M10X45

washer DIN 125 A 10.5

SELF LOCKING NUT M10 CU WS=14

HOOK WRENCH FOR SHOCK ABSORBER

SWINGARM BOLT 201MM M12X1

FLAT WASHER DIN0125-A13

NUT DIN917-M12X1

CHAIN ADJUSTER 60/65 '98

HH SCREW M8X40 WS=10

Hexagon nut DIN934 M8

RETAIN.CLAMP FOR BRAKE HOSE'96
