Description

Price

47

Rim lock 2004

45110090000

$31.03

48

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

23

Rim band 14"

46009073000

$7.66

1

FRONT WHEEL-SP 1,6X14'' ALU ´0

46109001544

$430.14

2

FR.WHEEL HUB CPL. SILVER 2006

46109010144

$169.21

3

SPACER BUSH L/S 65SX 04

46009014000

$19.63

4

SPACER BUSH R/S 65SX 04

46009013000

$19.63

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

30

RIM FRONT 1,6X14'' ALU 200

46109070100

$120.76

31

SPOKE NIPPEL M3,5 2001

46009072100

$2.05

36

BRAKE DISK FRONT 65 SX 2004

46109060000

$114.34

40

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

41

Self locking nut M6 - 10

56509064100

$2.05

42

SPOKE M3,5X145MM

46009071000

$2.05

43

SPOKE M3,5X149MM

46009171000

$2.05

44

AXLE FRONT 65SX 2002

46109081000

$54.55

45

PLUG SFL13

55009086000

$2.05

46

HH COLLAR SCREW M10X20 WS=17

49032011000

$5.88

5

BEARING SPACER TUBE

46009011100

$18.60

99

SPOKE KIT FRONT ''14''

00050000912

Unavailable

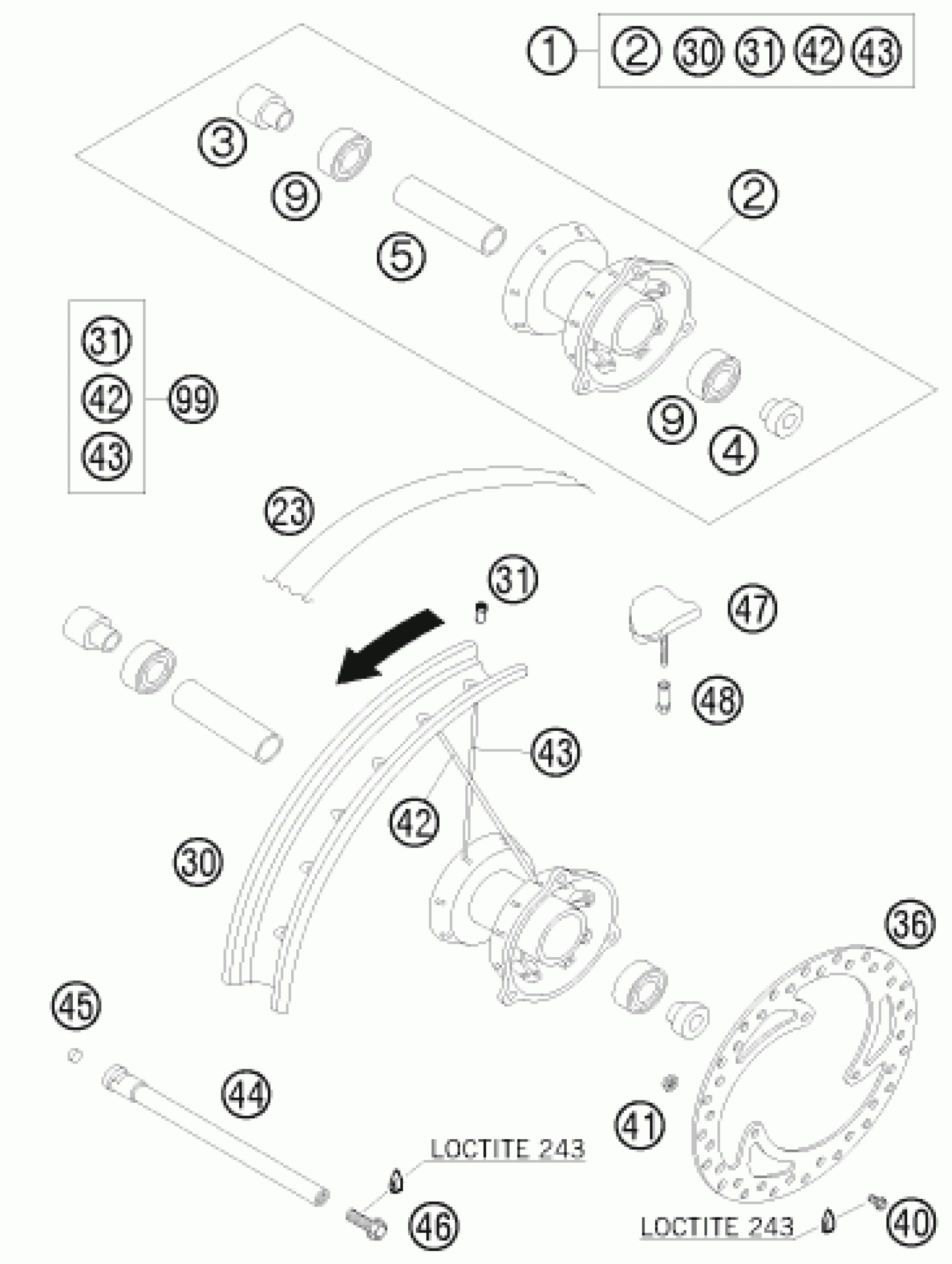

KTM 65 SX 2008 FRONT WHEEL Diagram

Rim lock 2004

NUT FOR WHEEL HOLDER '96

Rim band 14"

FRONT WHEEL-SP 1,6X14'' ALU ´0

FR.WHEEL HUB CPL. SILVER 2006

SPACER BUSH L/S 65SX 04

SPACER BUSH R/S 65SX 04

GR.BALL BEAR. 6003-2RSH/C3HMTF

RIM FRONT 1,6X14'' ALU 200

SPOKE NIPPEL M3,5 2001

BRAKE DISK FRONT 65 SX 2004

SPECIAL SCREW M6X16 WS=8 10.9

Self locking nut M6 - 10

SPOKE M3,5X145MM

SPOKE M3,5X149MM

AXLE FRONT 65SX 2002

PLUG SFL13

HH COLLAR SCREW M10X20 WS=17

BEARING SPACER TUBE

SPOKE KIT FRONT ''14''
