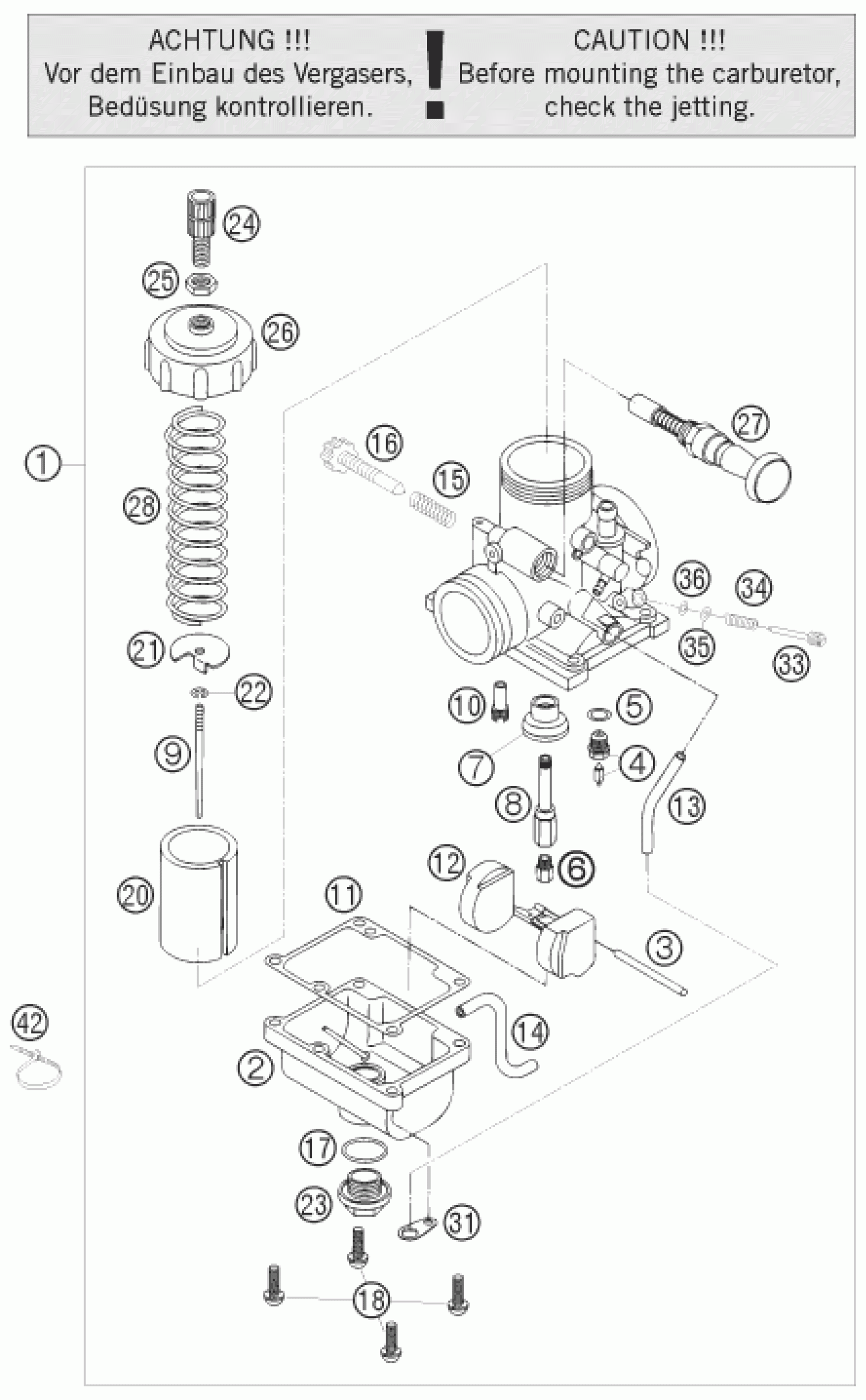

KTM 65 SX 2008 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR MIKUNI VM24-505 04

46131001000

$336.96

2

FLOAT BODY 5-1 VM24

46031011000

$24.35

3

PIN 2,5X27

45031008000

$3.08

4

NEEDLE VALVE CPL. VM24

46131020000

$39.45

5

GASKET NEEDLE VALVE 9,1X12X0,5

46031018000

$2.05

6

MAIN JET 185

45031023185

Unavailable

6

MAIN JET 190

45031023190

Unavailable

6

MAIN JET 195

45031023195

Unavailable

6

MAIN JET 200

45031023200

Unavailable

6

MAIN JET 205

45031023205

Unavailable

7

BUFFLE

46031074000

$2.61

8

NEEDLE JET 864 0-0

46131021000

$26.08

9

JET NEEDLE MIKUNI 5I14

45031034200

$11.13

10

IDLING JET 25 MIKUNI

45031007025

Unavailable

11

GASKET FLOAT BOWL

45031010100

$7.05

12

FLOAT VM24

46031009000

$34.96

13

PVC-HOSE 3X5MM

52031137001

Unavailable

14

PVC-HOSE 3X5MM

52031137001

Unavailable

15

SPRING MIKUNI

45031015100

$2.61

16

THROTTLE VALVE SCREW M6X30

46031019000

$3.14

17

O-RING 17,5X1,4

46031043000

$4.11

18

LINTIL HEAD SCREW M4X16 (SET)

45031014016

$2.05

20

THROTTLE VALVE 1.5

46131035000

$110.23

42

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

21

HOLDING WASHER

46031032000

$4.11

22

SPRING

45031045000

$3.08

23

PLUG SCREW M16 WS=17

46031014000

$15.85

24

ADJUSTMENT SCREW M6X0,75

57031525000

$5.23

25

HH-NUT M6X0,75

45031026000

$2.61

26

CARBURETOR COVER VM24

46031027000

$17.30

27

COLD STARTER KNOB CPL. VM24

46031048044

$39.92

28

THROTTLE VALVE SPRING VM24

46031030000

$7.40

31

BRACKET FOR BREATHER HOSE

46031081000

$1.57

33

ADJUSTING SCREW MIKUNI

46131017000

$9.90

34

SPRING

45031015000

$5.23

35

WASHER ADJUSTING SCREW

46131032000

$2.05

36

O-RING ADJUSTING SCREW

46131033000

$3.08

6

MAIN JET 220

45031023220

Unavailable

6

MAIN JET

45031023230

Unavailable

10

IDLING JET 32,5 MIKUNI

45031007032

Unavailable
