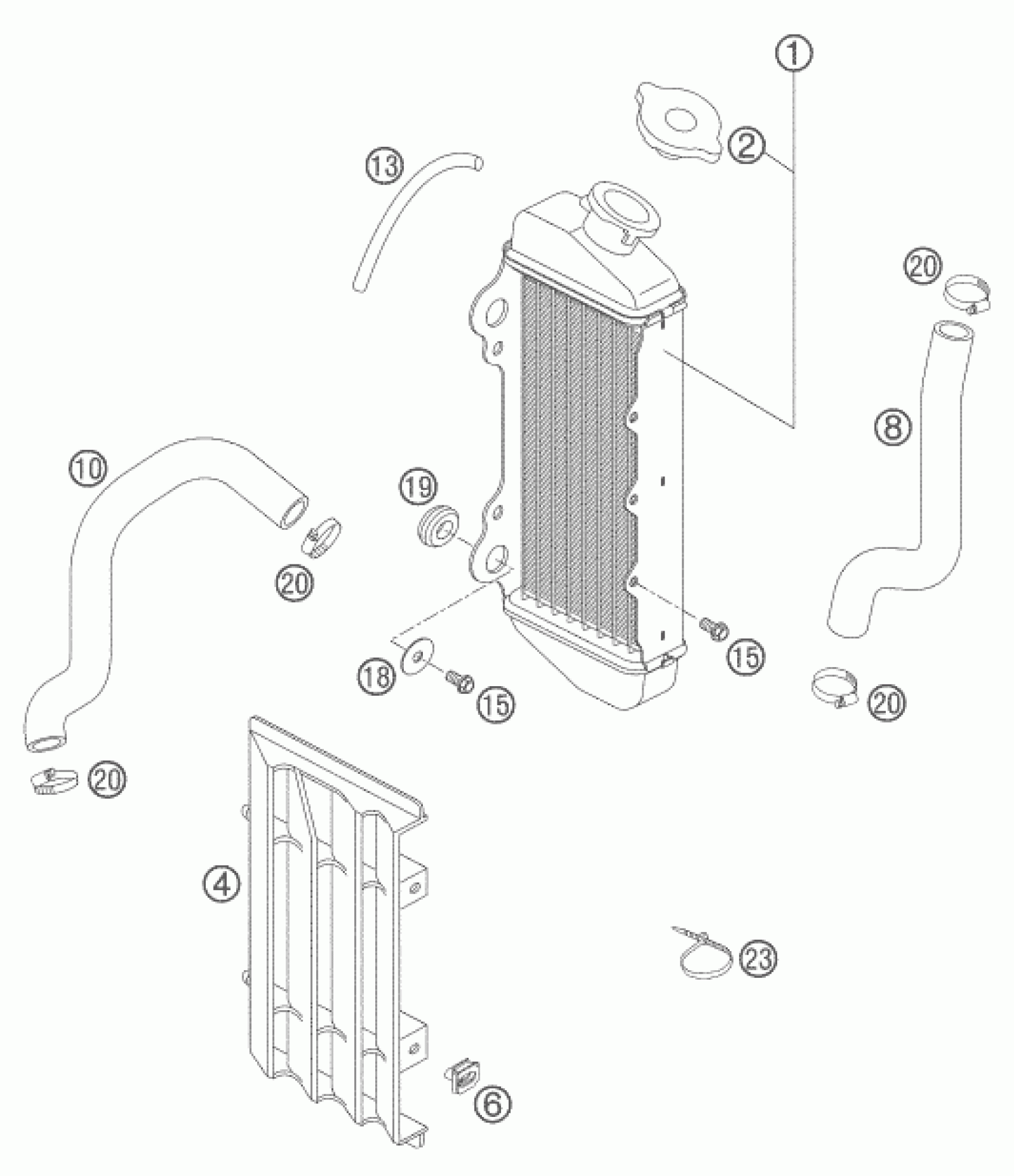

KTM 65 SX 2007 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR 65SX 2002

46135008000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

4

RADIATOR PROTECTOR L/S bl. 65

5453503400030

Unavailable

6

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

8

PREFORMED HOSE CYL.-RADI. 2002

46135026000

Unavailable

10

PREFORMED HOSE WAPU-RADI. 2002

46135027000

Unavailable

13

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

15

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

18

Washer DIN9021-A 6.4

0021060003

Unavailable

19

RUBBER SLEEVE D=12MM

41001052000

Unavailable

20

HOSE CLAMP GEMI 12/22

42013037200

Unavailable

23

Cable tie 200/4.6mm black

44011076200

Unavailable

23

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable
