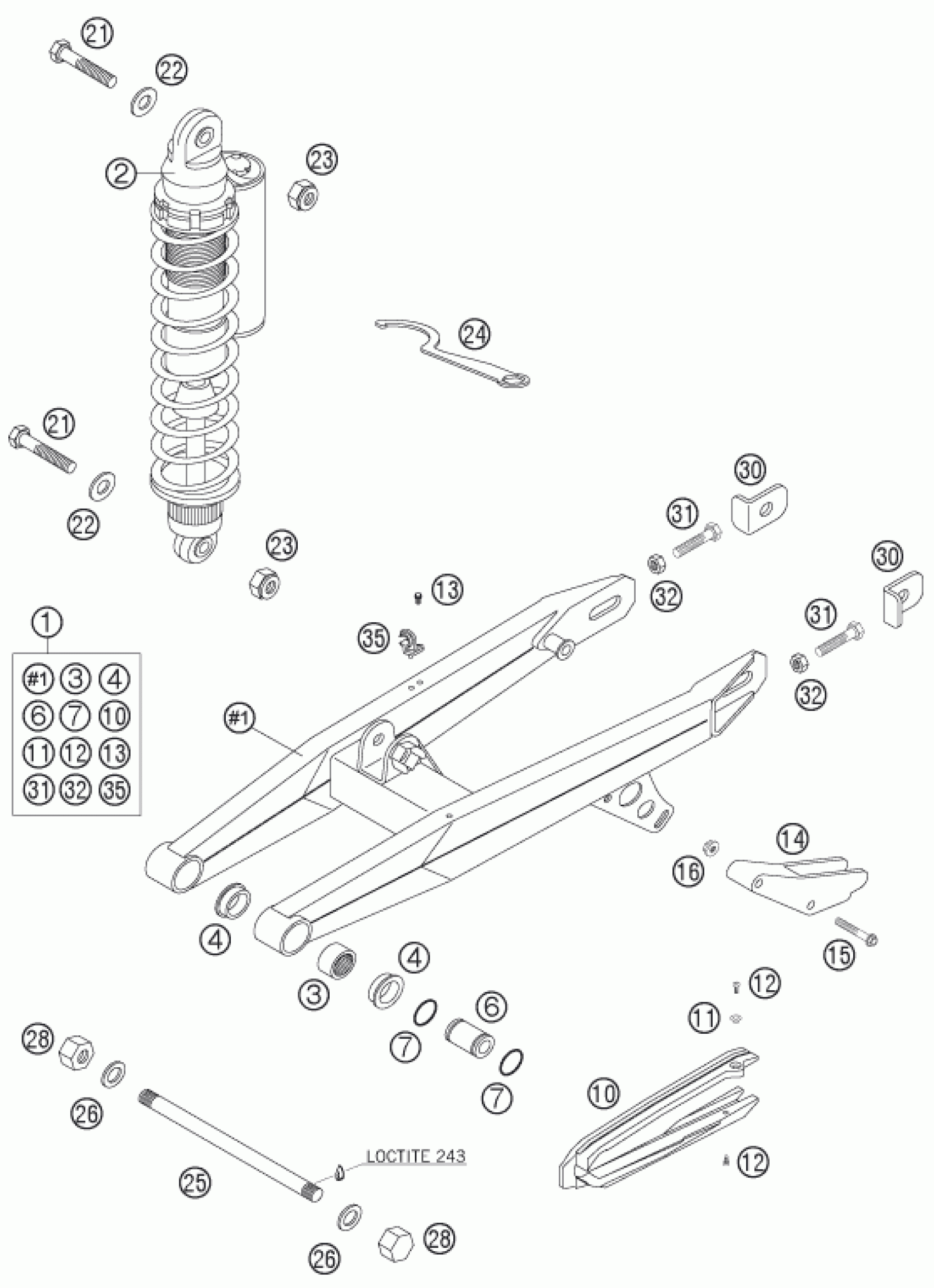

KTM 65 SX 2006 SWING ARM Diagram

#

Description
Price

1

SWINGARM CPL. 65 SX 2002

46104030044

$380.85

2

MONOSHOCK 65SX 2006

03187B03

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

$15.04

4

Spacer bushing 20X26X30X9.7

46004030070

$3.08

6

Bearing bush 12x20x36.5

46004030071

$17.85

7

O-ring 16x2 Viton 75

0770160021

$3.08

10

CHAIN SLID. GUARD FRO. 65SX 02

46104066000

$18.78

11

BUSH FOR CHAINSLIDER GUARD 02

46104066050

$8.31

12

SPECIAL SCREW M 5,0X10

0010050103

$2.05

13

SPECIAL SCREW M 5,0X10

0009050103

$2.05

14

CHAIN GUIDE REAR 60/65 '98

46007066000

$14.02

15

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

16

Self locking nut M6 - 10

56509064100

$2.05

21

HH SCREW DIN0931-M10X45

0931100453

$3.08

22

washer DIN 125 A 10.5

0125100003

$2.05

23

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

24

HOOK WRENCH FOR SHOCK ABSORBER

46012024000

$26.83

25

SWINGARM BOLT 201MM M12X1

46004037000

$23.39

28

NUT DIN917-M12X1

0917120103

$5.23

30

CHAIN ADJUSTER 60/65 '98

46010083000

$14.02

31

HH SCREW DIN0933-M 6X35

0933060353

$1.49

32

Hex. nut DIN 934 M6

0934060003

$1.49

35

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

$2.05

26

FLAT WASHER DIN0125-A13

0125120003

$1.49
