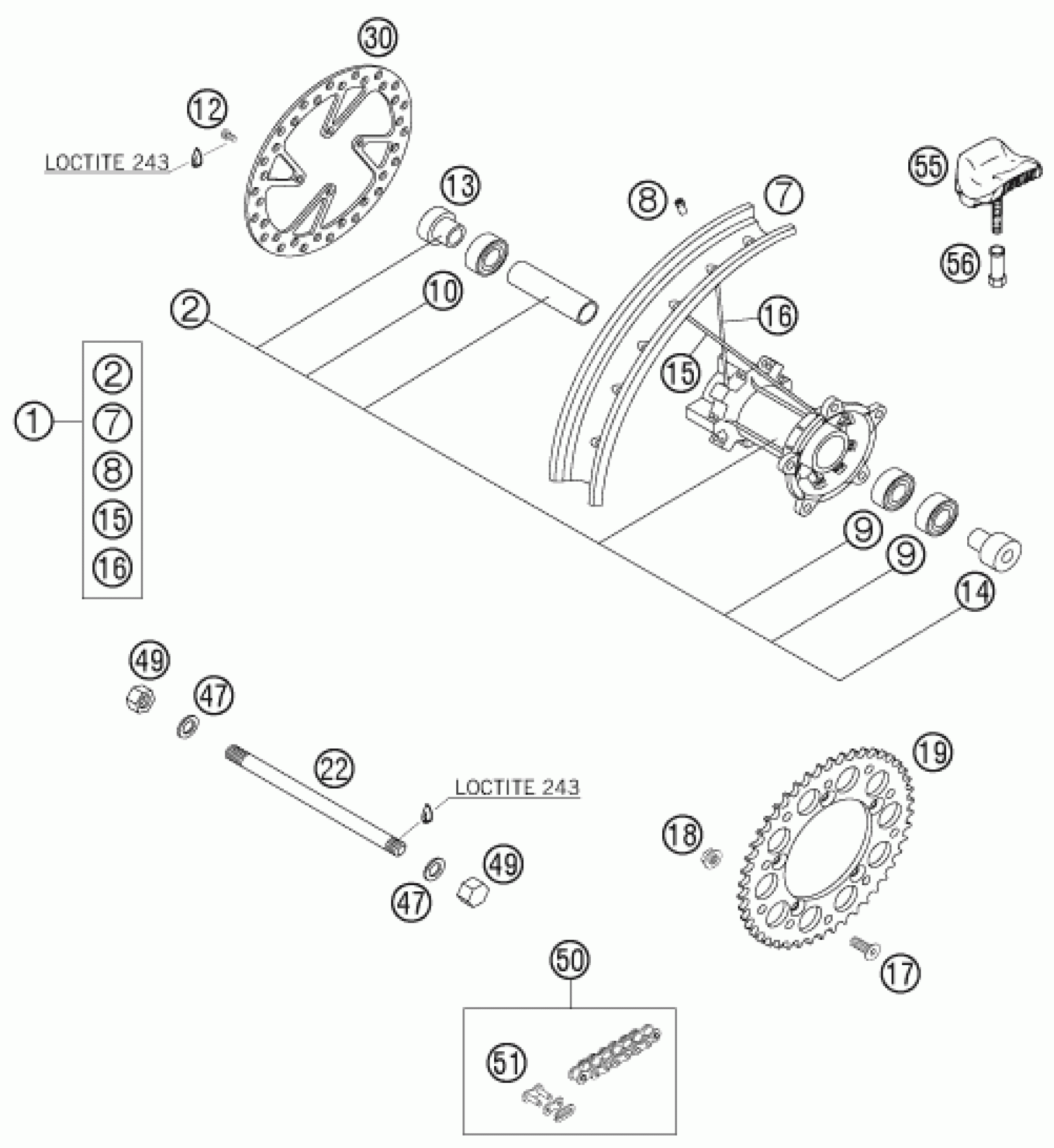

KTM 65 SX 2005 REAR WHEEL Diagram

#

Description
Price

1

REARWHEEL-SP 1,6X12'' ALU

46010001144

$461.40

2

REAR WHEEL HUB CPL.60/65 2000

46010010144

$241.22

7

RIM REAR 1,6X12'' ALU

46010070000

$114.19

8

SPOKE NIPPEL M3,5 2001

46009072100

$2.05

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

$30.19

10

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

$17.94

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

SPACER BUSH R/S SX 60/65 2000

46010013000

$9.90

14

SPACER BUSH L/S SX 60/65 2000

46010014000

$10.65

15

SPOKE 3X140X4MM-161°

46010071100

$2.05

16

SPOKE 3X132X5MM-150°

46010171100

$1.49

17

FLAT HEAD SCREW DIN7991-M 8X25

0991080253

$3.08

18

Self locking nut M8 10.9

54310086200

$3.08

19

REAR SPROCKET 46-T

46010051046

Unavailable

19

REAR SPROCKET 48-T

46010051048

Unavailable

19

REAR SPROCKET 50-T

46010051050

$62.92

22

AXLE REAR 213MM M12X1

46010085100

$33.00

30

BRAKE DISC REAR 65 SX 2004

46110060000

$83.49

47

FLAT WASHER DIN0125-A13

0125120003

$1.49

49

NUT DIN917-M12X1

0917120103

$5.23

50

Chain 1/2X1/4''

46110165112

$37.39

51

CONNECTING LINK 1/2X1/4''

46110166000

$2.54

55

RIM LOCK VM1 (1,60'')

51009100100

$17.57

56

NUT FOR WHEEL HOLDER '96

50310090050

$5.23
