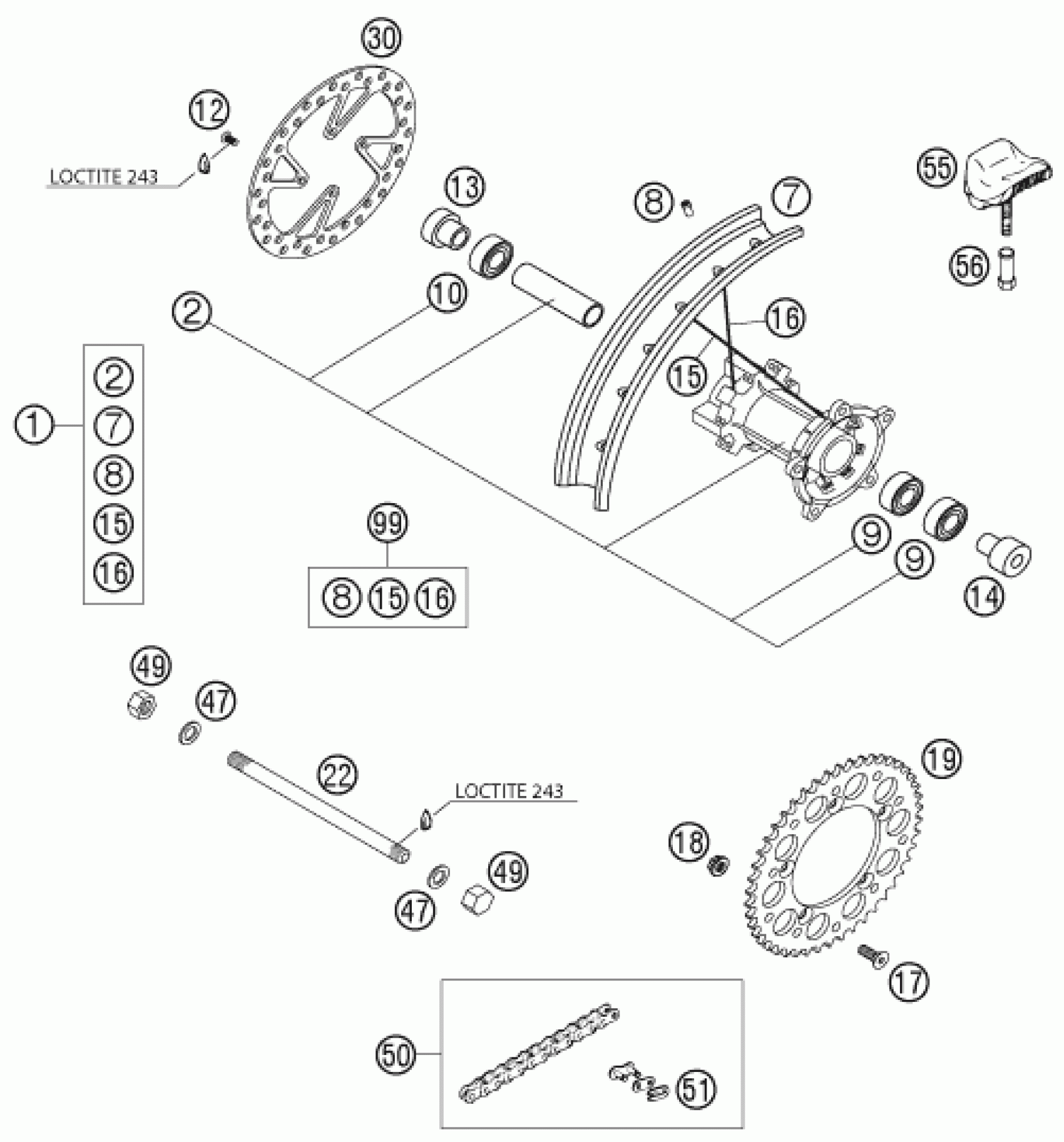

KTM 65 SX 2004 REAR WHEEL Diagram

#

Description
Price

1

REARWHEEL-SP 1,6X12'' ALU

46010001144

Unavailable

2

REAR WHEEL HUB CPL.60/65 2000

46010010144

Unavailable

7

RIM REAR 1,6X12'' ALU

46010070000

Unavailable

8

SPOKE NIPPEL M3,5 2001

46009072100

Unavailable

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

10

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

Unavailable

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

13

SPACER BUSH R/S SX 60/65 2000

46010013000

Unavailable

14

SPACER BUSH L/S SX 60/65 2000

46010014000

Unavailable

15

SPOKE 3X140X4MM-161°

46010071100

Unavailable

16

SPOKE 3X132X5MM-150°

46010171100

Unavailable

17

FLAT HEAD SCREW DIN7991-M 8X25

0991080253

Unavailable

18

Self locking nut M8 10.9

54310086200

Unavailable

19

REAR SPROCKET 46-T

46010051046

Unavailable

19

REAR SPROCKET 48-T

46010051048

Unavailable

19

REAR SPROCKET 50-T

46010051050

Unavailable

22

AXLE REAR 213MM M12X1

46010085100

Unavailable

30

BRAKE DISC REAR 65 SX 2004

46110060000

Unavailable

47

FLAT WASHER DIN0125-A13

0125120003

Unavailable

49

NUT DIN917-M12X1

0917120103

Unavailable

50

Chain 1/2X1/4''

46110165112

Unavailable

51

CONNECTING LINK 1/2X1/4''

46110166000

Unavailable

55

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

56

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

99

SPOKE KIT REAR ''12''

00050000911

Unavailable
