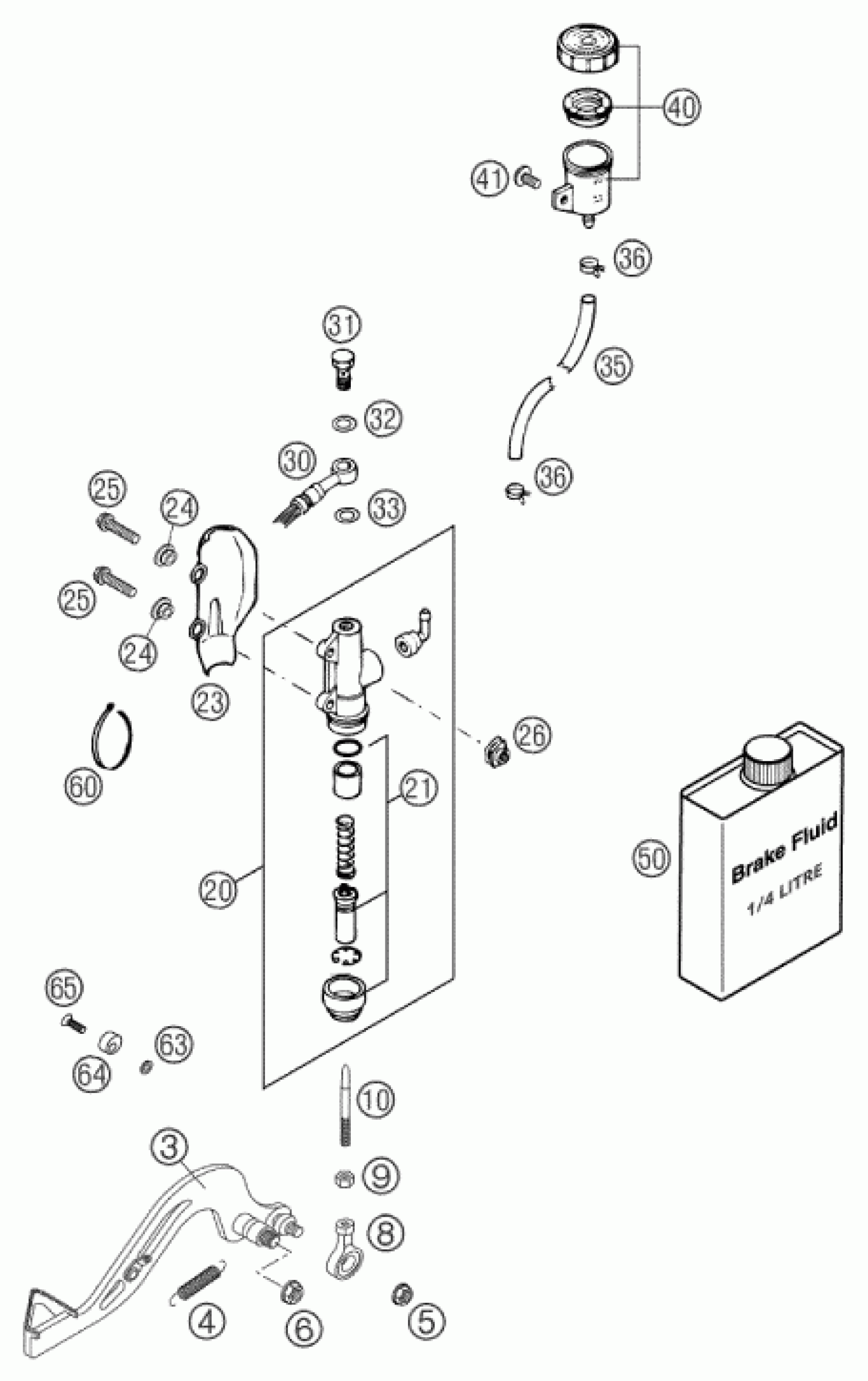

KTM 65 SX 2003 REAR BRAKE CONTROL Diagram

#

Description
Price

3

REAR BRAKELEVER CPL.60/65 20

46003060244

Unavailable

4

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

5

Self locking nut M6 - 10

56509064100

$2.05

6

Self locking nut M8 10.9

54310086200

$3.08

8

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

9

Hex. nut DIN 934 M6

0934060003

$1.49

10

PRESSURE ROD ALU 250 '90

54603068000

$6.35

20

FOOTBRAKE CYLINDER D=12MM 2000

50313060000

$67.72

21

REP. KIT PISTON 12MM 2000

50313061000

$34.77

23

BRAKE CYL. PROTECTOR ''BREMBO'

54513038000

$7.00

24

COLLAR BUSHING

50213161000

$3.08

25

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

26

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

30

BRAKE H REAR 594MM 60/65 2000

46013070100

$32.28

31

HOLLOW SCREW M10X1X19

50213025000

$6.54

32

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

33

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

35

HOSE FOR RESERVOIR 6X1,5

58007016101

Unavailable

36

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

40

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

41

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

50

BRAKE FLUID DOT 4.0

306054

Unavailable

60

Cable tie 200/4.6mm black

44011076200

Unavailable

63

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

64

BRAKE LEVER STOP '93

58303063000

$5.98

65

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05
