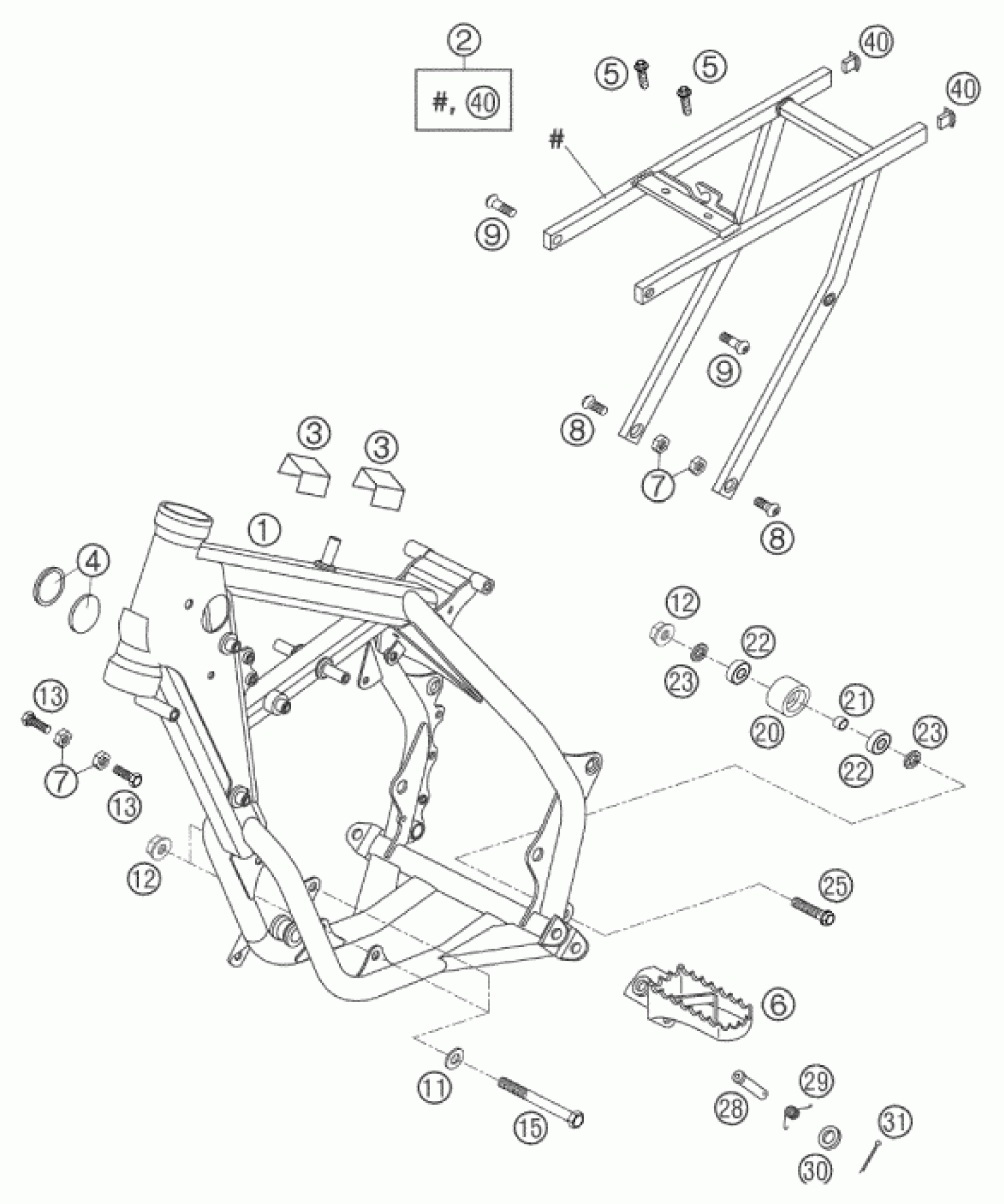

KTM 65 SX 2003 FRAME Diagram

#

Description
Price

1

FRAME 65 SX ''MD3R'' 20

4610300110090

$355.85

2

SUB FRAME 65 SX 2002

46103002044

$209.15

3

METAMOLL FOR BATTERY BRACKET

58711054050

$2.05

4

PLUG 37MM

54606004000

$2.05

5

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

6

FOOT PED L/S SILVER '98

5460304010090

$34.15

0

FOOT PED R/S SILVER '98

5460314010090

$39.03

7

Hexagon nut DIN934 M8

0934080003

$2.05

8

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

9

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

11

washer DIN 125 A -8.4

0125080003

$1.49

12

Self locking nut M8 10.9

54310086200

$3.08

13

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

15

HH SCREW DIN0931-M 8X80

0931080803

$1.49

20

CHAIN ROLL D=30MM

50203053000

$6.72

21

BUSHING 8.2 X 12 X 6

74003021000

$3.08

22

Grooved ball bearing 608 2RS C

0625006087

$21.40

23

LOCK WASHER 8MM

36003014000

$2.05

25

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

28

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

29

FOOTREST SPRING L/S & R/S

54603041000

$5.23

30

washer DIN 125 A 10.5

0125100003

$2.05

31

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

40

PLUG-IN CAP SW14 99

50303002182

$2.65
