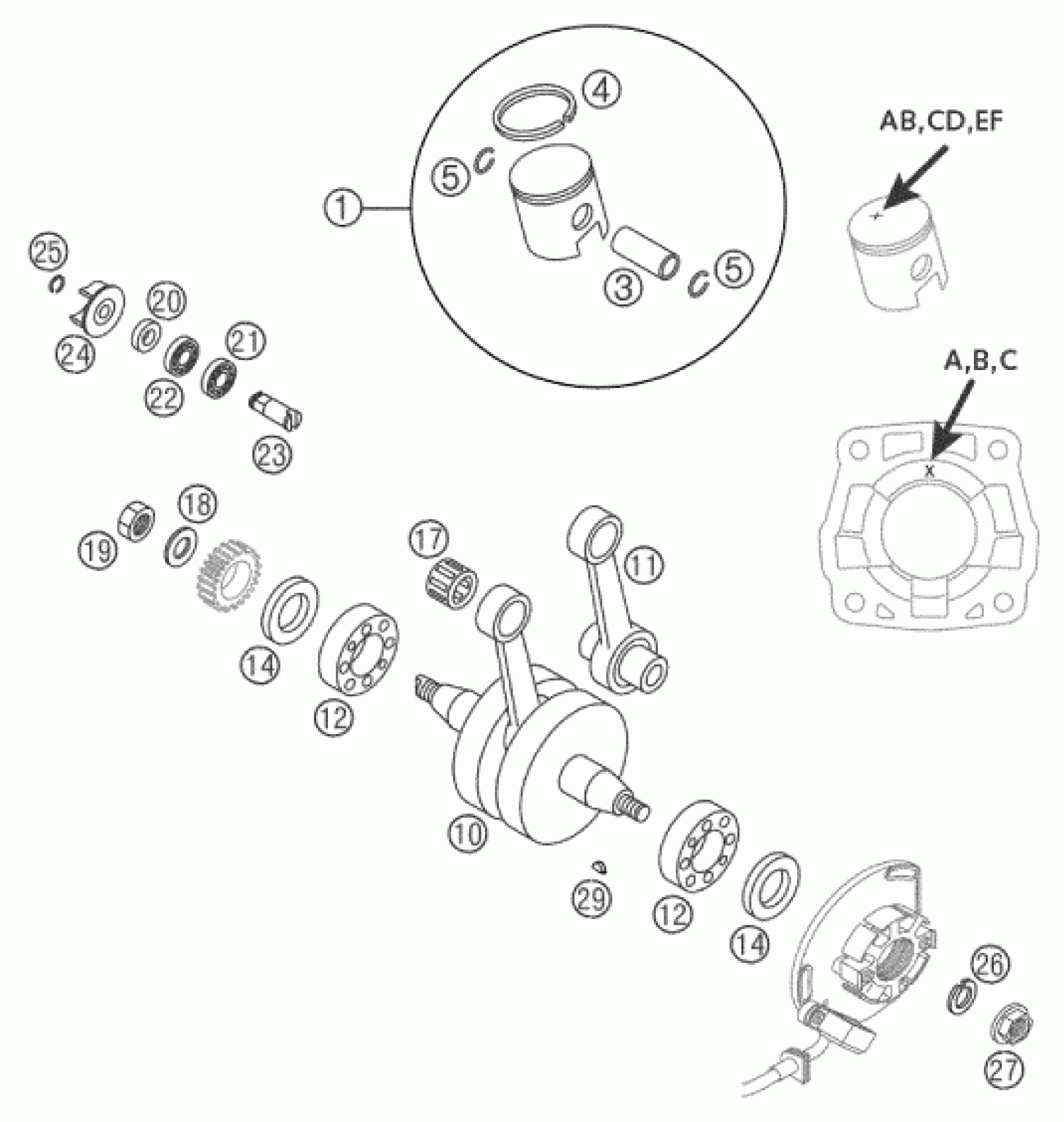

KTM 65 SX 2003 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON CPL. 45MM ''A/B'' 65'

46030007500 A

Unavailable

1

PISTON CPL. 45MM ''C/D'' 65'

46030007500 C

Unavailable

1

PISTON CPL. 45MM ''E/F'' 65'

46030007500 E

Unavailable

3

PISTON PIN 12X38

46030033000

$14.11

4

PISTON RING 45MM 65CCM

46030030500

$47.58

5

CIRCLIP 12X1

46030074000

Unavailable

10

CRANKSHAFT CPL. STROKE 40,8

46030018200

$306.51

11

CONN.ROD REPAIR SET 65 SX 2003

46030015100

$229.63

12

GROOVED BALL BEAR.20X52X15 NTN

46030082200

$22.71

14

SHAFT SEAL RING 20X35X6

46030077000

Unavailable

17

NEEDLE BEAR.PISTONPIN 12X15X17

46030034000

$13.55

18

LOCKING WASHER 14X20X1

46030078100

Unavailable

19

HH-NUT M14X1,25X5 '99

46030029100

$8.14

20

SHAFT SEAL RING 10X18X4

46035056100

$8.59

21

WATER PUMP BEARING 10X19X5

46035057000

$26.45

22

WA.PU.BEAR. 10X19X5 DOUBLELIP

46035058000

$29.72

23

WATER PUMP SHAFT 60/65 '99

46035054000

$37.30

24

WATER PUMP WHEEL 60/65 '99

46035055100

$11.02

25

CIRCLIP DIN0471- 9X1

0471090010

$2.05

26

LOCKING RING VSK 12

50230029012

$2.05

27

COLLAR NUT M12X1 R/S

49030021000

$2.05

29

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05
