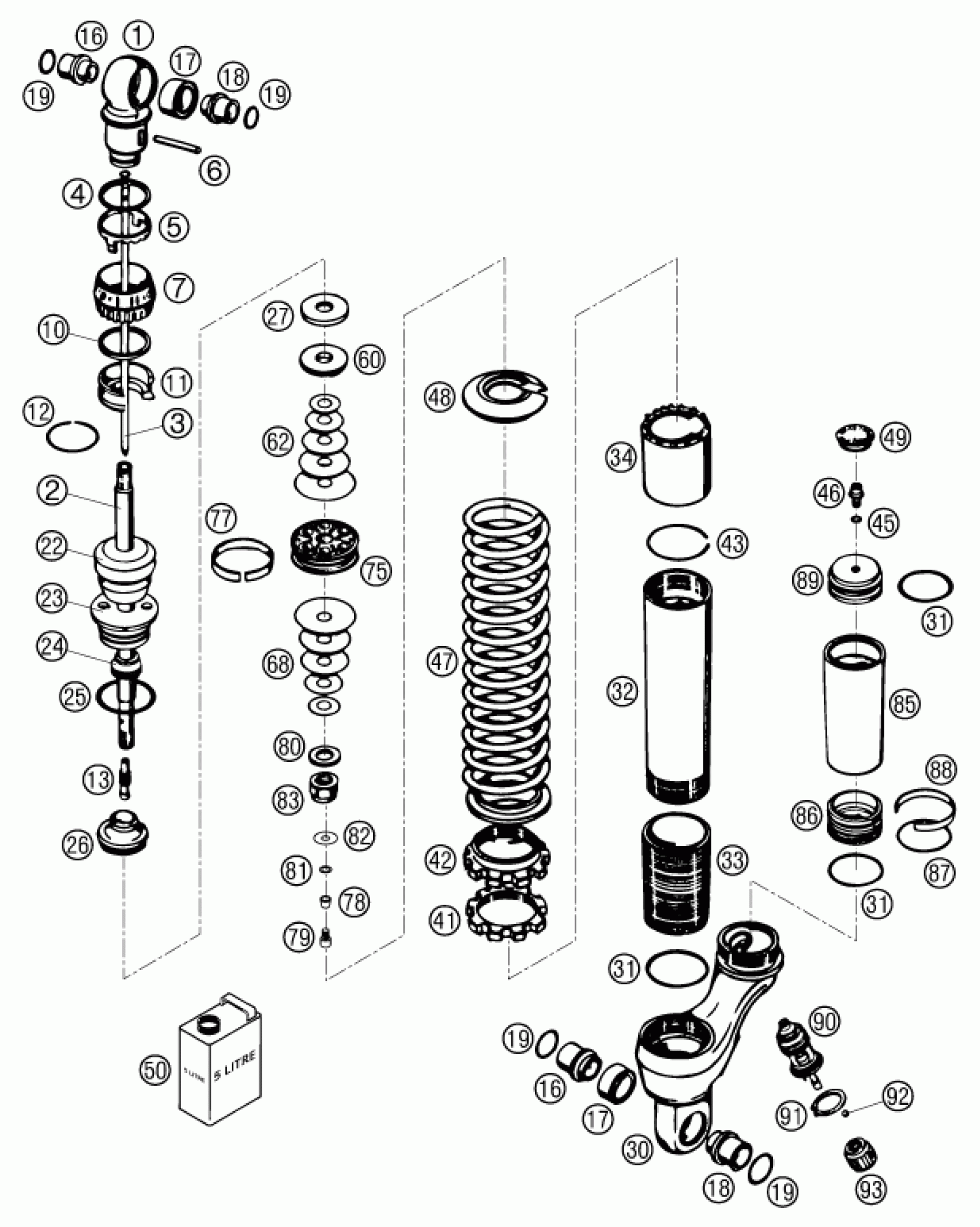

KTM 65 SX 2002 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

SHOCK ABS. BOTTOM L=46

46811525

$213.07

2

PISTON ROD D=14

36120587

Unavailable

3

NEEDLE CPL. D=4, L=145

46811402S

Unavailable

4

O-RING 36X0,5

46811222

$2.32

5

WASHER

46811263

$10.12

6

PIN 4X35

46811261

$3.78

7

ADJ. KNOB D=41

46811262

$12.59

10

Shaft seal 29x35x3

46811221

$11.45

11

INTERMEDIATO RING H=4

46811367

$30.12

12

CIRCLIP 22X1,2

46811268

$1.60

13

NEEDLE SEAT 5X17,25

46811259

$70.29

16

ADAPTOR BUSH KGW 10X20

46811076

$13.19

17

Ball joint bearing 15x25x13

46811027

$29.35

18

ADAPTOR BUSH KGW 10X22

46811077

$19.33

19

SEAL KGW

46811050

$8.13

22

BUMP RUBBER WP65 RED

36120135

$24.97

23

SCREW CAP M37,65

36120521

$71.87

24

DUST SEAL 1424

46811044

$19.35

25

O-ring 29,74x3,53 NBR70

36120064

$1.82

26

ADAPTER CPL. D=36 H=20,5

36120522S1

$102.91

27

washer 28,5X14X5

36120471

$10.56

30

SHOCK ABSORB.CASE PGB KGW H=33

36120726

$219.65

31

O-RING 38,00X2,00 NBR 70 SH

0770380020

$3.08

32

TUBE L=167

36120137

$69.50

33

Bush M40x1xM44x1,5x70

36120019

$28.38

34

PROTECTION SLEEVE L=40

36120467

$17.88

41

Lock nut shock M44x1,5

36120015

$30.75

42

Adjustment nut shock M44x1,5

36120418

$45.71

43

Round-wire snap ring 38x1,5

40540015

$3.08

45

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

46

HS lock screw M5x6

36120151

$1.86

47

SPRING WP 40-220

93010049

$125.26

48

Spring retainer 27x57x2

36120386

$27.01

49

Rubber cap do not open 22x5,5

46811208

$3.08

50

SHOCK ABSORBER FLUID 5 LT

46810208S1

Unavailable

60

REBOUND BUSH H=5,6

36120557

Unavailable

62

SHIM 10X16X0,30

36120312

$2.05

62

SHIM 10X21X0,20

36120334

$2.05

62

SHIM 10X23X0,20

36120335

$2.05

62

SHIM 10X25X0,20

36120336

$2.05

62

SHIM 10X27X0,20

36120337

$2.05

62

SHIM 10X29X0,15

36120330

$2.05

62

SHIM 10X31X0,15

36120331

$2.05

62

SHIM 10X33X0,15

36120332

$2.05

62

SHIM 10X27X0,15

36120329

$2.05

62

SHIM 10X19X0,15

36120325

$2.05

62

SHIM 10X33X0,20

36120340

$2.05

68

SHIM 10X18X0,30

36120314

$2.05

68

SHIM 10X21X0,25

36120342

$2.05

68

SHIM 10X23X0,25

36120343

$2.05

68

SHIM 10X25X0,20

36120336

$2.05

68

SHIM 10X16X0,10

36120284

$2.05

68

SHIM 10X23X0,20

36120335

$2.05

68

SHIM 10X25X0,15

36120328

$2.05

75

PISTON 6+6XD=5,5/3,5 BA

36120603

$61.70

77

Pistonring 33x35x8

36120040

$6.91

78

BUSHING 6X9X3

46811267

Unavailable

79

BLEED SCREW M 4X6

46811251

$3.93

80

Washer 10x22x2,5

36120604

$20.84

81

Shim 6x9,5x0,30

40540450

$2.05

82

Shim 6x18x0,10

40540403

$2.05

83

PISTON ROD NUT CPL. H=15,2

36120605S2

Unavailable

85

RESERVOIR SCREW L=98, D=42

36120554

Unavailable

86

Piston 42mm reservoir

36120024

$31.04

87

O-ring 32x5 Viton70

36120466

Unavailable

88

Piston ring 36,5x39,5x3,9

46810022

$16.35

89

SCREW FOR RESERVOIR CAP M5

36120552

$43.67

90

CC-COMPRE.DAMPING CONTROL CPL.

46810850S7

Unavailable

91

LOCK WASHER JV24

46810334

$1.60

92

Steel ball 4.75mm

46810333

$1.49

93

ADJUSTING KNOB CC-MECH. CPL.

50180131S

$24.54
