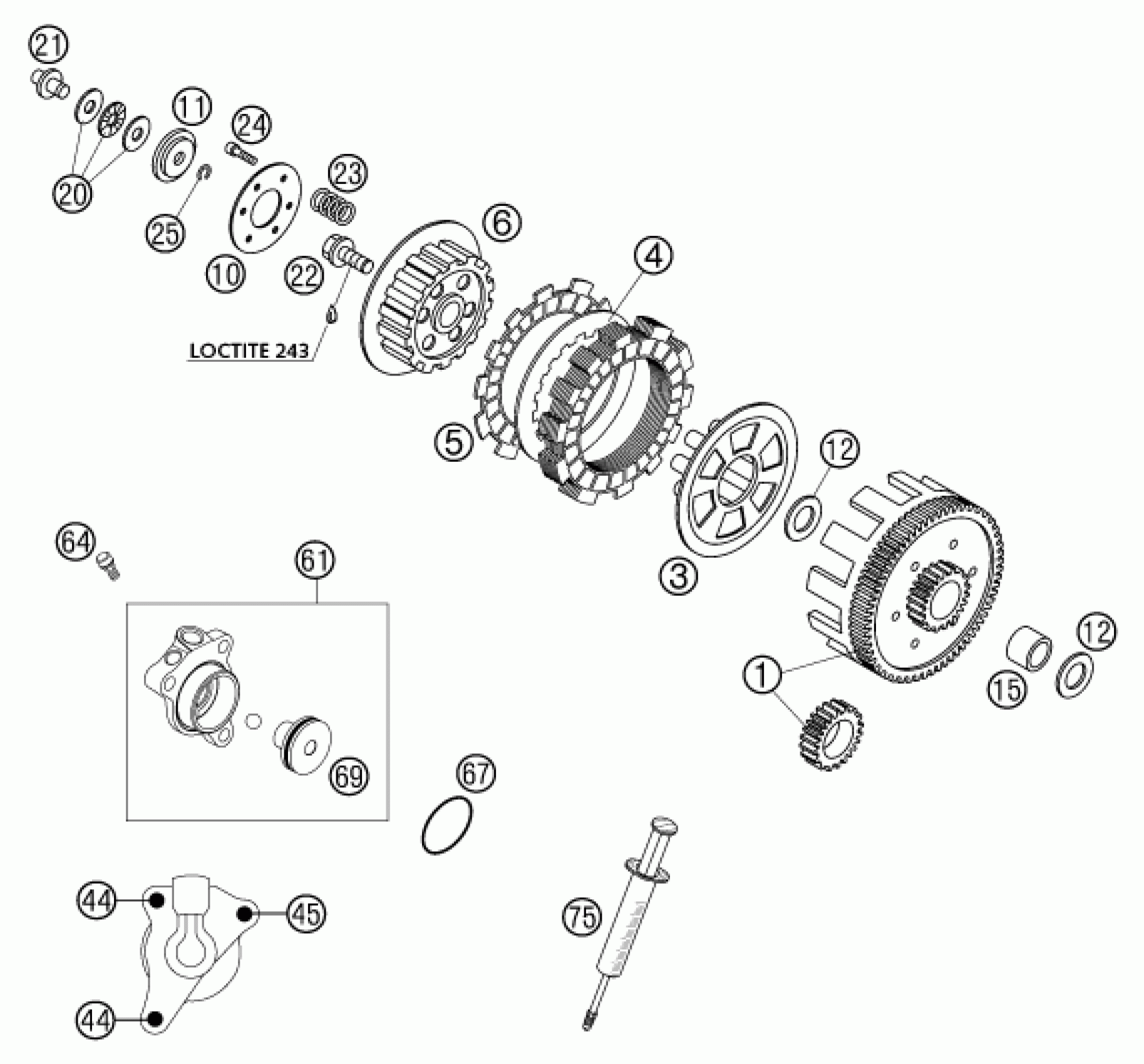

KTM 65 SX 2002 CLUTCH Diagram

#

Description
Price

1

PRIM.DR.W.CLUTCH HUB 23:75 '99

46032000144

$393.91

3

PRESSURE CAP 60/65 CCM '98

46032003000

$76.10

4

INTERMEDIATE DISK STEEL

46032010000

$12.33

5

LINING DISK

46032011000

$13.40

6

INNER CLUTCH HUB 60/65 CCM '98

46032002000

$95.92

10

SPRING RETAINER 25X63,5X2

46032006000

$28.70

11

CARRIER FOR AXIAL BEARING

46032008000

$6.13

12

STOP DISK 17,2X30X1,5

49032012000

$3.48

15

INNER RING 22X17X20,5

46032015000

$30.05

20

AXIAL BEARING 6X19X2

46032056000

$24.55

21

PRESSURE PIECE 65 SX 2002

46032054100

$15.57

22

HH COLLAR SCREW M10X20

46032019000

$5.70

23

CLUTCH SPRING REINFORCED 60/65

46032005100

$3.08

24

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

25

CIRCLIP DIN0471-6X0,7

0471006007

$1.49

44

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

45

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

61

CYLINDER CPL. 250-380 '99

54732061044

Unavailable

64

BLEEDER SCREW WITH CAP

54732064000

$21.96

67

O-ring 30x1.5 NBR 70

0770300015

$2.05

69

PISTON W. O-RING 250-380 '00

54632066000

$240.75

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26
