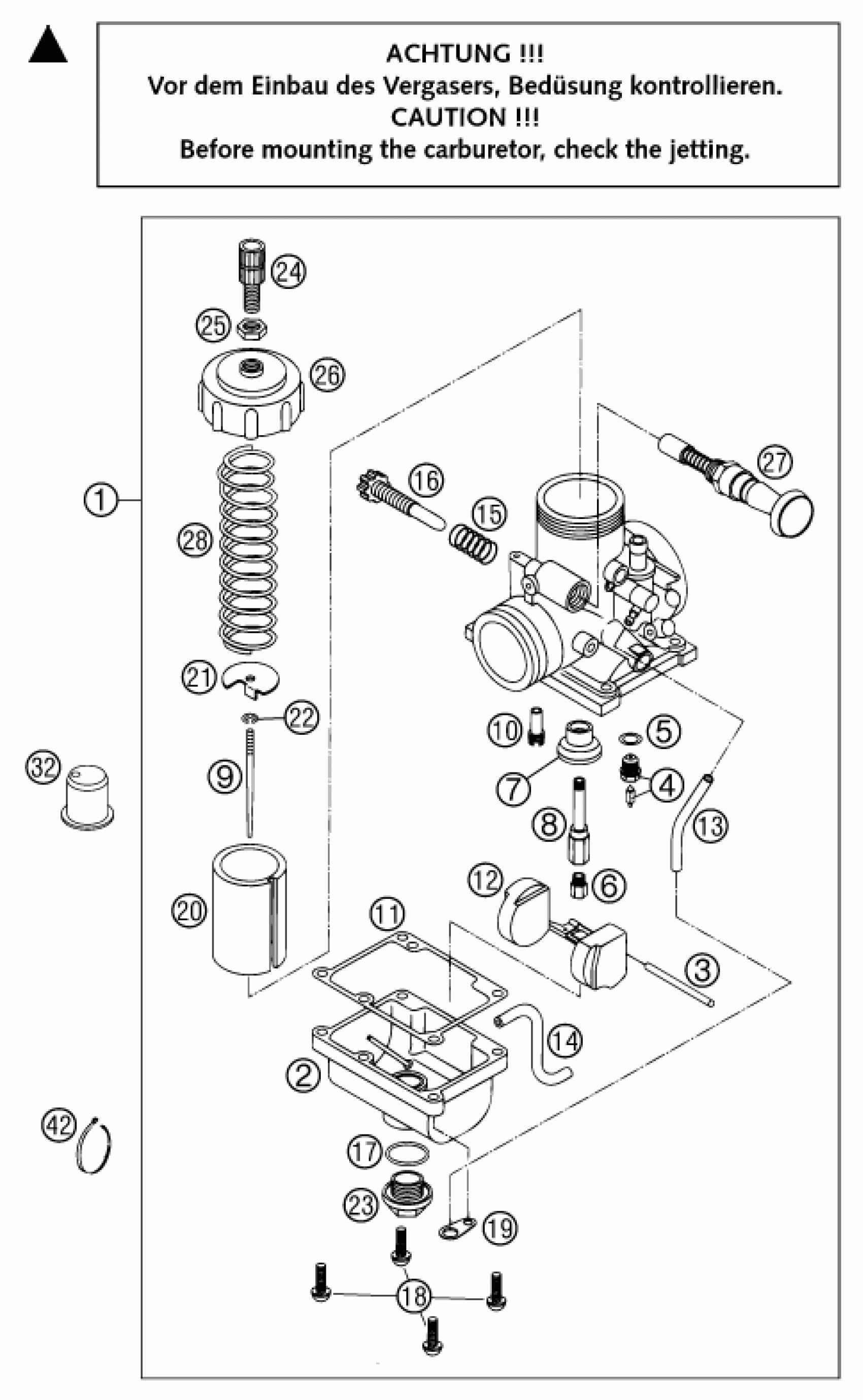

KTM 65 SX 2002 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR MIK. VM24-489 65S

46031001044

$204.15

2

FLOAT BODY 5-1 VM24

46031011000

$24.35

3

PIN 2,5X27

45031008000

$3.08

4

NEEDLE VALVE CPL. VM24

46031020000

$40.42

5

GASKET NEEDLE VALVE 9,1X12X0,5

46031018000

$2.05

6

MAIN JET 195

45031023195

Unavailable

6

MAIN JET 200

45031023200

$7.38

6

MAIN JET 205

45031023205

Unavailable

7

BUFFLE

46031074000

$2.61

8

NEEDLE JET N-8

46031021000

$13.44

9

JET NEEDLE MIKUNI 5I14

45031034200

$11.13

10

IDLING JET 30 MIKUNI

45031007030

$6.08

11

GASKET FLOAT BOWL

45031010100

$7.05

12

FLOAT VM24

46031009000

$34.96

13

PVC-HOSE 3X5MM

52031137001

Unavailable

14

PVC-HOSE 3X5MM

52031137001

Unavailable

15

SPRING MIKUNI

45031015100

$2.61

16

THROTTLE VALVE SCREW M6X30

46031019000

$3.14

17

O-RING 17,5X1,4

46031043000

$4.11

18

LENTIL HEAD SCREW M4X14 (SET)

45031014000

$4.97

19

BRACKET D7

54531612000

Unavailable

20

THROTTLE VALVE 2.0

46031035000

$42.65

21

HOLDING WASHER

46031032000

$4.11

22

SPRING

45031045000

$3.08

23

PLUG SCREW M16 WS=17

46031014000

$15.85

24

ADJUSTMENT SCREW M6X0,75

57031525000

$5.23

25

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

26

CARBURETOR COVER VM24

46031027000

$17.30

27

COLD STARTER KNOB CPL. VM24

46031048044

$39.92

28

THROTTLE VALVE SPRING VM24

46031030000

$7.40

32

WEIGHT F. THROTT.VALVE 65SX 02

46131090000

$11.07

42

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable
