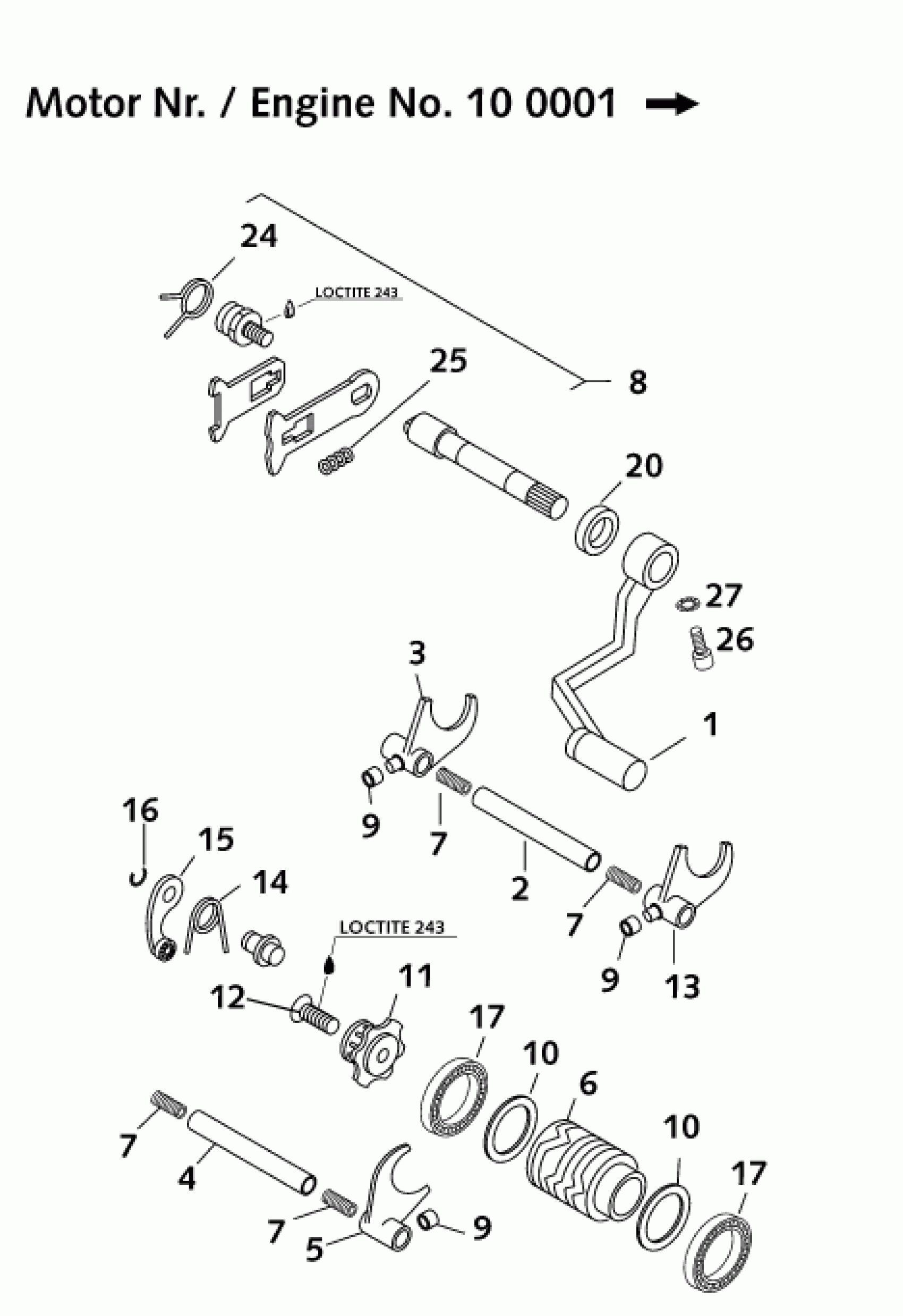

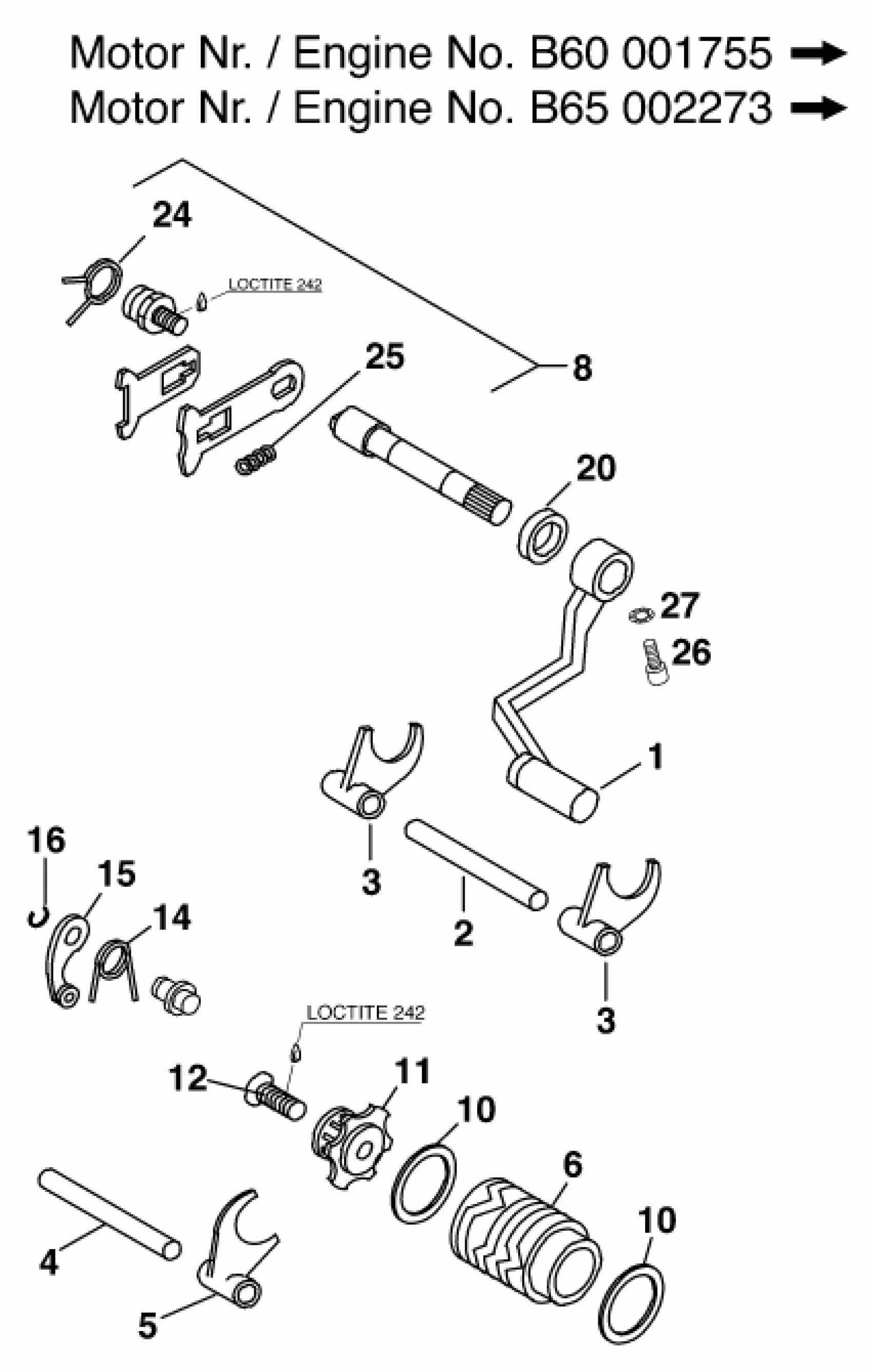

KTM 65 SX 2001 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT LEVER COL. 65 SX 2001

46034031100

$48.30

2

SHIFT RAIL 2001

46034020100

$8.04

3

SHIFT FORK COUNTERSHAFT R/S

46034002100

$52.36

4

SHIFT RAIL 10X72MM 2001

46034019100

$15.94

5

SHIFT FORK MAIN SHAFT 2001

46034001100

$51.20

6

SHIFT ROLLER 65 SX 2001

46034012300

$81.65

7

SPRING SHIFT RAIL 2001

46034019052

$3.08

8

SHIFT SHAFT CPL.

46034005044

$89.55

9

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

10

SPACER WASHER-SET 2001

46034091100

$2.61

11

SHIFT DRUM LOCATING 60/65 2000

46034015100

$73.53

12

FLAT HEAD SCREW DIN7991-M 6X30

0991060303

$2.05

13

SHIFT FORK COUNT. 2.3.GEAR

46034002200

$73.95

14

LOCKING LEVER SPRING 2001

46034023100

$2.05

15

LOCKING LEVER CPL.

46034024000

$36.24

16

* TAB WASHER DIN6799-RS10,0

0799100000

Unavailable

17

BALL BEARING 25X37X7

46034012352

Unavailable

20

SHAFT SEAL RING 12X20X5 B

0760122050

$8.03

24

RETURN SPRING

46034014000

$5.23

25

PRESSURE SPRING SLIDER PLATE

46034009000

$3.08

26

AH SCREW DIN0912-M 6X20

0912060203

$2.05

27

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49
