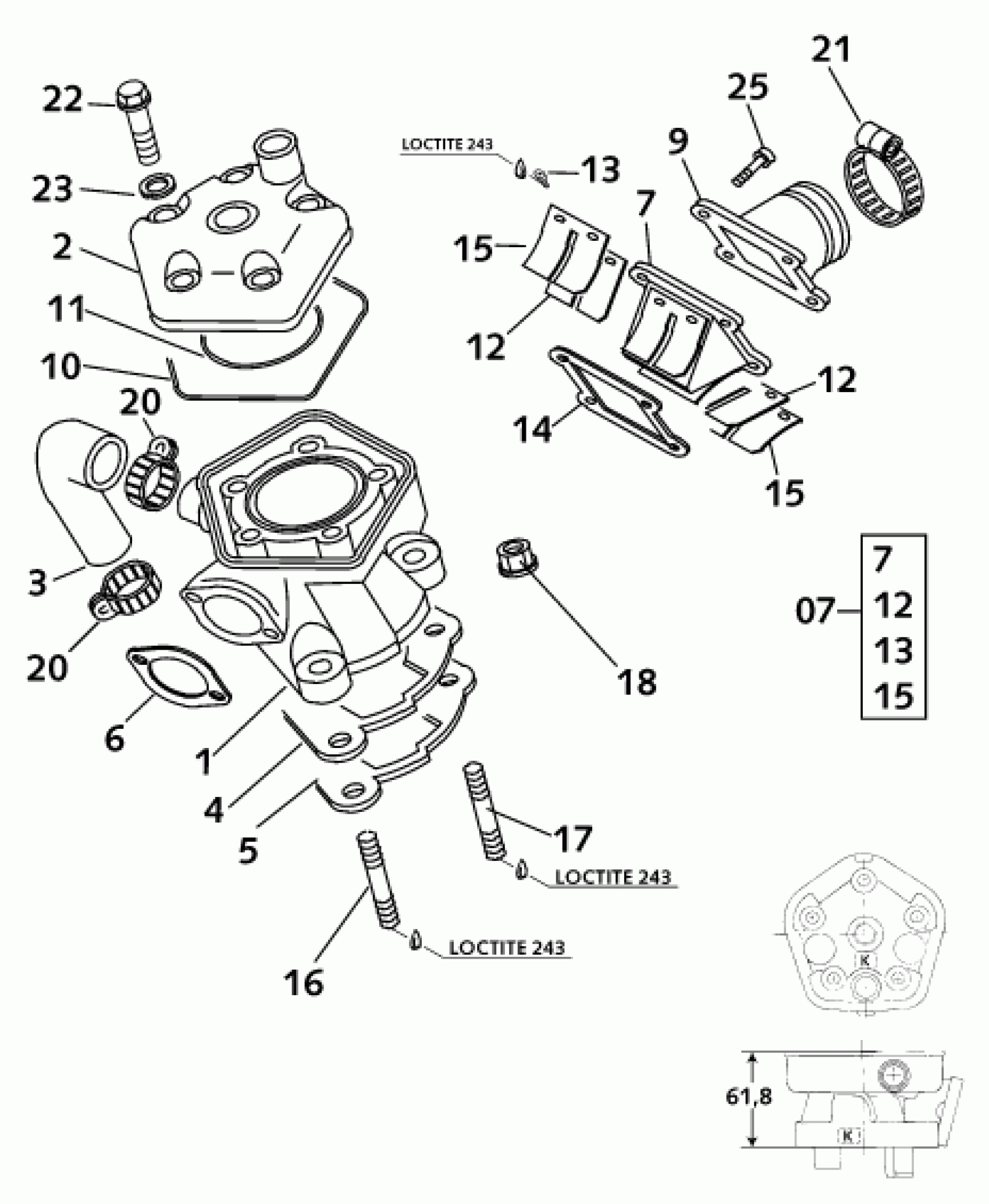

KTM 65 SX 2001 CYLINDER, CYLINDER HEAD Diagram

CYLINDER W.PISTON 45MM ''K''

46030005500

Unavailable

CYLINDERHEAD ''K'' 65CCM '99

46030006600

$176.53

PRE-FORM.HOSE CYL.-CLUTCH COV.

46035027000

$8.13

CYLINDER BASE GASKET 0,5 MM

46030035050

Unavailable

CYLINDER BASE GASKET 0,2 MM

46030035020

Unavailable

EXHAUST GASKET 60/65 CCM

46030046000

$7.28

MEMBRANE HOUSING CPL.65SX 2001

46030051144

$71.62

INTAKE FLANGE

46030050000

$68.65

O-RING 94,97X1,78

46030037000

$7.16

O-RING 53,7X1,78 VITON

46030036000

$9.06

MEMBRANE LOOSE 60/65 CCM

46030052000

$16.24

FLAT HEAD SCREW DIN7985-M 3X6

0985030063

$1.49

INTAKE VALVE GASKET

46030049000

$2.27

STUD M8X41

46030043000

$5.79

STUD M8X44

46030043100

$4.87

flanged nut M8 WS10

46030045000

$7.85

HOSE CLAMP GEMI 18-29

10001020000

$2.05

HOSE CLAMP 32-52MM D5

31001027000

$5.83

CYLINDERHEADSCR.HH-M7X33 2001

46030079000

$1.49

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

$1.49

AH SCREW DIN0912-M 6X20

0912060203

$2.05
