TANK, SEAT

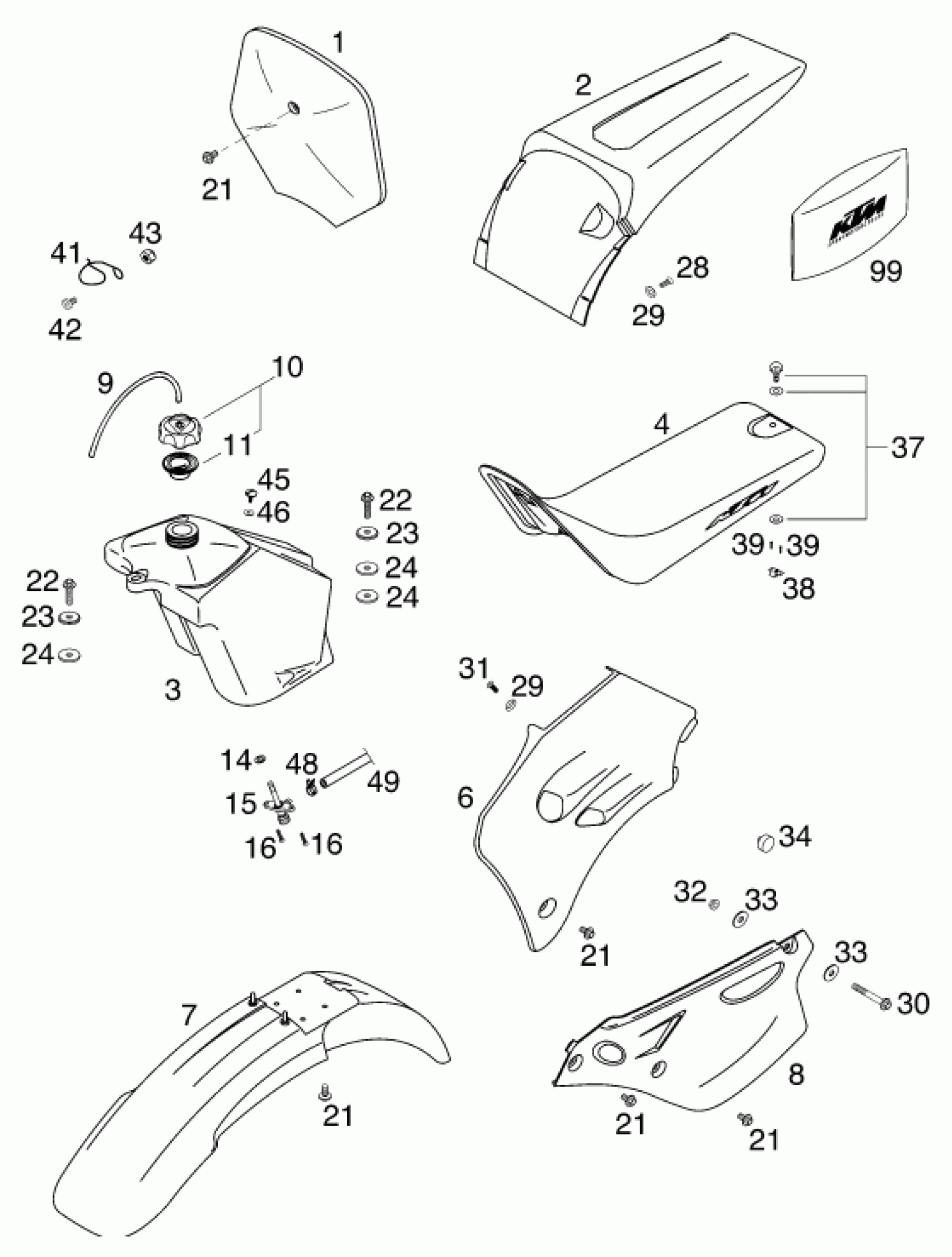

KTM 65 SX 2000 TANK, SEAT Diagram
#
Description
Price
0
SIDE COVER R/S SILVER 60/65'99
46008042100
$26.63
0
* SPOILER ORANGE R/S 60/65 '98
46008051000
Unavailable
1
START NUMBER PLATE 60/65 SX'98
46008007000
$18.92
2
* FENDER REAR SILVER 60/65
46008013000
Unavailable
3
FUEL TANK CPL. BLACK 60/65
46007013000
$129.98
4
SEAT BLACK/WHITE 60/65
46007040000
$71.26
6
SPOILER ORANGE L/S 60/65 '98
46008050000
$22.97
7
* FENDER FRONT ORANGE 60/65
46008010000
Unavailable
8
SIDE COVER L/S SILVER 60/65'99
46008041100
$26.63
9
PVC-HOSE 6X9 MM PER METER
31007107001
Unavailable
10
FILLER CAP CPL. SMALL
49007008044
$23.65
11
% GASKET FOR FILLER CAP
49007009000
Unavailable
14
O-RING 11X1,8 NBR 70
55007006200
$2.05
15
FUEL COCK CPL. SM. RALLYE'96
58507003000
$26.55
16
SPECIAL SCREW Z 5X16
0016050153
$1.49
21
HH COLLAR SCREW M 6X10 WS=8
0014060103
$3.08
22
HH COLLAR SCREW M 6X25 WS=8
0014060253
$2.05
23
BUSHING 7,5X12X28X7,8 '96
54605069000
$6.07
24
INSOLATE WASHER 12X28X3
51005067100
$2.05
28
SPECIAL SCREW Z 5,5X16
0016055163
$1.49
29
WASHER 6MM
40006006000
$1.49
30
HH COLLAR SCREW M 6X45 WS=8
0015060453
$2.05
31
FLAT HEAD SCR. DIN7991-M 6X16
0991060163
$2.05
32
Self locking nut M6 - 10
56509064100
$2.05
33
Washer DIN9021-A 6.4
0021060003
$2.05
34
RUBBER BUFFER
54308042000
$3.08
37
Quick lock
45007040051
$20.19
38
Past mount quick lock
45007040050
$4.11
39
DUMMY RIVET 3,2X10 ALU
0011321000
$1.49
41
GUIDE FOR BRAKE HOSE
58011008000
$3.88
42
OVAL HEAD SCR. DIN7985-M 5X10
0985050103
$1.49
43
Self locking nut DIN 985 M5
0985050003
$2.05
45
OVAL HEAD SCREW M6X15
58007044000
$4.35
46
WASHER DIN0125-A 6,4
0125060003
$1.49
48
CLAMP YDNAC 10128 12MM
58031005000
$3.08
49
FUEL HOSE VITON 6X1,5 PER/M
58307016001
Unavailable
99
TOOL SET 50 MINI, 60/65 SX
45029099000
$30.45
