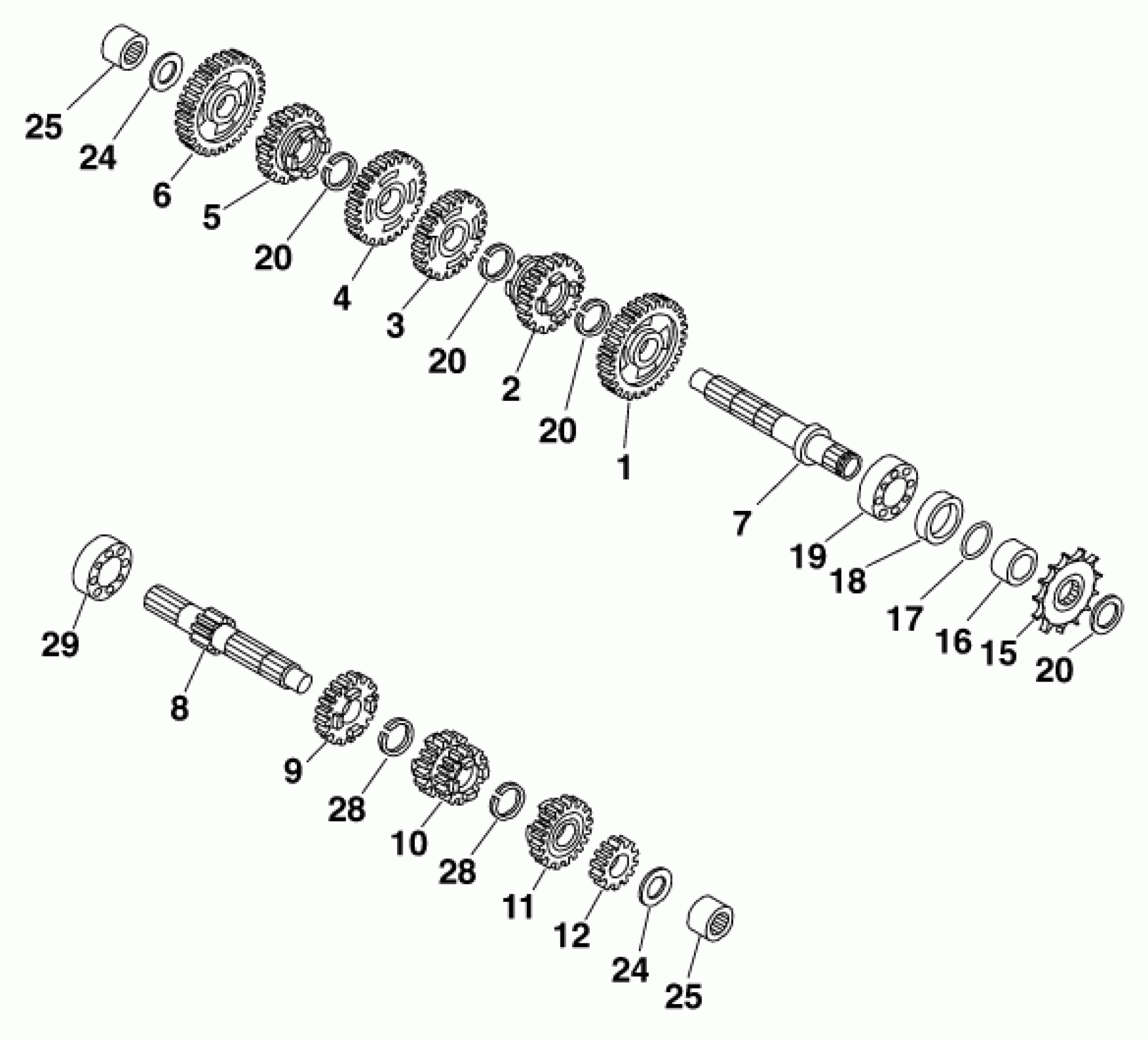

KTM 65 SX <1998 TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

IDLER GEAR 2ND GEAR 34-T

46033011000

$91.29

2

SLIDING GEAR 6TH GEAR 26-T

46033012000

$78.81

3

IDLER GEAR 3RD GEAR 31-T

46033013000

Unavailable

4

IDLER GEAR 4TH GEAR 30-T

46033014000

Unavailable

5

SLIDING GEAR 5TH GEAR 28-T

46033015000

$67.40

6

IDLER GEAR 1ST GEAR 37-T

46033016000

$93.45

7

COUNTER SHAFT

46033002000

$104.72

8

MAIN SHAFT 13-T

46033001000

$142.63

9

IDLER GEAR 5TH 23-T

46033007000

Unavailable

10

SLIDING GEAR 3RD/4TH - 21/18

46033008000

Unavailable

11

IDLER GEAR 6TH GEAR 24-T

46033009000

$54.50

12

SOLID GEAR 2ND GEAR 16-T

46033010000

$30.85

15

SPROCKET 12-T 60/65 '98

46033029012

$18.82

15

SPROCKET 13-T 60/65

46033029013

Unavailable

16

DISTANCE BUSHING SPROCKET

46033030000

$24.37

17

O-RING 18,77X1,78

46033031000

$1.49

18

SHAFT SEAL RING 26X35X6

0760263560

$6.26

19

Grooved ball bearing 20X42X12

46033028000

$38.42

20

CIRCLIP AS20X1,75

49033091000

$4.11

24

STOP DISK 12,1X25X1

49033013000

$4.11

25

NEEDLE BEARING NK12 12X19X12

46033026000

$52.07

28

CIRCLIP WS=17X1,2

46033022000

$1.49

29

GROOVED BALL BEAR.SKF98203/C3

46033025000

$20.84
