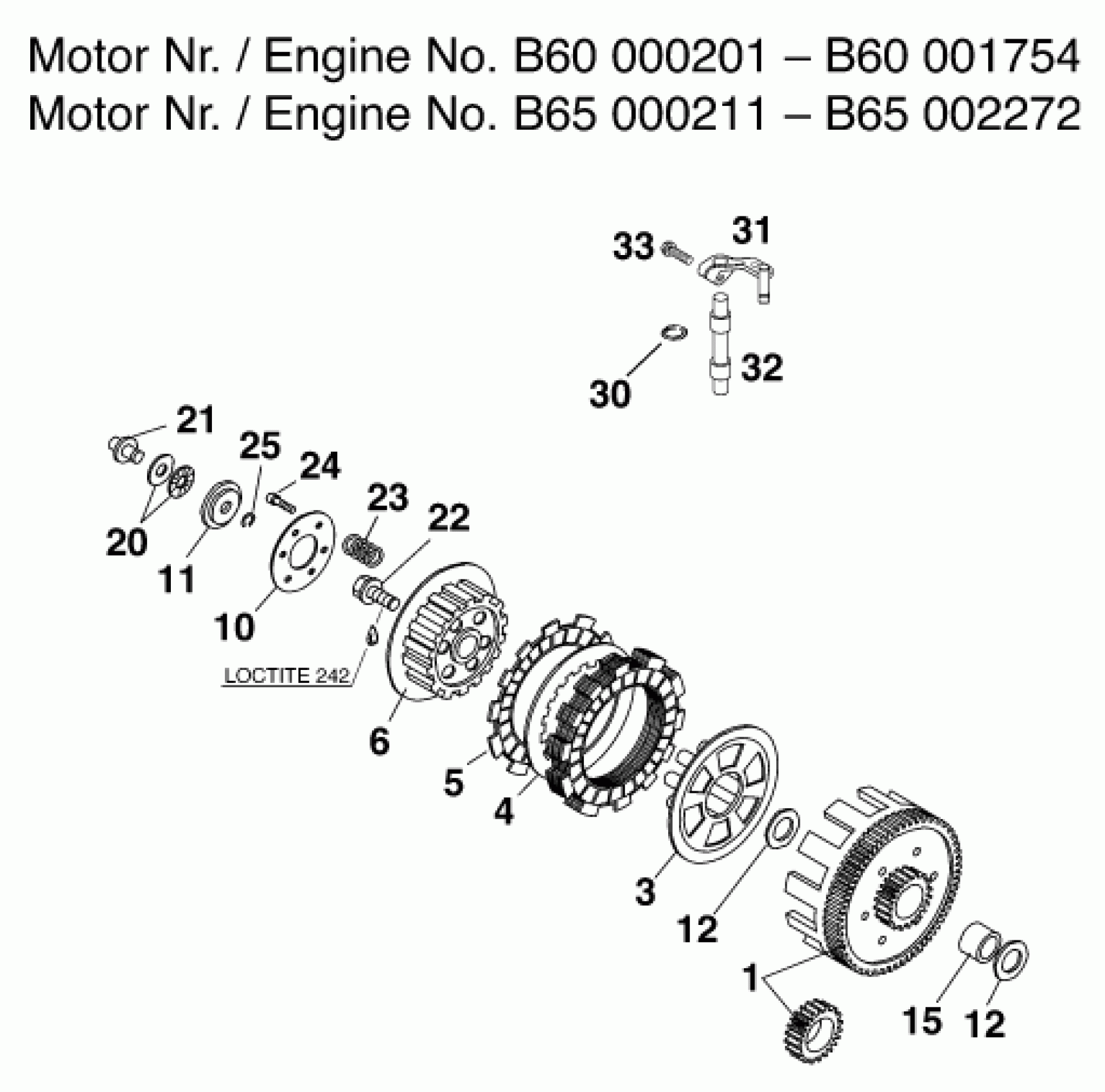

KTM 65 SX <1998> CLUTCH Diagram

PRIM.DR.W.CLUTCH HUB 23:75 '99

46032000144

$393.91

PRESSURE CAP 60/65 CCM '98

46032003000

$76.10

INTERMEDIATE DISK STEEL

46032010000

$12.33

LINING DISK

46032011000

$13.40

INNER CLUTCH HUB 60/65 CCM '98

46032002000

$95.92

SPRING RETAINER 25X63,5X2

46032006000

$28.70

CARRIER FOR AXIAL BEARING

46032008000

$6.13

STOP DISK 17,2X30X1,5

49032012000

$3.48

INNER RING 22X17X20,5

46032015000

$30.05

AXIAL BEARING 6X19X2

46032056000

$24.55

PRESSURE PIECE

46032054000

$15.76

HH COLLAR SCREW M10X20

46032019000

$5.70

CLUTCH SPRING

46032005000

Unavailable

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

CIRCLIP DIN0471-6X0,7

0471006007

$1.49

O-RING 7,66X1,78

46032051000

$1.60

* CLUTCH RELEASE LEVER CPL. 99

46032048000

Unavailable

*DISENGAGING SHAFT LOOSE '99

46032049100

Unavailable

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08
