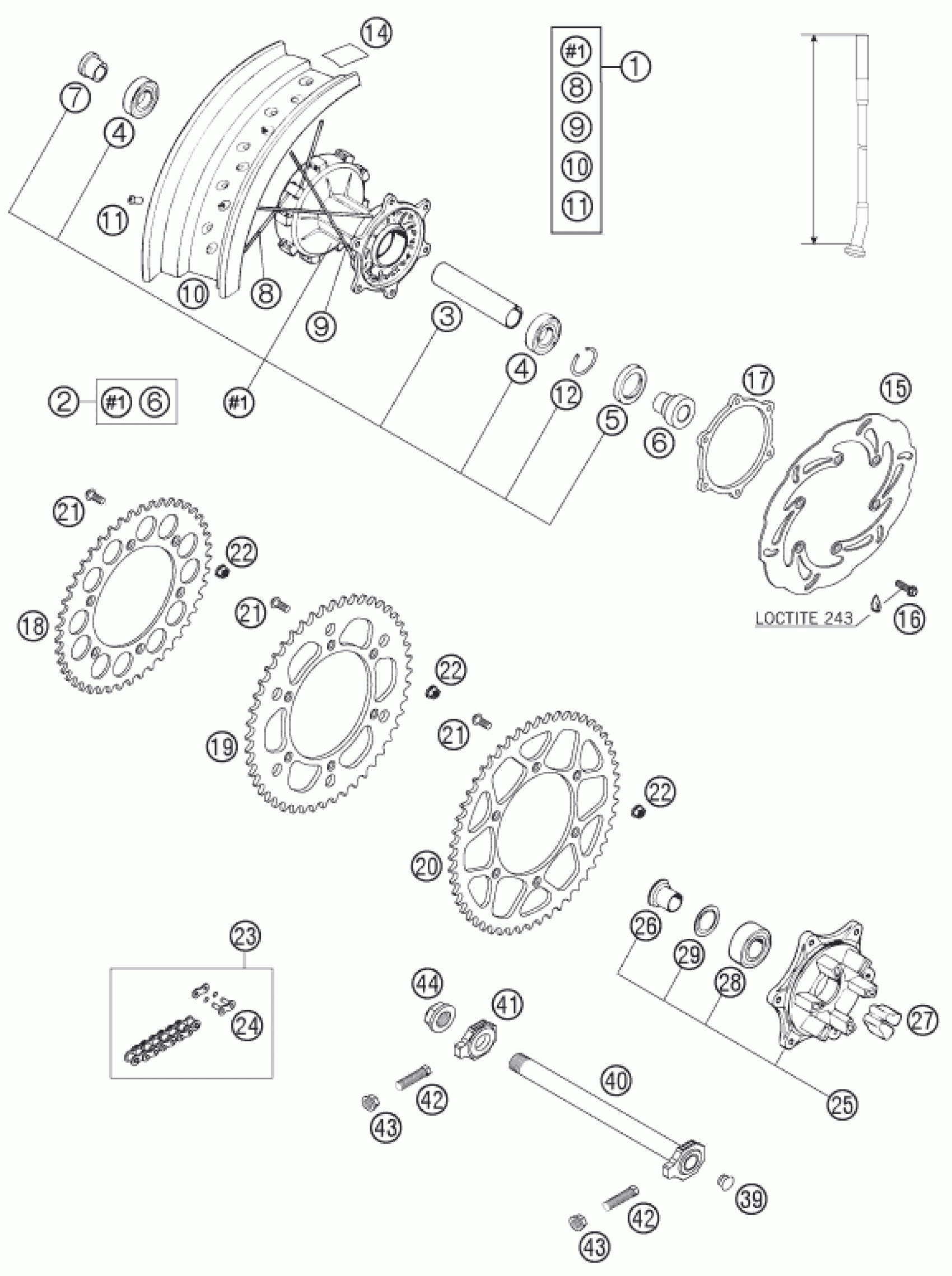

KTM 640 LC4 SUPERMOTO PRESTIGE 05 <2005> REAR WHEEL Diagram

#

Description
Price

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

SHAFT SEAL RING 32X52X7 B

0760325272

Unavailable

6

BUSHING FOR REAR WHEEL SM 03

58410017000

Unavailable

7

BUSHING FOR REAR DAMPED HUB

54610416300

Unavailable

8

SPOKE M5X201-16G 17''

58310171201

Unavailable

9

SPOKE M5X188-26G 17''

58310071188

Unavailable

10

REAR RIM 5X17'' BLACK

5841007010030

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

12

CIRCLIP DIN0472-52X2

0472052200

Unavailable

14

rim tape 17"

58309073000

Unavailable

15

BRAKE DISC REAR D=220MM 2000

58310060100

Unavailable

16

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

17

DISTANCE RING F. BRAKE DISC

58410061000

Unavailable

18

REAR SPROCKET 38-T

58310051038

Unavailable

18

REAR SPROCKET 40-T

58310151040

Unavailable

18

REAR SPROCKET 42-T

58310051042

Unavailable

18

REAR SPROCKET 45-T

58310151045

Unavailable

19

REAR SPROCKET 48-T

58310151048

Unavailable

20

REAR SPROCKET 50-T

58310151050

Unavailable

20

REAR SPROCKET 52-T

58310151052

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

CHAIN Z-RING 5/8X1/4''

50310800118

Unavailable

24

CONNECTING LINK F. 50310800118

50310366000

Unavailable

25

SPROCKET SUPPORT CPL. 03

58310050144

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

Unavailable

27

Rubber damping block 91

54610459000

Unavailable

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

Unavailable

29

SEAL WASHER 3205 AV

54610018000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WHEEL SPINDLE RE.CPL.L=270M 03

58410085044

Unavailable

41

Chain tension adjuster, right

50310084000

Unavailable

42

SPEC. SCREW M10X1,25X40 WS=10

50304040000

Unavailable

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable

1

REAR WHEEL 5,00X17'' BLACK

5841000144430

Unavailable

2

REAR WHEEL HUB CPL. SM 03

58410010144

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

Unavailable
