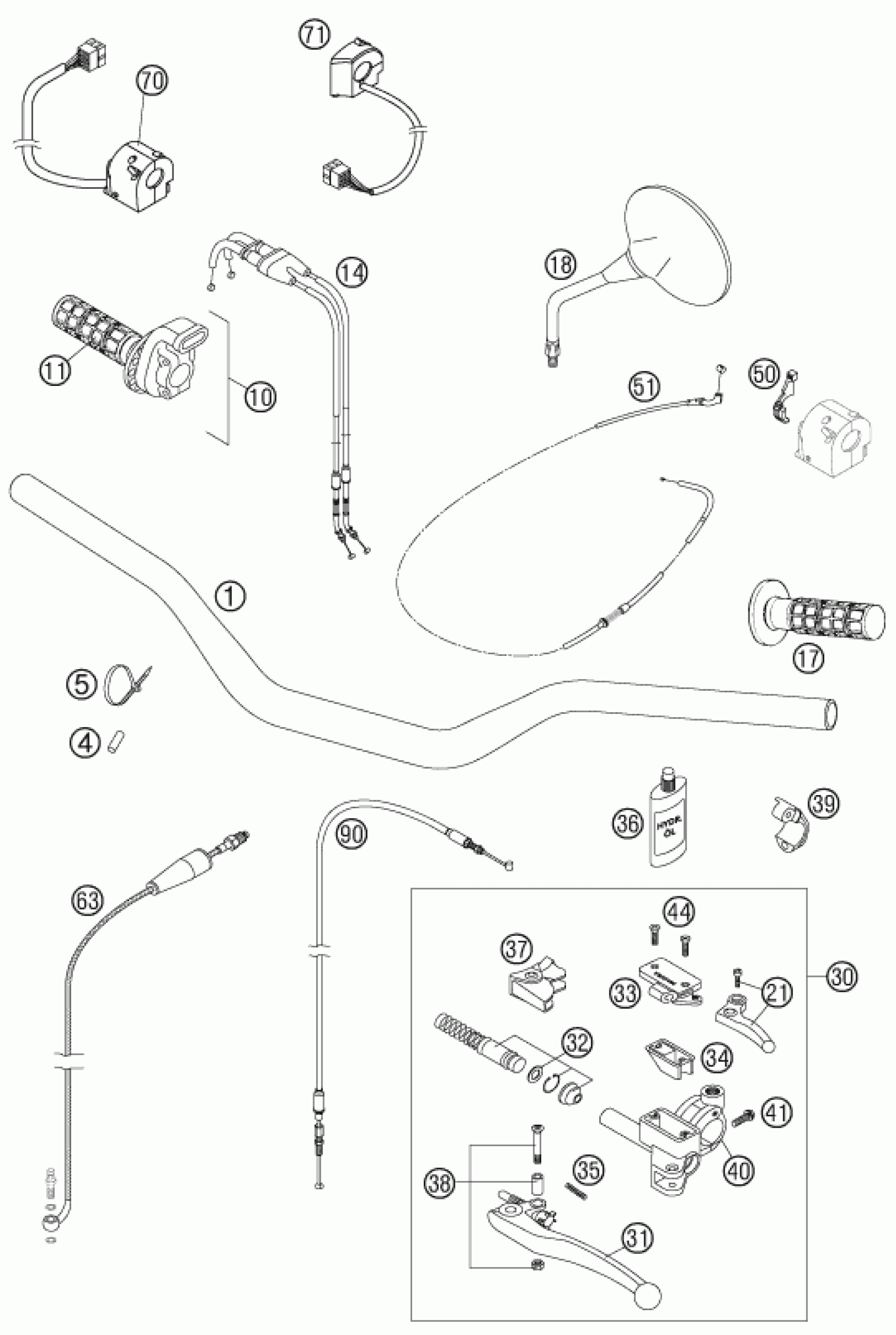

KTM 640 LC4 SUPERMOTO BLUE 2005 HANDLEBAR, CONTROLS Diagram

THROTT.CABLE ''OPEN-CLOSE'' 20

58402091600

$94.89

FIXED GRIP DOMINO '93

58302052000

$27.76

Rear view mirror, left/right

58412040100

$65.63

LEVER CPL. RACING 2000

59002047000

$23.00

CLAMP WITH PIN 2000

50302030150

Unavailable

CLAMP MIRROR WITH PIN

59002044000

$39.26

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

CHOKE LEVER LC4 2002

58402050000

$8.01

HANDLEBAR RENTHAL 02

58402001100

Unavailable

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

Cable tie 200/4.6mm black

44011076200

$1.49

THROTTLE GRIP CPL. 640LC4 2000

58402010600

$44.98

TWIST GRIP COVER DOMINO

58302003000

$27.76

CHOKE CABLE F. MIKUNI LC4 02

58402095100

$27.76

CLUTCH PIPE LC4/SXC/SM 03

58432063000

$98.91

DECOMPR. CABLE LC4 03

58402094000

$39.80

HEAD LIGHT SWITCH AD LC4 02

58411070100

$82.52

START-STOP SWITCH AD 03

58411074200

Unavailable

MASTER CYLINDER CPL. LC4 03

58402030000

$258.13

CLUTCH LEVER LONG CPL. 2003

60002031000

$64.69

REP.SET PISTON MAGURA D=10.5

50302032000

$70.77

COVER HYD.CLUTCH RACING 2000

59002033000

$41.51

RUBBER FOR RESERVOIR '98

50302034000

$18.97

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46
