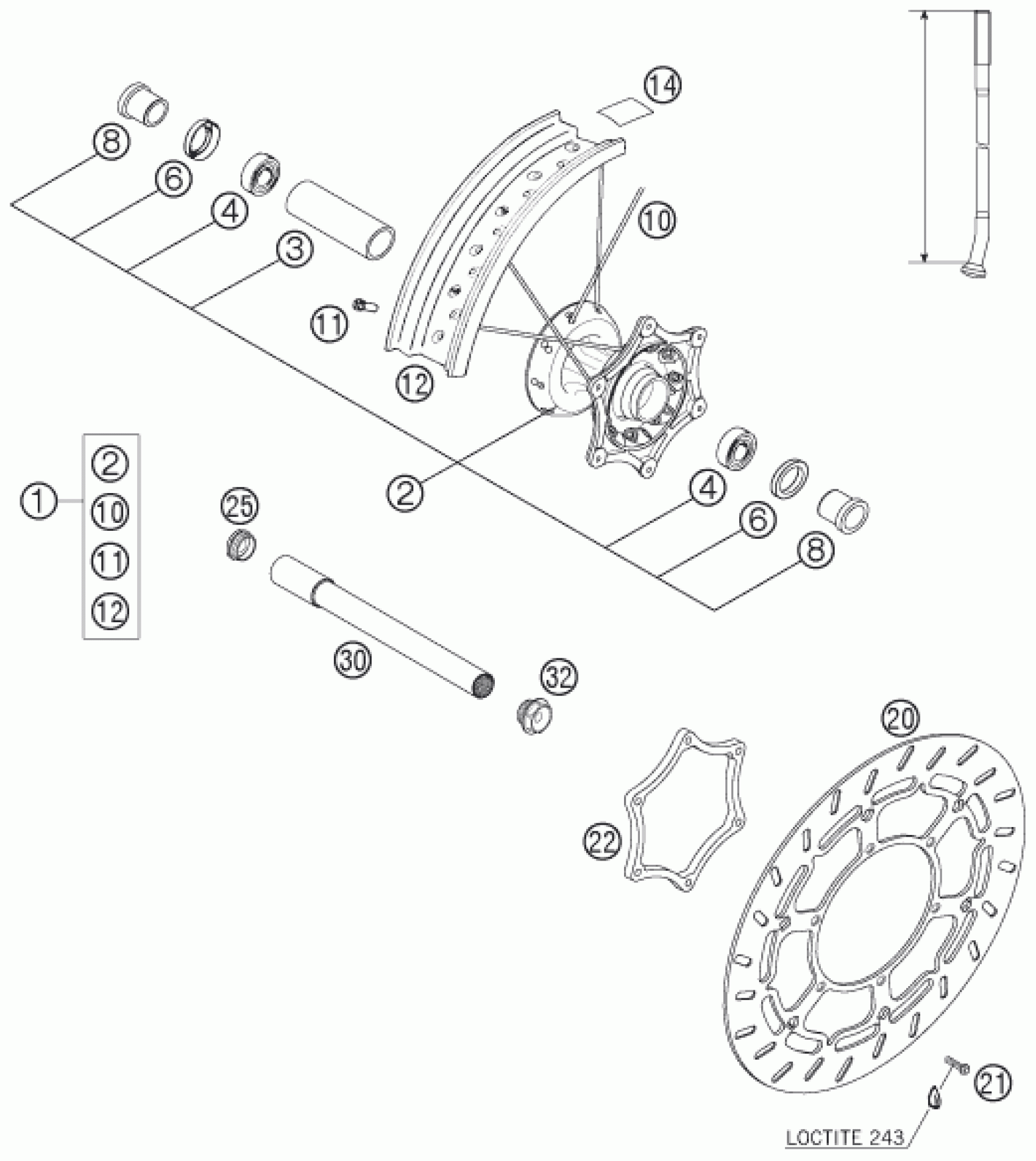

KTM 640 LC4 SUPERMOTO BLUE 2005 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL 3,5X17'' 26MM

58409001644

Unavailable

2

FRONT HUB CPL. SX SILVER 03

5480901004491

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

8

SPACER BUSHING F. FR. WHEEL

54809012000

Unavailable

10

SPOKE M4,5X175-15G 17'' DDE

50309071175

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

12

FRONT RIM 3,5X17''

58409070000

Unavailable

14

rim tape 17"

58309073000

Unavailable

20

BRAKE DISK FRONT D=320MM 2002

58209060000

Unavailable

21

SPECIAL SCREW M6X23 WS=8 10.9

59009062023

Unavailable

22

BRAKE DISC SUPPORT 8.5 MM

58409161000

Unavailable

25

PLUG BUSHING WS=27 03

54809081050

Unavailable

30

WHEEL SPINDEL FRO.D=26MM SM 03

58409081000

Unavailable

32

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable
