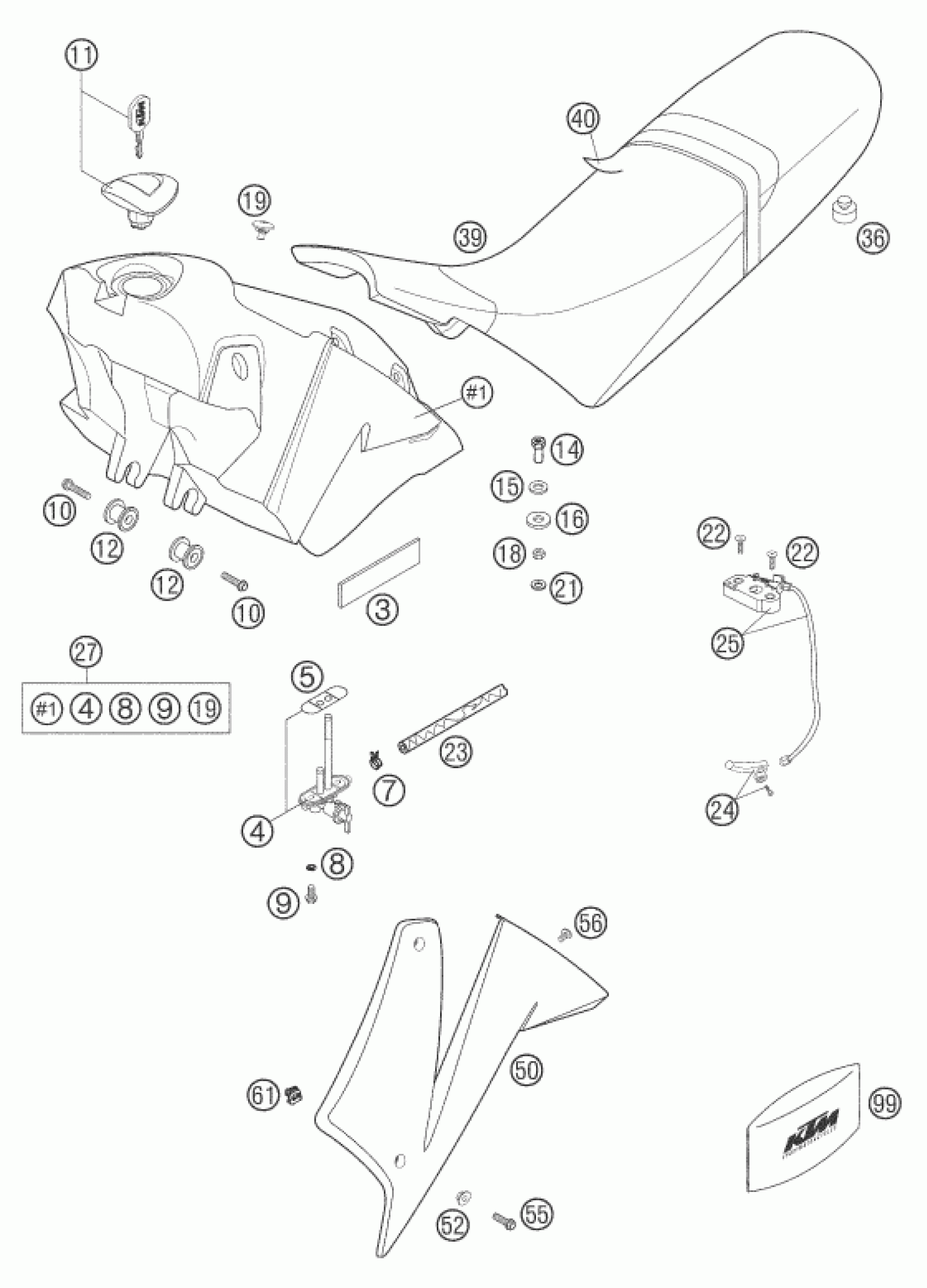

KTM 640 LC4 SUPERMOTO BLACK 2005 TANK, SEAT Diagram

#

Description
Price

3

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

4

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

$69.37

5

GASKET FUEL COCK MIKUNI

58307106100

$6.82

7

CLAMP YDNAC 10128 12MM

58031005000

$3.08

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

11

TANK PLUG LC4 USA '99

58407008100

$112.94

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

14

SPECIAL NUT M8

58307014000

$6.26

15

WASHER 10,5 X 21 X 3

31004001100

$2.05

16

INSOLATE WASHER 12X28X3

51005067100

$2.05

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

21

washer DIN 125 A -8.4

0125080003

$1.49

22

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

$1.49

23

HOSE ID 7,5 PER METER

54435024001

Unavailable

24

SEAT LOCK LEVER CPL. 05

58607051000

$8.89

25

SEAT LOCK CPL. 05

58607050044

$29.76

27

FUEL TANK 11LI.CPL.LC4 BLACK

58407013300

$383.45

36

PLUG FOR SEAT

58407040060

$3.08

39

SEAT SM 05

58607040000

$123.50

40

SEAT COVER SM 05

58607040050

Unavailable

50

SPOILER L/S SM BLACK 05

5840805000030A

$120.47

50

SPOILER R/S SM BLACK 05

5840805100030A

$120.47

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

HH COLLAR SCREW M 6X13 WS=8

0014060133

$3.08

61

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

99

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable
