REAR WHEEL

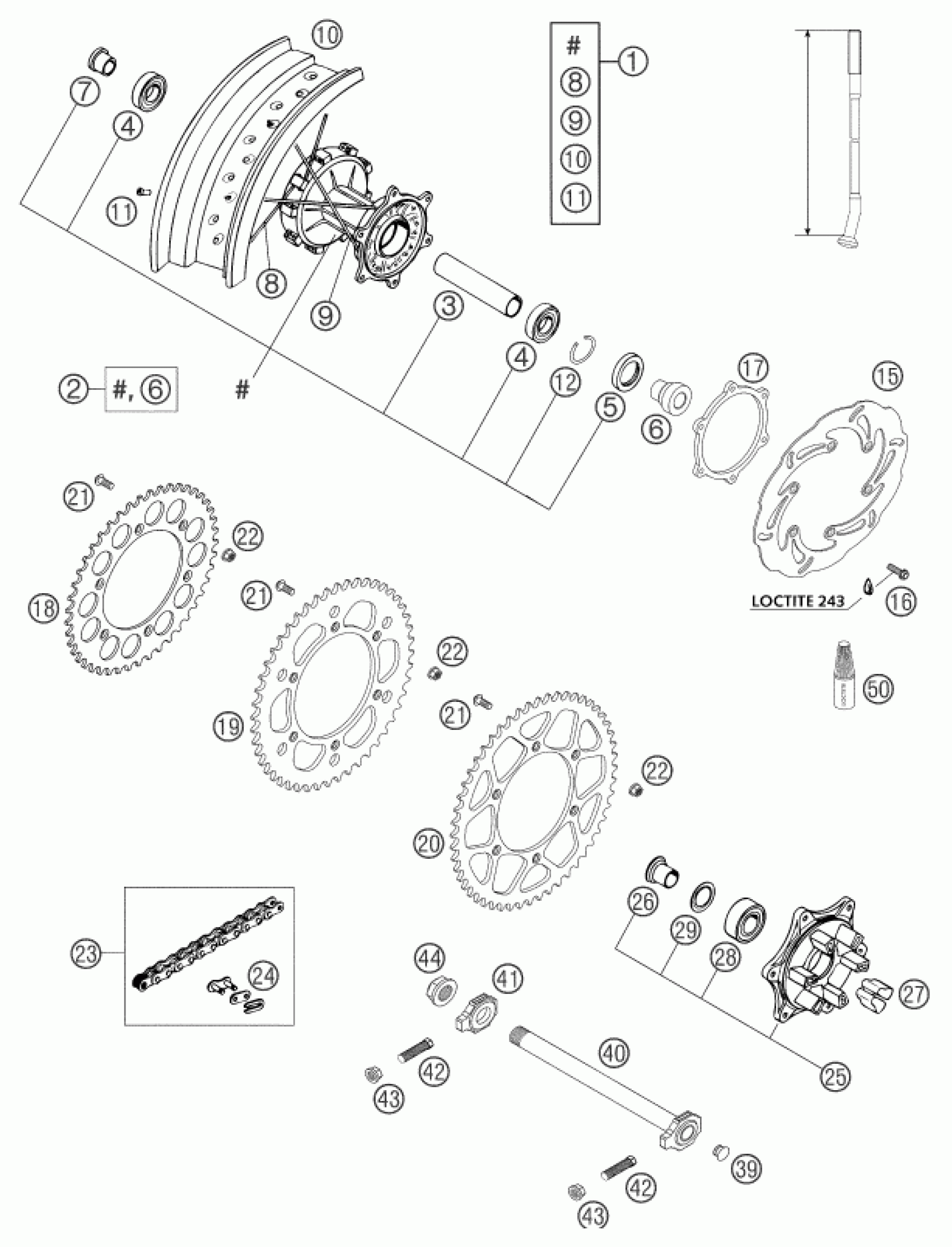

KTM 640 LC4 SUPERMOTO 2003 REAR WHEEL Diagram
#
1
REAR WHEEL 5,00X17''
58410001444
$448.19
2
REAR WHEEL HUB CPL. SM 03
58410010144
$205.09
3
BUSHING SPACER TUBE L=98,3MM
58410011000
$14.58
4
Grooved ball bear. 6205-2RSHC3
0625062052
$30.85
5
SHAFT SEAL RING 32X52X7 B
0760325272
$16.54
6
BUSHING FOR REAR WHEEL SM 03
58410017000
$20.43
7
BUSHING FOR REAR DAMPED HUB
54610416300
$20.09
8
SPOKE M5X199-16G 17''
58310171100
$3.48
9
SPOKE M5X186-26G 17''
58310071100
$3.48
10
REAR RIM 5X17''
58410070100
Unavailable
11
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
$2.05
12
CIRCLIP DIN0472-52X2
0472052200
$3.08
15
BRAKE DISC REAR D=220MM 2000
58310060100
$186.06
16
SPECIAL SCREW M6X19 WS=8 10.9
59009062019
$2.05
17
DISTANCE RING F. BRAKE DISC
58410061000
$81.92
18
REAR SPROCKET 38-T
58310051038
Unavailable
18
REAR SPROCKET 40-T
58310151040
Unavailable
18
REAR SPROCKET 42-T
58310051042
$64.97
18
REAR SPROCKET 45-T
58310151045
Unavailable
19
REAR SPROCKET 48-T
58310151048
Unavailable
20
REAR SPROCKET 50-T
58310151050
Unavailable
20
REAR SPROCKET 52-T
58310151052
Unavailable
21
SPROCKET SCREW-AH M8X26 WS=6
54510052100
$3.08
22
Self locking nut M8 10.9
54310086200
$3.08
23
% X-RING CHAIN 5/8X1/4" +M.LIN
50310265114
Unavailable
23
% X-RING CHAIN 5/8X1/4" +M.LIN
50310265118
Unavailable
24
CONNECTING LINK
50310266000
Unavailable
25
SPROCKET SUPPORT CPL. 03
58310050144
$129.85
26
BUSH. F.SPROCKETSUPPORT L=25MM
54610417300
$17.38
27
Rubber damping block 91
54610459000
$8.03
28
GR. BALL BEARING 3205B-2RSRTNG
0625032057
$74.67
29
SEAL WASHER 3205 AV
54610018000
$9.34
39
Plug SFL16
50210086000
$3.08
40
WHEEL SPINDLE RE.CPL.L=270M 03
58410085044
$65.70
41
Chain tension adjuster, right
50310084000
$20.66
42
SPEC. SCREW M10X1,25X40 WS=10
50304040000
$5.23
43
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
44
Hexagon nut M20x1.5
50310099000
$11.30
50
LOCTITE 243 BLUE 5 ML
6899785
$28.04
