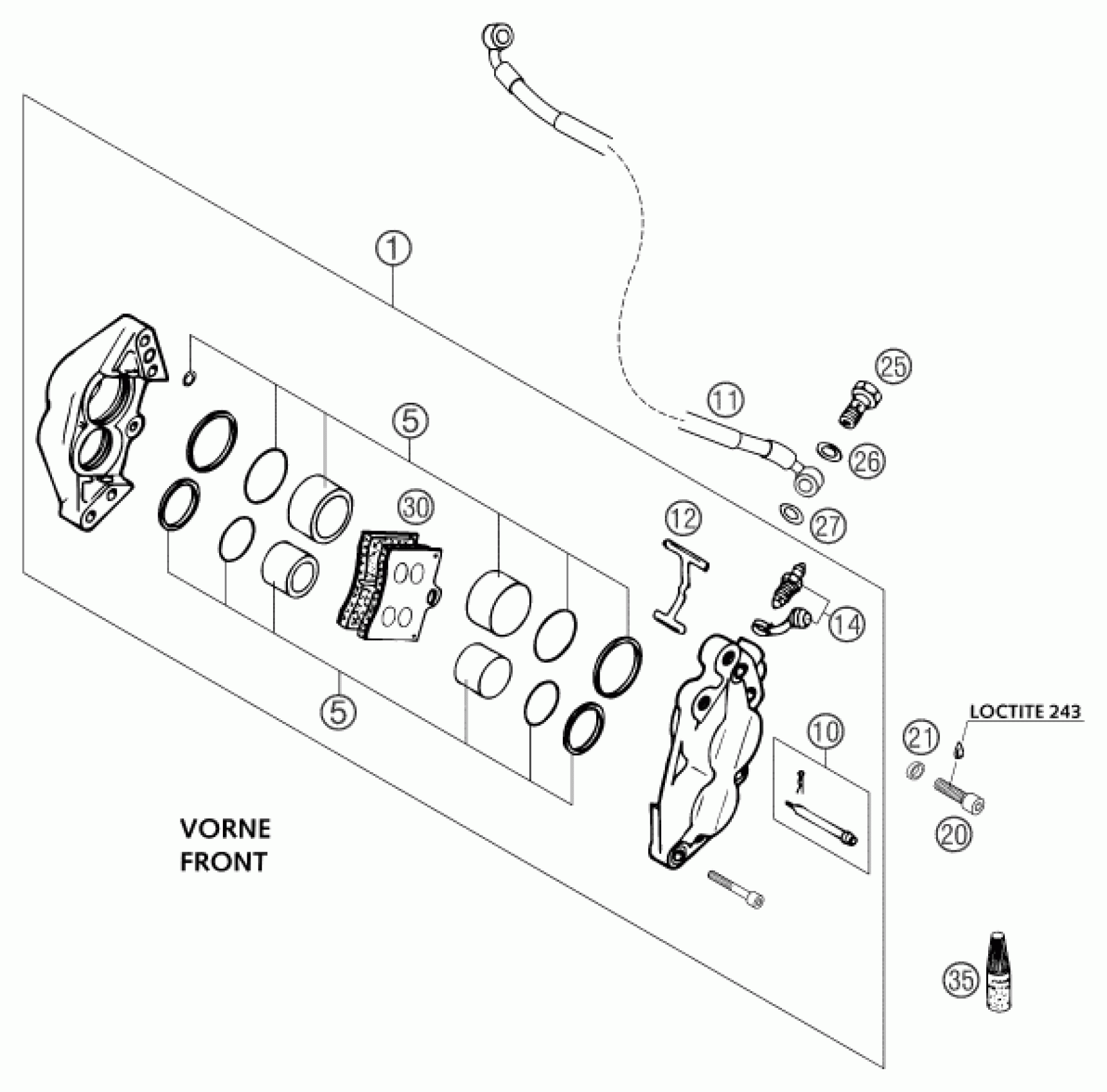

KTM 640 LC4 SUPERMOTO 2003 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

BRAKE CALIPER FRONT CPL. SM 03

58413015344

Unavailable

5

* REPAIR KIT 4 PISTON+GASKET

58313205000

Unavailable

10

BOLT SET

58313210000

Unavailable

11

BRAKE HOSE FRONT SM 2003

58413011300

Unavailable

12

RETAINING SPRING

58313211000

Unavailable

14

BLEEDER SCREW M10X1

54513214000

Unavailable

20

AH SCREW DIN0912-M10X30

0912100303

Unavailable

21

BRAKE CAL. SPACER SLEEVE SM 03

58413021000

Unavailable

25

HOLLOW SCREW M10X1X19

50213025000

Unavailable

26

CU-SEAL RING DIN7603-10X16X1,5

42013026000

Unavailable

27

CU-SEAL RING DIN7603-10X16X1

42013226000

Unavailable

30

BRAKE P.SET FR. ID450

58413130000

Unavailable

35

LOCTITE 243 BLUE 5 ML

6899785

Unavailable
