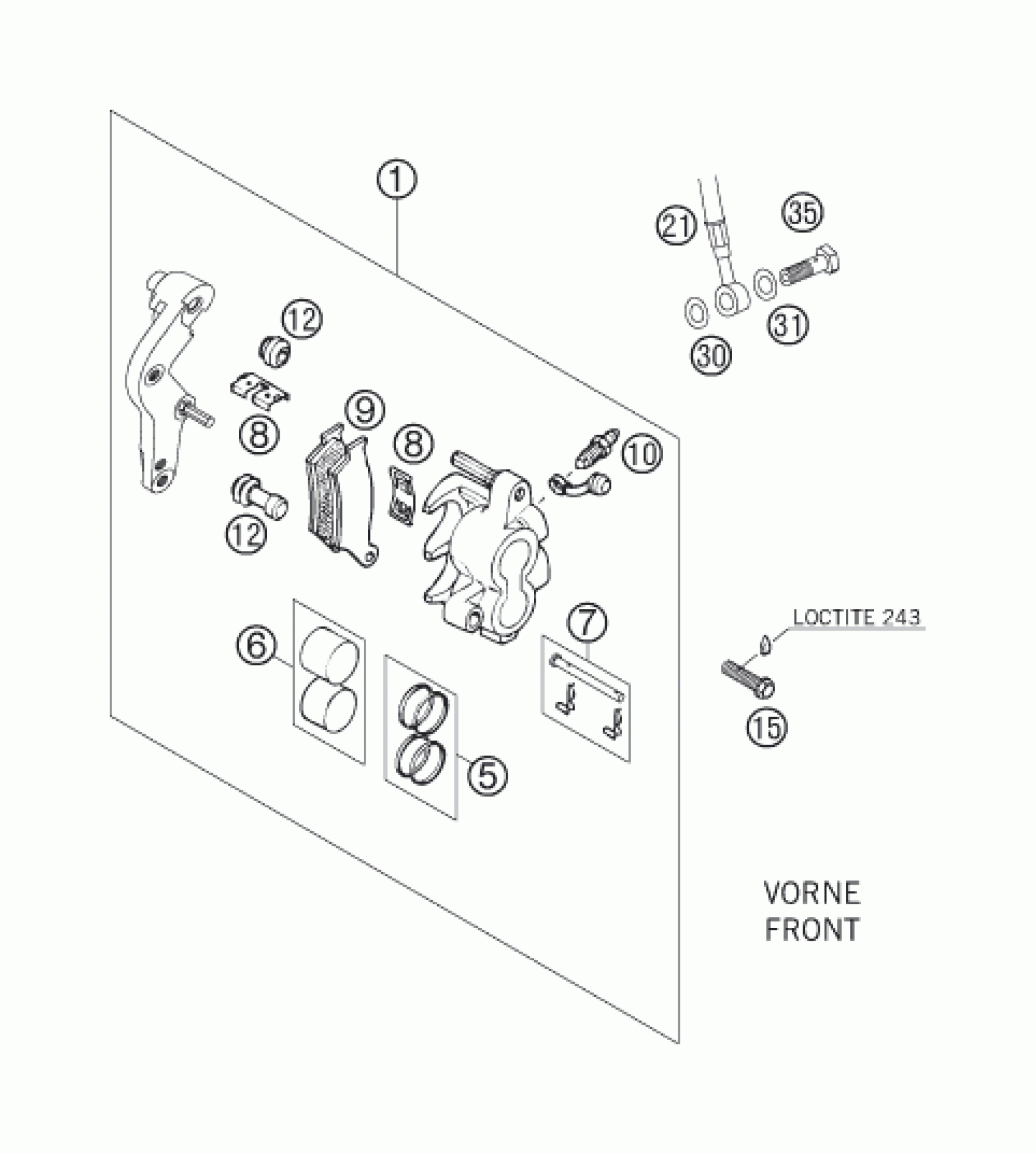

KTM 640 LC4 ENDURO ORANGE 2006 FRONT BRAKE CALIPER Diagram

#

Description

Price

21

BRAKE HOSE FRONT LC4 2003

58413011400

Unavailable

1

BRAKECAL.FRONT CPL. 300MM 2000

58413015144

$146.65

5

REPAIR KIT 28MM

54613205000

$20.19

6

REPAIR KIT PISTON 28MM

54613206000

$46.18

7

BOLT CPL. 6X56

54613210100

$20.09

8

RETAINING PLATE SET BREMBO

54613212000

$21.50

9

BRKP.SET FR.TOSHIBATT2701HHB

50313030100

$98.17

15

HH COLLAR SCR. M8X35 WS10

0015080350

$3.08

10

BLEEDER SCREW WITH CAP

60013020000

$7.38

12

CUP SET SHORT

54613218000

$23.55

30

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

31

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

35

HOLLOW SCREW M10X1X19

50213025000

$6.54
