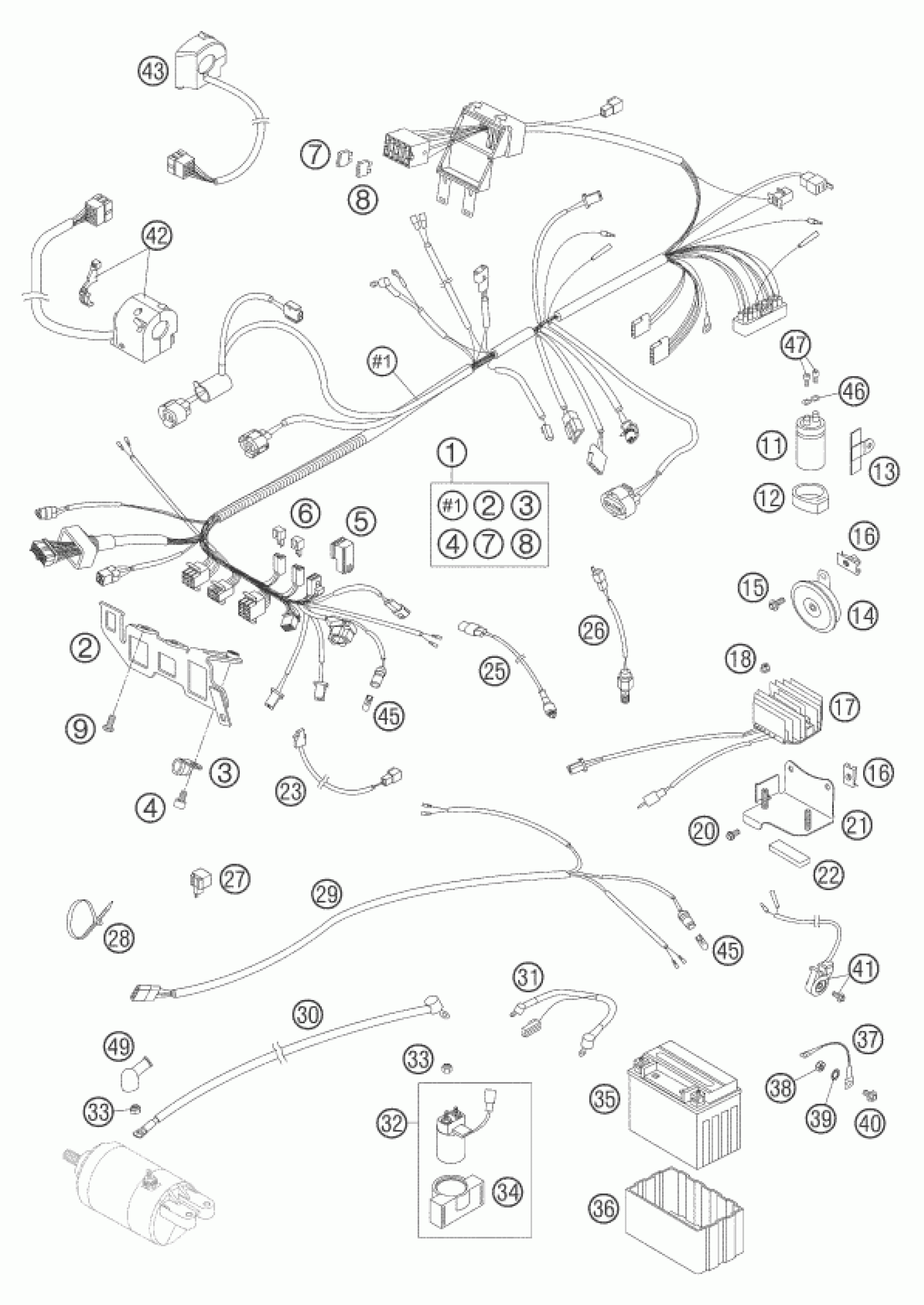

KTM 640 LC4 ENDURO ORANGE 2005 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS LC4 03

58411175400

Unavailable

2

SUPPORT BRACKET LC4 03

58411083200

Unavailable

3

CLAMP RSGU 15/12

49007439000

$5.23

4

SHCS DIN 912 M5x8

0912050083

$1.49

5

STARTER RELAY '96

58411057000

$22.82

6

DIODE S3H-15 97

58411096100

$9.81

7

Plug-in fuse, big 10A

58011109110

Unavailable

8

Plug-in fuse, big 20A

58011109120

Unavailable

9

SCREW FOR PLASTIC 50X12

0016050121

$2.05

11

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

12

CAPACITOR BRACKET

54511048000

$4.33

13

BRACKET FOR CAPACITOR

54611448000

Unavailable

14

DC HORN L.E.B. 03

50311060100

$32.44

15

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

16

clip nut M6

54603048100

$4.11

17

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

18

Self locking nut M6 - 10

56509064100

$2.05

20

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

21

BATTERY BRACKET 03

58411055200

Unavailable

22

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

23

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

25

CLUTCH SWITCH 03

58411049100

$54.32

26

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

27

FLASHER UNIT 97

44611207200

$49.83

28

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

28

Cable tie 200/4.6mm black

44011076200

Unavailable

28

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

29

WIRING HARNESS REAR 03

58411176300

$12.54

30

STARTERCABLE 700 MM '97

58411059100

$23.65

31

BATTERY CABLE L= 200 MM 03

58411059350

$18.78

32

STARTER RELAY WITH HOLD.RUBBER

58411058000

$69.18

33

Self lock. nut DIN985-M6-A2

0985060003

$2.05

34

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

35

BATTERY 12V 8,6AH 03

58411053100

$309.38

36

BATTERY COVER 96

58411053050

$22.65

37

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

38

Self locking nut M6 - 10

56509064100

$2.05

39

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

40

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

41

SIDE STAND SWITCH CPL. '97

58411045000

$97.89

42

HEAD LIGHT SWITCH AD LC4 02

58411070100

$82.52

43

START-STOP SWITCH AD 03

58411074200

Unavailable

45

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

46

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

47

SHCS DIN 912 M5x8

0912050083

$1.49

49

PROTECTION CAP F. STARTER ENG.

58440099000

$5.23
