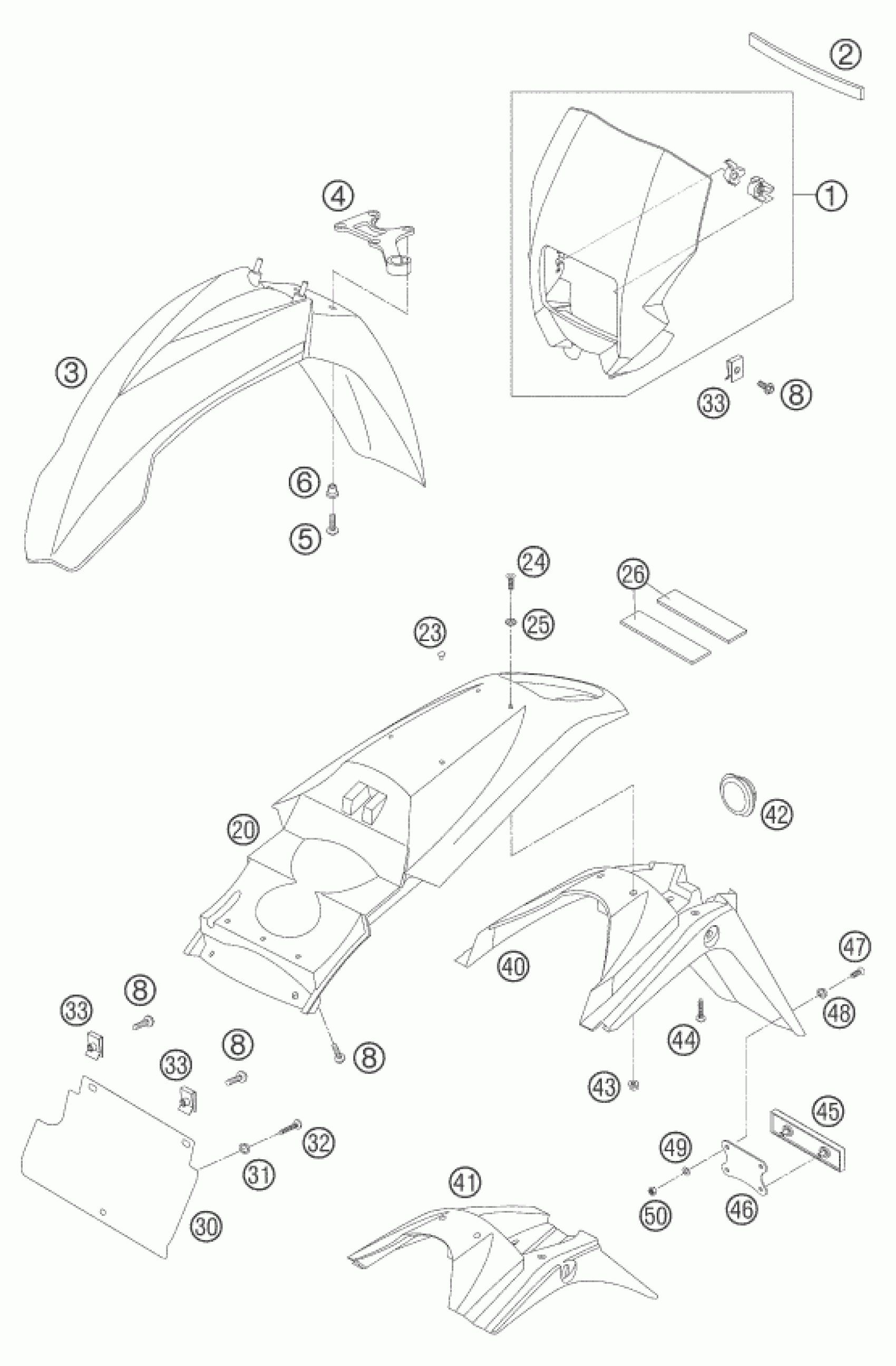

KTM 640 LC4 ENDURO ORANGE 2005 MASK, FENDERS Diagram

#

Description
Price

1

HEAD LIGHT MASK ORANGE LC4 03

58408001100

$20.15

2

FOAM 4X9MM PER METER

58211001063

Unavailable

3

FENDER FRONT WIDE ORANGE 03

5030801030004

$29.63

4

BRAKE HOSE GUIDE 2000

59008019000

$4.11

5

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

6

SPACER BUSHING FRONT FENDER

58408009050

$3.08

8

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

20

FENDER REAR ORANGE LC4 01

5840801410004

$25.45

23

PLUG REAR FENDER ORANGE 01

5840801200004

Unavailable

24

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

25

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

26

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

30

FENDER EXTENSION LC4-E '97

58308013250

$13.01

31

WASHER 6MM

40006006000

$1.49

32

SCREW FOR PLASTIC D=5X18

0017050181

$1.49

33

clip nut M6

54603048100

$4.11

40

NUMB.PLATE CARRIER BLACK LC4

58408015000

$35.76

41

NUMB.PLATE CARRIER BLACK SC'99

58308015100

Unavailable

42

RUBBER FOR FENDER REAR

58414040050

$8.71

43

Self locking nut M6 - 10

56509064100

$2.05

44

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

45

REFLECTOR RED

58412080000

$5.23

46

BRACKET FOR REFLECTOR

58412080050

$6.07

47

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

48

WASHER 6MM

40006006000

$1.49

49

WASHER DIN0125-A 5,3

0125050003

$1.49

50

Self locking nut DIN 985 M5

0985050003

$2.05
