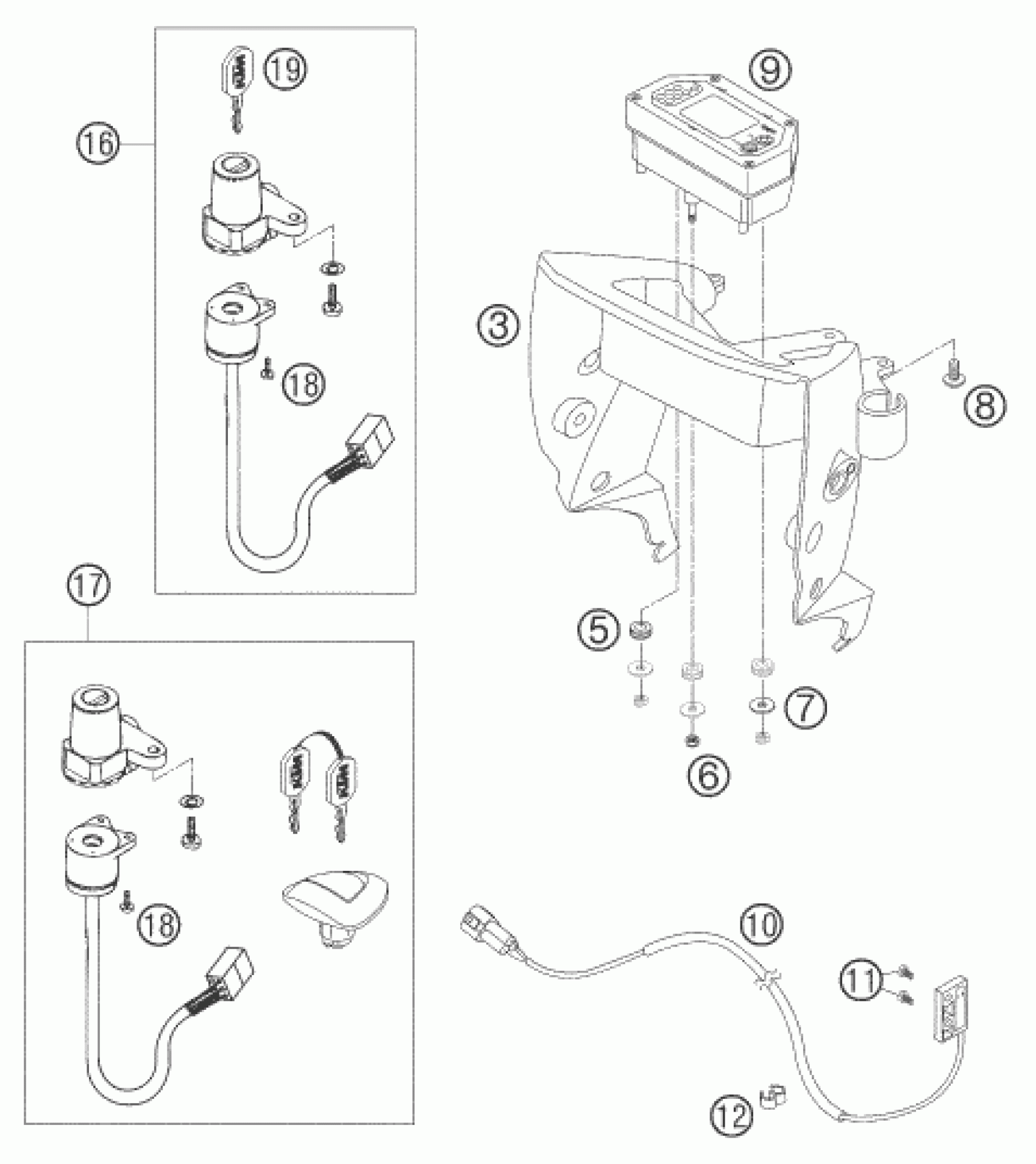

KTM 640 LC4 ENDURO ORANGE 2005 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description

Price

3

MASK SUPPORT LC4 03

58411003200

$32.52

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

washer DIN 9021 A - 5.3

0021050003

$1.49

7

Self locking nut DIN 985 M5

0985050003

$2.05

8

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

9

DIGITAL SPEEDOMETER

60014069100

Unavailable

10

SPEEDOMETER SENSOR ADV. 2002

58214069150

$101.62

11

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

12

CLAMP D=6/8MM, BLACK

55011022100

$2.05

16

IGNITION LOCK 99

58411066100

$103.10

17

IGNITION LOCK+TANK PLUG S/A98

58411066244

$169.15

18

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

$1.49

19

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable
