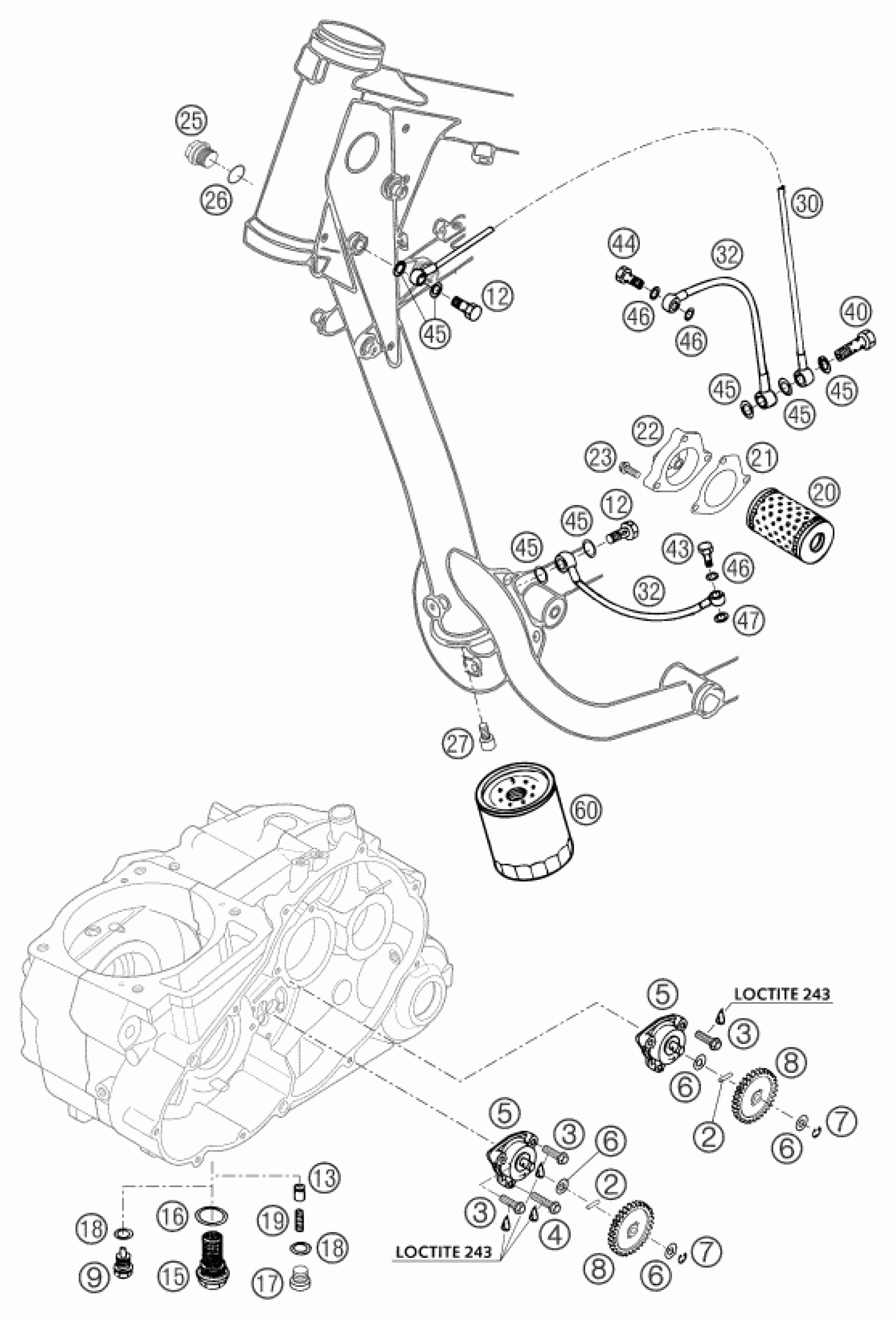

KTM 640 LC4 ENDURO BLACK 12L 03 <2003> LUBRICATING SYSTEM Diagram

#

Description
Price

2

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

4

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

5

OIL PUMP MIKUNI G-73-10

58038007700

$97.42

6

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

7

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

8

OIL PUMP GEAR 26-T

58438001000

$9.53

9

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

12

HOLLOW SCREW M10 X 1

54313025000

$6.44

13

VALVE PISTON D=10MM

58038028000

$37.77

15

OIL DRAIN PLUG M22X1,5

58038019100

$26.97

16

CU-SEAL RING DIN7603-22X27X2

58038017100

$3.08

17

threaded plug DIN 908 M12x1.5

0908120153

$4.11

18

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

19

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

20

OIL FILTER LONG

58038005000

Unavailable

21

OIL FILTER COVER GASKET 2001

58530041000

$7.00

22

OIL FILTER COVER 2001

58030008700

$126.79

23

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

25

PLUG DIN0910-M16X1,5

0910160153

$4.87

26

CU-SEAL RING 16X22X2

0603162220

$2.05

27

AH SCREW DIN7984-M 6X10

0984060103

$1.49

40

DUAL BANJO BOLT M10 X 1

58038033100

$12.80

43

JET SCREW M 8 X 1 ''150''

58038130000

$12.89

44

BANJO BOLT M8 X 1 DIN7643

58038030000

$5.23

30

OIL LINE FILTER-FRAME TUBE

58038234700

$55.60

32

OIL LINE CLUTCH COVER-FRAME

58338034000

$40.57

45

sealing ring DIN 7603 10x14x1

0603100141

$2.05

46

COPPER Gask.DIN7603- 8.2X13X1

0603082131

$2.05

47

CU-SEAL RING 8 X 12 X 1,5

58038032300

$2.05

60

SCREW TYPE FILTER LC4'

58338045000

$23.93
