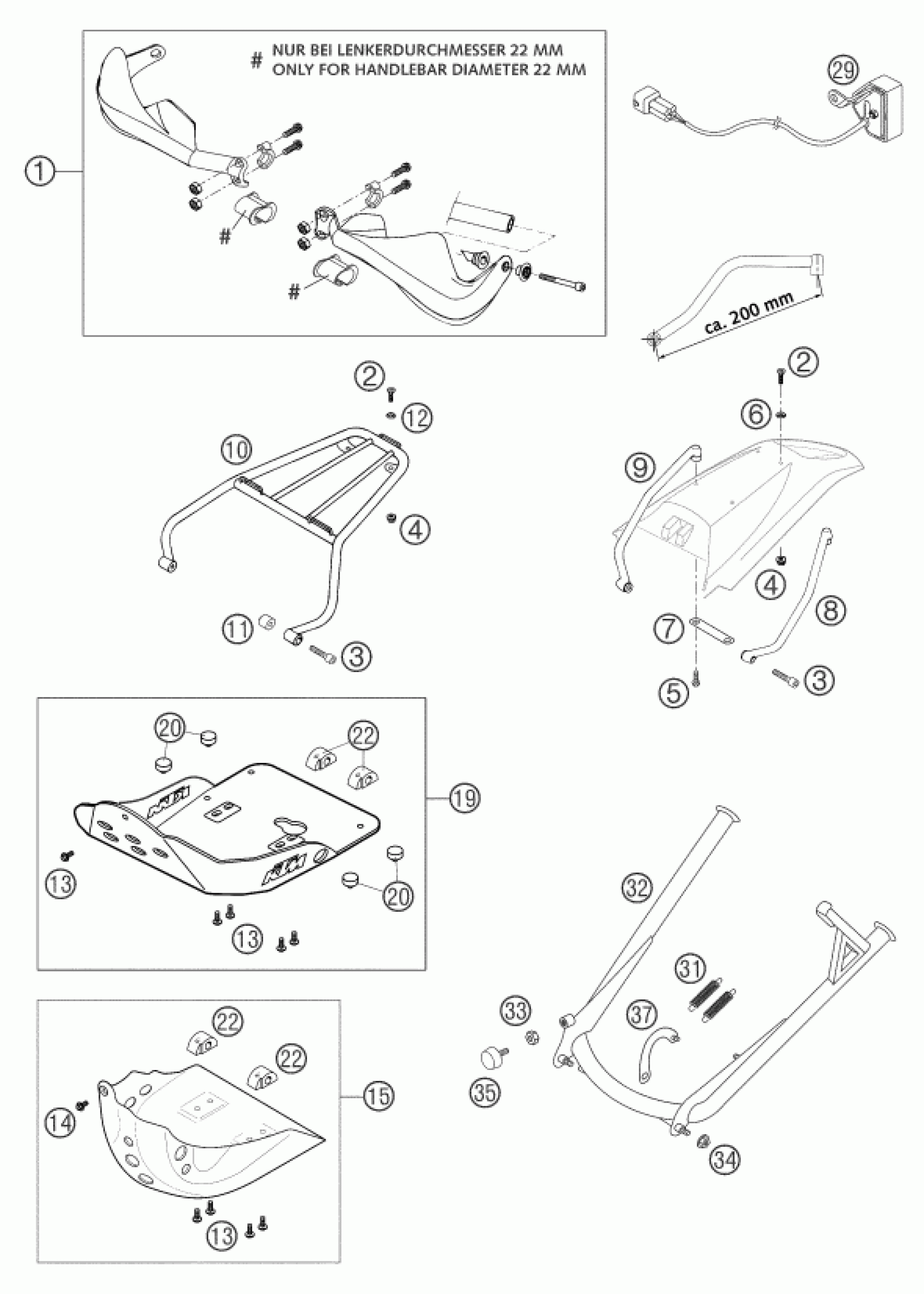

KTM 640 LC4 ENDURO BLACK 12L 03 <2003> ACCESSORIES Diagram

#

Description
Price

1

Handguard L/R cpl. orange

6000207900004

Unavailable

1

% HAND GUARD L/S+R/S CPL. BLAC

6000207900030

Unavailable

2

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

3

AH SCREW DIN0912-M 6X35

0912060353

$2.05

4

Self locking nut M6 - 10

56509064100

$2.05

5

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

6

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

$4.11

7

METAL SHEET F.HANDLE BLACK LC4

58412008052

$4.78

8

HANDLE L/S BLACK LC4 '99

58412008000

$32.11

9

HANDLE R/S BLACK LC4 '99

58412009000

$32.11

10

BAGGAGE CARRIER BLACK MIL LC4

5841201020030

$138.39

11

BUSH FOR BAGGAGE CARRIER 2000

58412011100

$1.73

12

WASHER 6MM

40006006000

$1.49

13

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

15

SKID PLATE PLASTIC

58303005244

$58.34

19

SKID PLATE LIMITED CPL. 97

58412099044

$103.22

20

RUBBER BUFFER

54308042000

$3.08

22

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

29

TRIPMASTER SWITCH CPL. ADV. 02

58214069044

$66.39

31

STAND SPRING SHORT

10003021000

$9.44

32

CENTER STAND 378MM SILVER 20

5750302200090

Unavailable

33

Hexagon nut DIN934 M8

0934080003

$2.05

34

Self locking nut M8 10.9

54310086200

$3.08

35

STOP RUBBER M8

58303070000

$7.28

37

SPRINGBOW SILVER '99

5830302700090

$21.82
