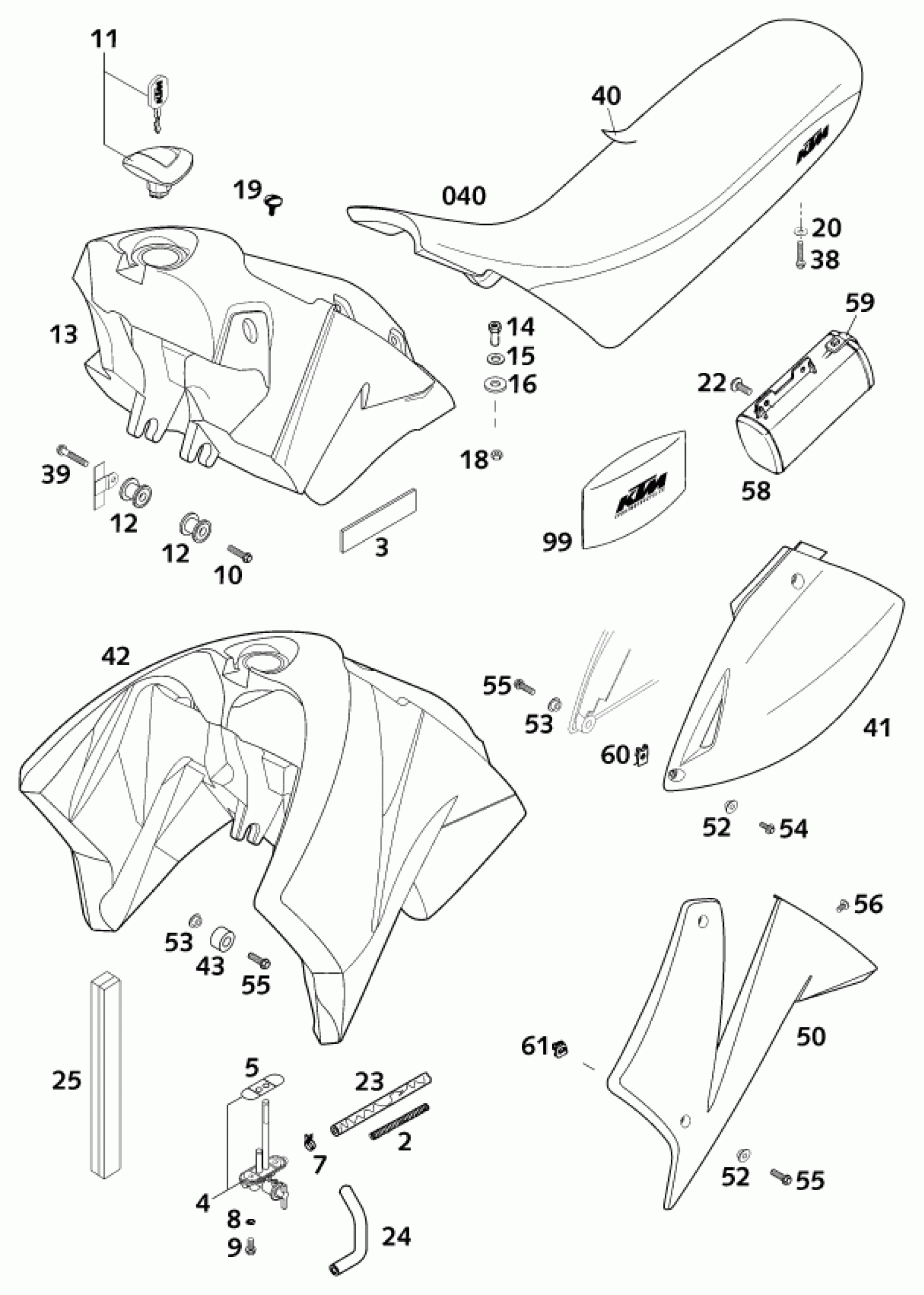

KTM 640 LC4-E SUPER MOTO 2001 TANK, SEAT Diagram

#

Description
Price

0

SIDE COVER R/S SILVER LC4 '98

5840804210090

$20.98

0

SPOILER R/S SILVER LC4 '99

5840805100090

$30.91

2

PRESSURE SPRING 0,9MM

58036006100

$1.49

3

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

4

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

$69.37

5

GASKET FUEL COCK MIKUNI

58307106100

$6.82

7

CLAMP YDNAC 10128 12MM

58031005000

$3.08

7

CLAMP YDNAC 13,7MM 2000

58431082200

$2.05

8

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

10

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

11

TANK PLUG LC4 USA '99

58407008100

$112.94

12

TANK BUSHING CPL. 12 X 34 X 25

58307113250

$10.20

13

58407013144

Unavailable

14

SPECIAL NUT M8

58307014000

$6.26

15

WASHER 10,5 X 25 X 1,5

58307019000

$2.05

16

INSOLATE WASHER 12X28X3

51005067100

$2.05

18

Hexagon nut DIN934 M8

0934080003

$2.05

19

SCREW FOR SEAT M 6X13/8

58407011000

$4.11

20

WASHER 6,2X18X2

50232050000

$5.23

22

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

23

HOSE ID 7,5 PER METER

54435024001

Unavailable

24

FUEL HOSE FOR 18L. TANK 2000

58407016000

$5.05

25

FOAM RUBBER STRIP

58107011000

$5.63

38

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

39

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

40

SEAT LOW SILVER/BLACK 2000

58407140300

$109.53

40

SEAT COVER LOW SILVER 2000

58407140350

$36.31

41

*SIDE COVER L/S SILVER LC4 '98

5840804100090

Unavailable

50

SPOILER L/S SILVER LC4 '99

5840805000090

$33.46

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

55

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

56

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

58

TOOL BOX CPL. '92

58012058000

$35.48

59

RUBBER FOR TOOL BOX '92

58012058050

$6.98

60

clip nut M6

54603048100

$4.11

61

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

99

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable
