Description

Price

3

* MASK BRACKET LC4 '98

58411003100

Unavailable

5

BUSHING

54635036000

$1.49

6

RUBBER SLEEVE D=12MM

41001052000

$4.11

7

Washer DIN9021-A 6.4

0021060003

$2.05

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

9

clip nut M6

54603048100

$4.11

10

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

11

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

12

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

14

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

20

METAMOLL FOR SPEEDO.15X32 2001

58414040053

$1.49

25

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

52

SPEEDOMETER DRIVE748233(2.66)

50314050100

$31.86

53

DRIV.DOG F.SPEEDOM.DRIVE 2000

50314053000

$2.05

55

SPEEDO.CABLE M12/M12 LC4 2000

58414055300

$49.08

57

SPEEDOMETER NIPP.SEIKI KMH '98

58414057000

Unavailable

60

LOCTITE 243 BLUE 5 ML

6899785

$28.04

66

IGNITION LOCK 99

58411066100

$103.10

67

FLAT HEAD SCREW DIN7985-M 4X12

0985040123

$1.49

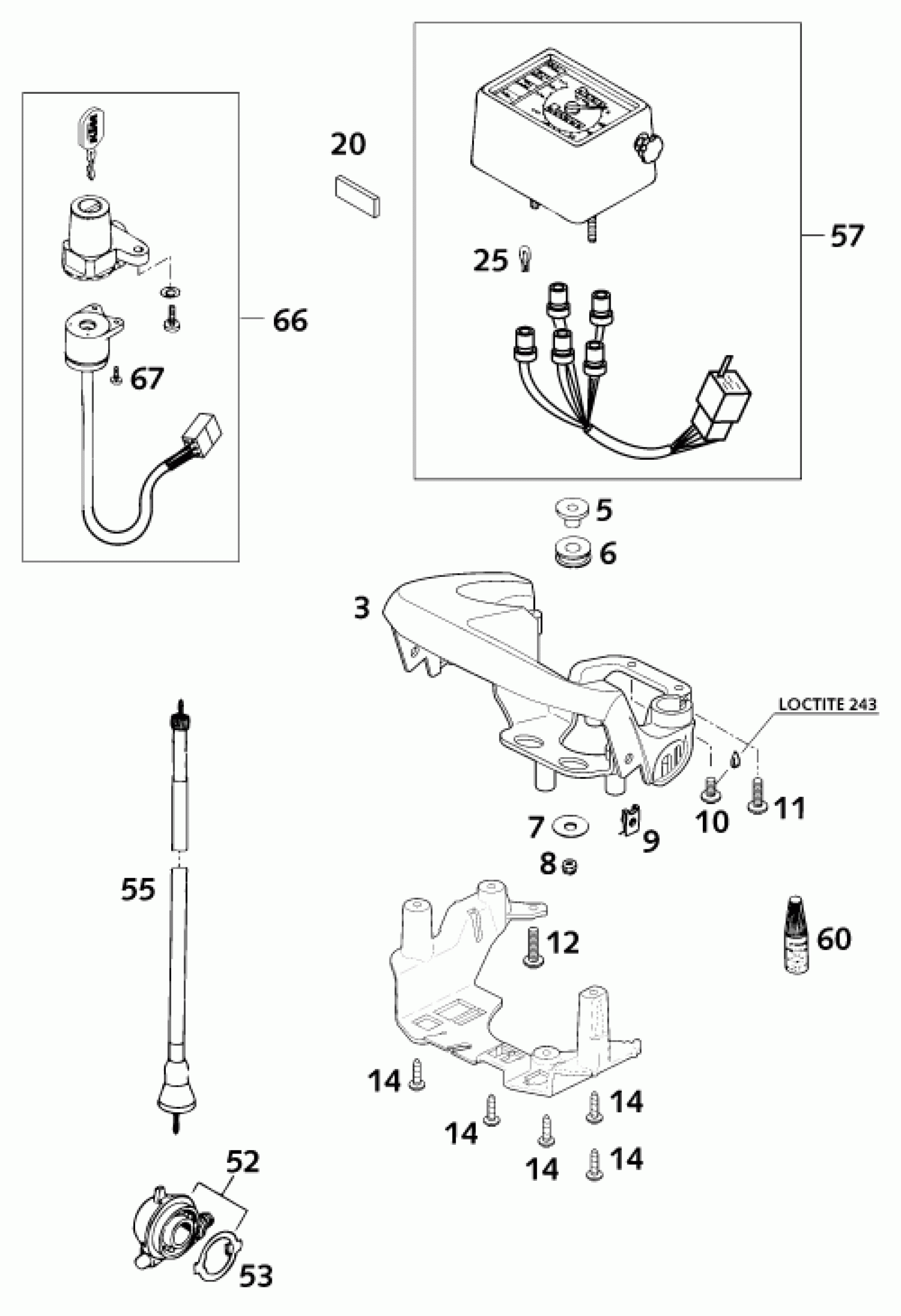

KTM 640 LC4-E SUPER MOTO 2001 INSTRUMENTS / LOCK SYSTEM Diagram

* MASK BRACKET LC4 '98

BUSHING

RUBBER SLEEVE D=12MM

Washer DIN9021-A 6.4

Self lock. nut DIN985-M6-A2

clip nut M6

HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X25 WS=8

EJOT PT SCREW K60X20 WS=6

METAMOLL FOR SPEEDO.15X32 2001

BULB 12V 1,2W (W2X4,6D)

SPEEDOMETER DRIVE748233(2.66)

DRIV.DOG F.SPEEDOM.DRIVE 2000

SPEEDO.CABLE M12/M12 LC4 2000

SPEEDOMETER NIPP.SEIKI KMH '98

LOCTITE 243 BLUE 5 ML

IGNITION LOCK 99

FLAT HEAD SCREW DIN7985-M 4X12
