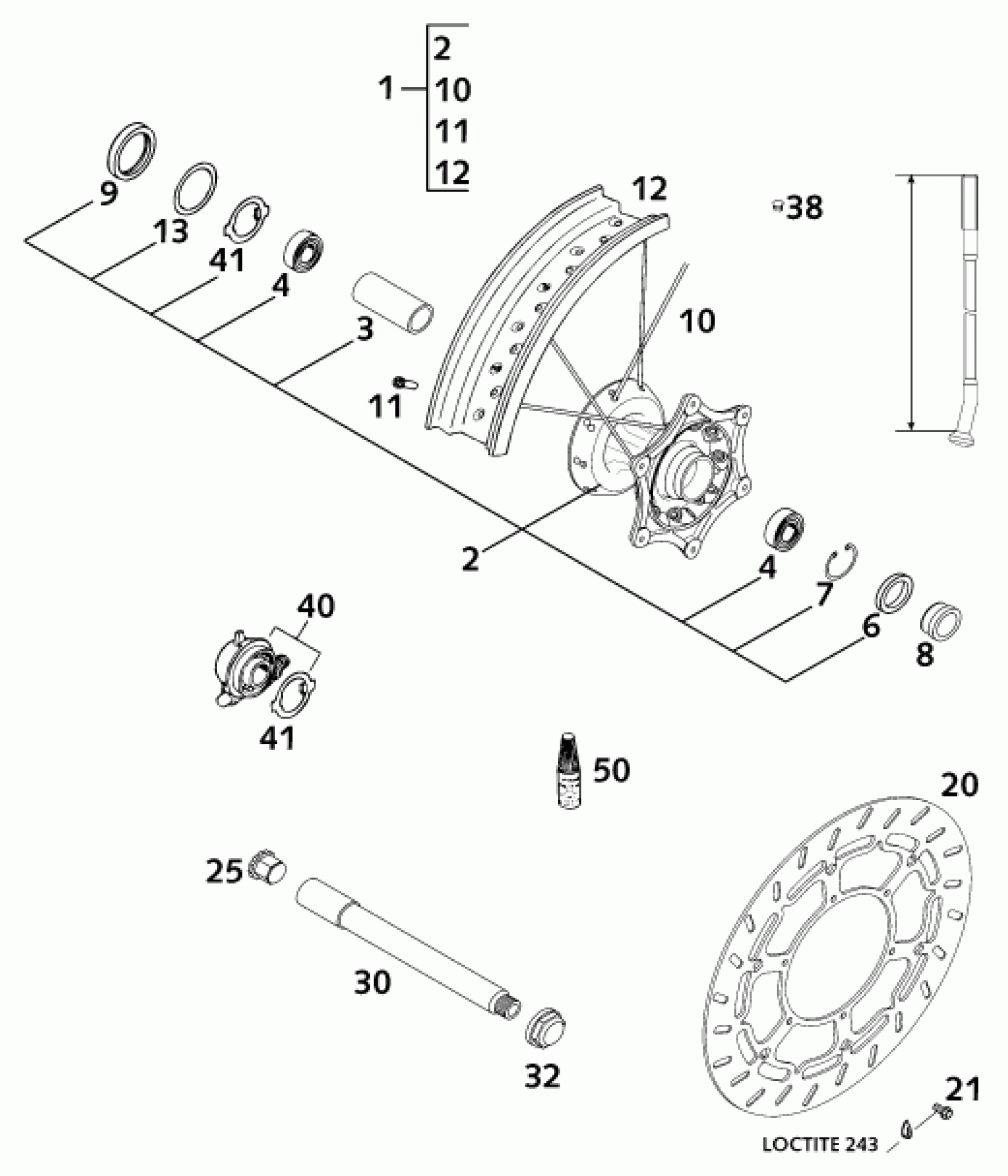

KTM 640 LC4-E SUPER MOTO 2001 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL-SP 3,5X17'' 20MM

58409001344

$439.89

2

FRONT HUB CPL. EXC 2000

50309010144

$186.73

3

BEAR. SPACERTUBE 20,5X25X63,3

50309011100

$5.83

4

GR.BALL BEAR.6904 DDU2CG23S6NM

0625069047

$23.09

6

SHAFT SEAL RING 26X37X7 ASL

0760263770

$3.08

7

LOCK RING DIN0472-37X1,5

0472037154

$2.05

8

SPACER BUSHING 20X26X27,8 2000

50309012000

$7.75

9

SHAFT SEAL RING 40X52X7 B

0760405270

$11.68

10

SPOKE M4,5X177-15G 17'' DDE

50309071177

$3.48

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

$2.05

12

FRONT RIM 3,5X17''

58409070000

$161.84

13

WASHER 40 X 52 X 0,15 '92

58111054000

$1.57

20

BRAKE DISK FRONT D=320MM

58309060000

$298.54

21

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

25

HANDLE FOR FRONT AXLE WS=21

50309081150

$1.73

30

WHEEL SP. FRO.USD43 185MM 2001

50309081200

$36.48

32

AXLE NUT FRONT M16X1,5/WS=27

50309082100

$11.77

38

PLUG FOR RIM

55003135000

Unavailable

40

SPEEDOMETER DRIVE748233(2.66)

50314050100

$31.86

41

DRIV.DOG F.SPEEDOM.DRIVE 2000

50314053000

$2.05

50

LOCTITE 243 BLUE 5 ML

6899785

$28.04
