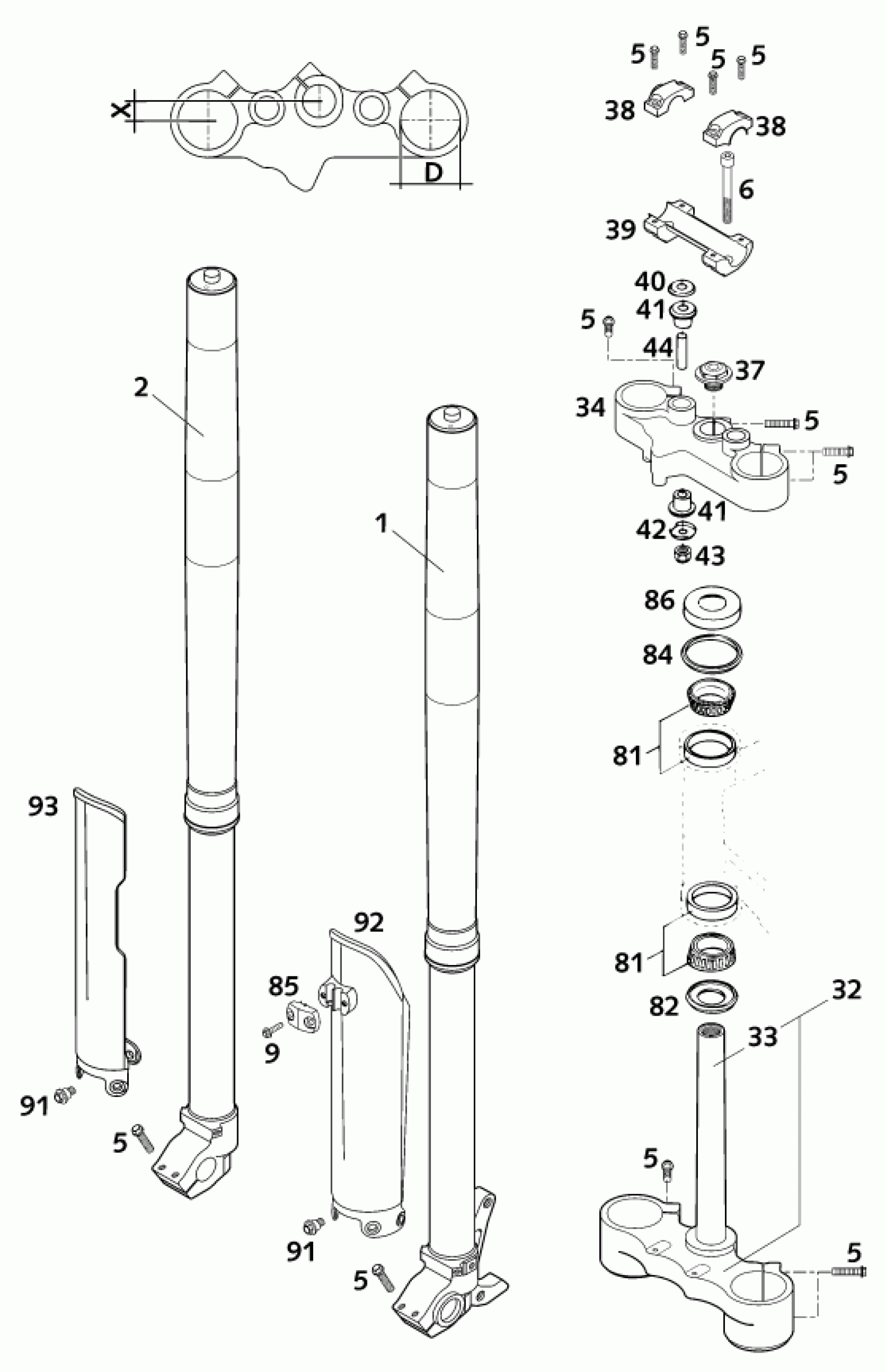

KTM 640 LC4-E SUPER MOTO 2001 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S WP SUPERMOTO 2001

0518V721LS

Unavailable

2

FORK LEG R/S WP SUPERMOTO 2001

0518V721RS

Unavailable

5

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

6

AH SCREW DIN6912-M10X70

0984100703

$7.00

9

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

32

BOT.TRIPLE CLAMP X=18MM/D=57

58401032018

Unavailable

33

FORK TUBE L=244 '91

50101033100

$85.17

34

TOP TRIPLE CLAMPX=18MM/D=54MM

58401034218

$143.61

37

STEER.HEAD SCREW M20X1,5 WS=27

50301036000

$10.38

38

HANDLEBAR CLAMP 22MM 2T 20

59001038000

Unavailable

39

HANDLEBAR SUPPORT 22MM 2T 2000

59001039000

$53.05

40

washer 10.5x32x2

56401042000

$4.11

41

rubber bushing

56401040000

$5.23

42

WASHER 10,5X31

56401142000

$4.11

43

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

44

SPACER TUBE 10,2X12X44

56401041100

$5.88

81

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECTION L/S BLACK 20

59001092100

Unavailable

93

FORK PROTECTION R/S BLACK 20

59001093100

Unavailable
