Partiron

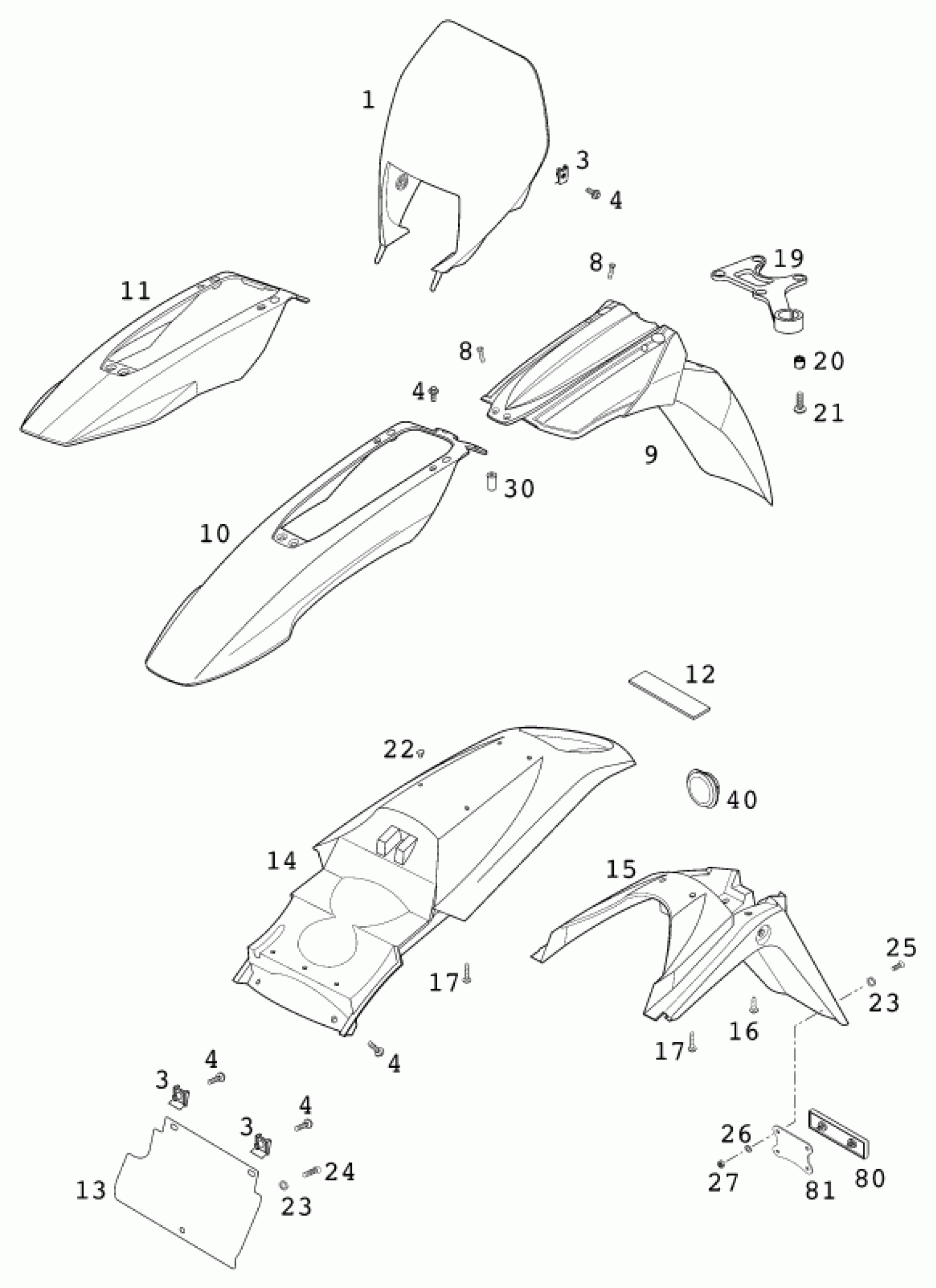

KTM 640 LC4-E Super-Moto 2000 MASK, FENDERS Diagram

#

Description
Price

1

HEAD LIGHT MASK SILVER LC4 '99

5840800100090

Unavailable

3

clip nut M6

54603048100

$4.11

4

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

8

SCREW FOR PLASTIC D=5X18

0017050181

$1.49

9

FRONTFEND.REAR PART BLACK LC4

58408009000

Unavailable

10

FRONTFEND.FRONTPART SILV.LC4

5840801000090

Unavailable

11

* FRONTFEND.FR.PART SILV.SM 00

58408010100

Unavailable

12

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

13

FENDER EXTENSION LC4-E '97

58308013250

$13.01

14

FENDER REAR SILVER LC4 '99

5840801410090

$25.45

15

NUMB.PLATE CARRIER BLACK LC4

58408015000

$35.76

16

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

17

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

19

BRAKE HOSE GUIDE 2000

59008019000

$4.11

20

SPACER BUSHING 7X10X7,5

50208020000

$4.11

21

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

22

PLUG REAR FENDER

58408012000

Unavailable

23

WASHER 6MM

40006006000

$1.49

24

SPECIAL SCREW Z 5,5X16

0016055163

$1.49

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

26

WASHER DIN0125-A 5,3

0125050003

$1.49

27

Self locking nut DIN 985 M5

0985050003

$2.05

30

BUSH FOR FENDER BRACKET 2000

58408010050

$5.88

40

RUBBER FOR FENDER REAR

58414040050

$8.71

80

REFLECTOR RED

58412080000

$5.23

81

BRACKET FOR REFLECTOR

58412080050

$6.07
