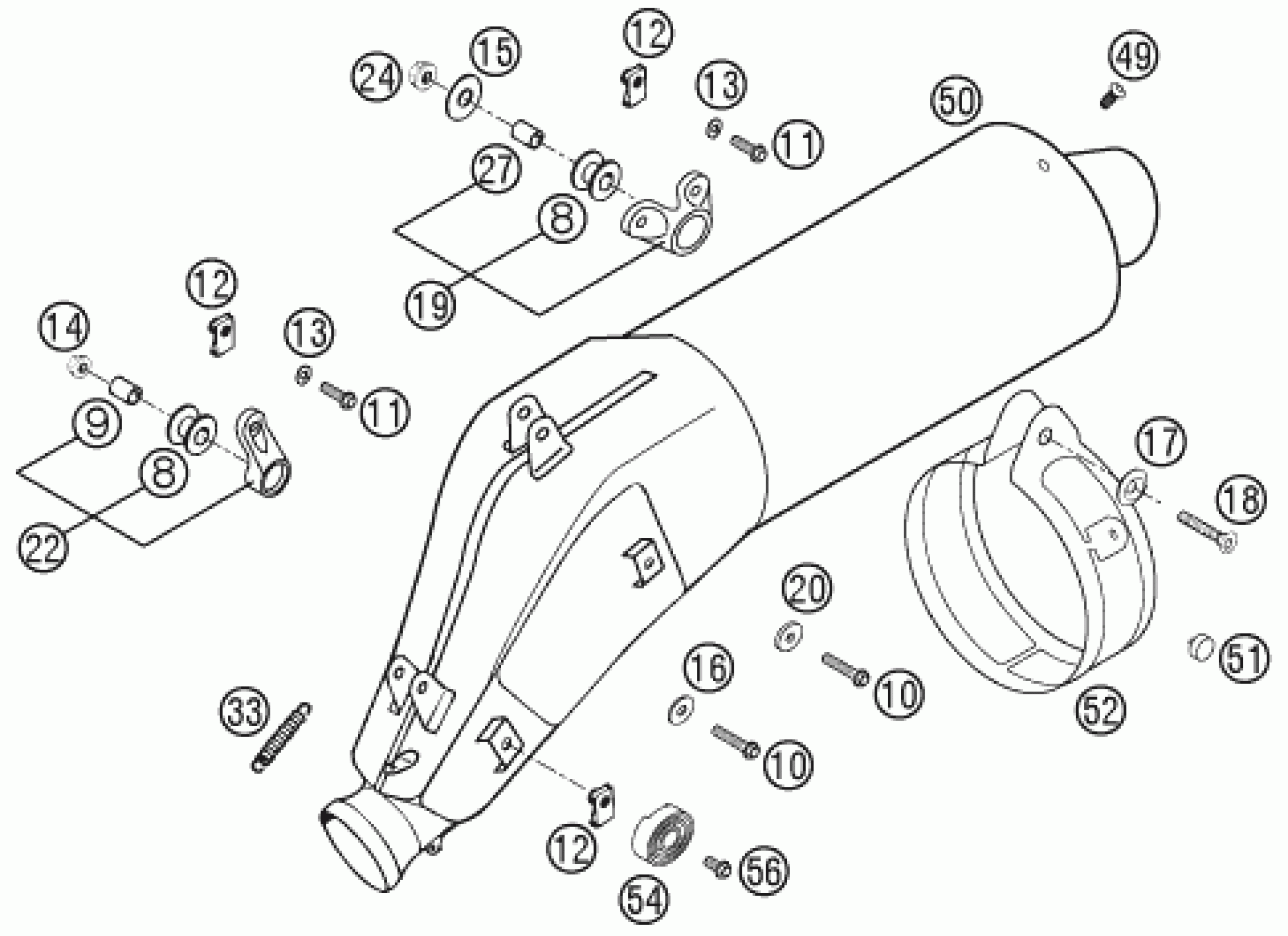

KTM 640 LC4-E ORANGE 18L 2002 EXHAUST SYSTEM Diagram

#

Description
Price

8

damp. component silicone grey

54305068100

$8.31

9

BUSHING 7X12X15,4

54305069000

$4.11

10

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

12

clip nut M6

54603048100

$4.11

13

spring washer DIN 137 B - 6

0137060003

$2.05

14

Self locking nut M6 - 10

56509064100

$2.05

15

WASHER DIN9021-A 8,4

0021080003

$1.49

16

Washer DIN9021-A 6.4

0021060003

$2.05

17

SPECIAL WASHER ALU 8 X 24 MM

58303061000

$5.23

18

FLAT HEAD SCREW DIN7991-M 8X35

0991080353

$2.61

19

SILENCER BRACKET CPL. 2001

58405085044

$35.02

20

STEEL WASHER 6,4X17X3

50232050001

$5.23

22

SILENCER BRACKET CPL. SHORT'96

58305165244

$23.81

24

Self locking nut M8 10.9

54310086200

$3.08

27

Spacer bushing 8.4X12X16

56505069000

$4.11

33

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

49

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

50

SILENCER LC4 ''HGS4'' 20

58405083000

Unavailable

51

RUBBER BUFFER

54308042000

$3.08

52

RETAIN CLAMP F.HGS-SILENC.2001

58405161000

Unavailable

54

RUBBERBUFFER F. SILENCER 2000

58405098100

$10.58

56

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08
