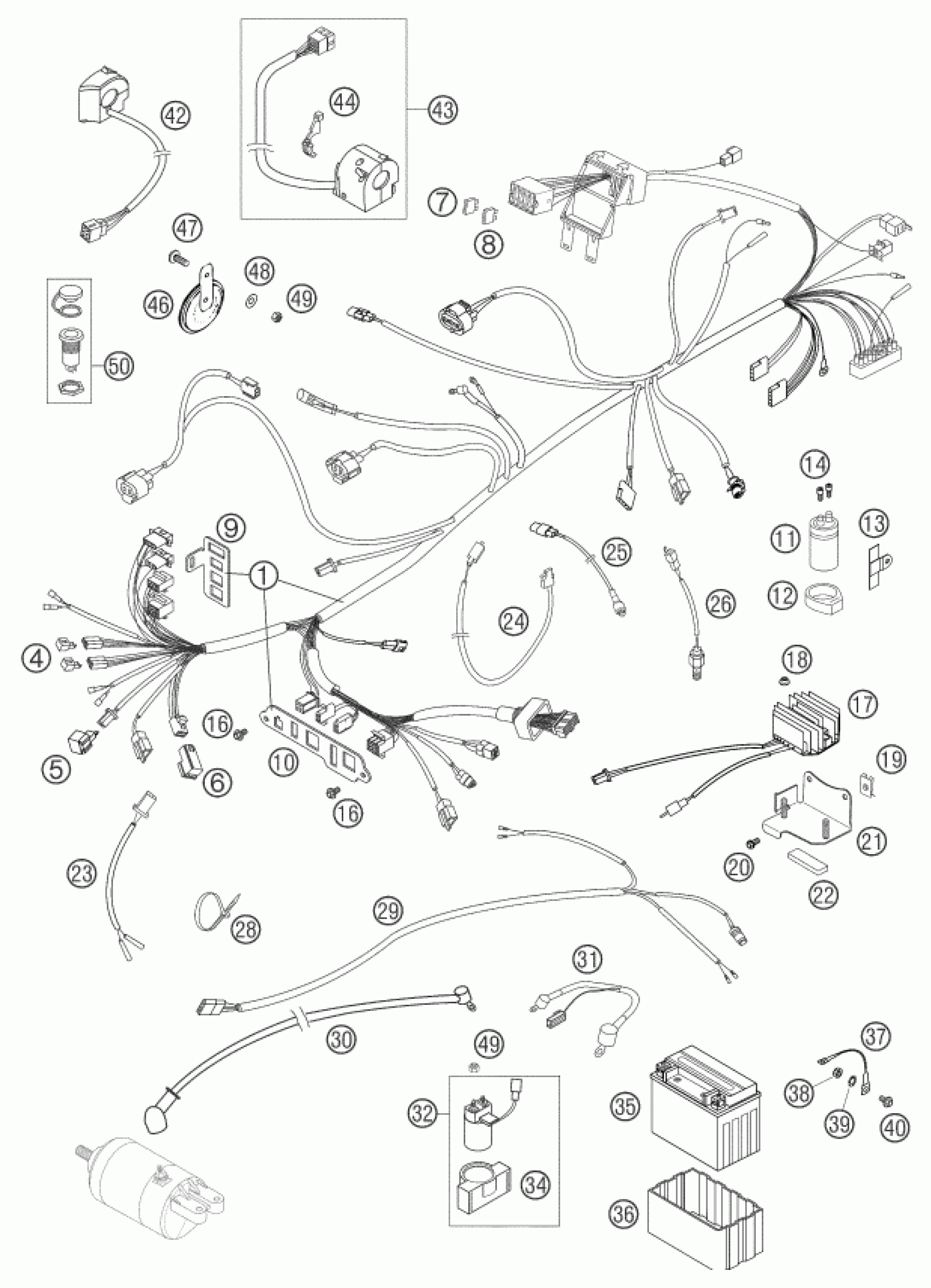

KTM 640 LC4 ADVENTURE 2003 WIRING HARNESS Diagram

#

Description
Price

1

MAIN WIRING HARNESS ADV. 03

58211075500

$231.81

4

DIODE S3H-15 97

58411096100

$9.81

5

FLASHER UNIT 97

44611207200

$49.83

6

STARTER RELAY '96

58411057000

$22.82

7

Plug-in fuse, big 10A

58011109110

Unavailable

8

Plug-in fuse, big 20A

58011109120

Unavailable

9

BRACKET FOR PLUGS SHORT ADV.03

58211083300

$18.85

10

BRACKET FOR PLUGS LONG ADV 02

58211083100

Unavailable

11

CONDENSATOR 25V, 10.000 MF

49111435100

$57.59

12

CAPACITOR BRACKET

54511048000

$4.33

13

BRACKET FOR CAPACITOR

54611448000

Unavailable

14

SHCS DIN 912 M5x8

0912050083

$1.49

16

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

17

VOLT.REGULATOR-RECTIFIER 12V

58411034100

$214.48

18

Self locking nut M6 - 10

56509064100

$2.05

19

clip nut M6

54603048100

$4.11

20

HH COLLAR SCREW M 6X10 WS=8

0015060103

$3.08

21

BATTERY BRACKET 03

58411055200

Unavailable

22

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

23

FLASHER CABLE FRONT 03

60011025000

$5.88

24

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

25

CLUTCH SWITCH 03

58411049100

$54.32

26

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

28

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

28

Cable tie 200/4.6mm black

44011076200

Unavailable

28

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

29

WIRING HARNESS REAR 03

58411176300

$12.54

30

STARTERCABLE 700 MM '97

58411059100

$23.65

31

BATTERY CABLE L= 200 MM 03

58411059350

$18.78

32

STARTER RELAY WITH HOLD.RUBBER

58411058000

$69.18

34

HOLD. RUBBER FOR STARTRELAY

58411058050

Unavailable

35

BATTERY 12V 8,6AH 03

58411053100

$309.38

36

BATTERY COVER 96

58411053050

$22.65

37

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

38

Self locking nut M6 - 10

56509064100

$2.05

39

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

40

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

42

START-STOP SWITCH/LIGHT SW. 03

60011074000

$100.97

42

START-STOP SWITCH 03

60011074100

$71.99

43

LIGHT SWITCH AD ADVENTURE 02

58211070100

$122.08

44

CHOKE LEVER LC4 2002

58402050000

$8.01

46

DC HORN L.E.B. 03

50311060100

$32.44

47

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

48

WASHER DIN0125-A 6,4

0125060003

$1.49

49

Self lock. nut DIN985-M6-A2

0985060003

$2.05

50

CONNECTOR BLACK 03

58211042000

Unavailable
