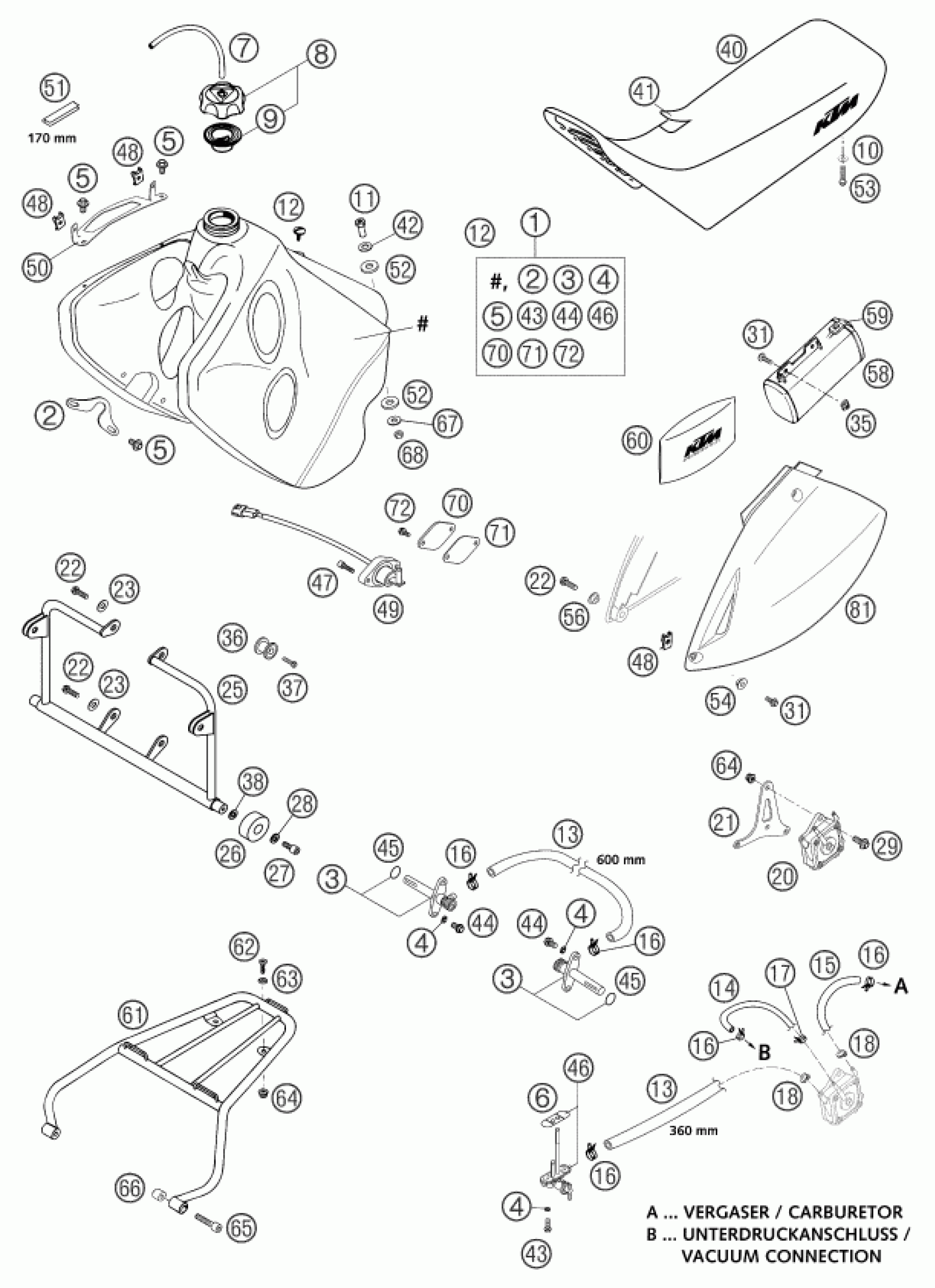

KTM 640 LC4 ADVENTURE 2003 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK CPL. ADVENTURE 03

58207013244

Unavailable

2

BRACKET FOR 30 LITER TANK

58507023000

Unavailable

3

FUEL COCK CPL. SM. RALLYE'96

58507003000

Unavailable

4

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

5

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

6

GASKET FUEL COCK MIKUNI

58307106100

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. WITH VALVE

59007008044

Unavailable

9

GASKET FOR FILLER CAP HIGH

59007009000

Unavailable

10

WASHER DIN0125-A 6,4

0125060003

Unavailable

11

SPECIAL NUT M8

58307014000

Unavailable

12

OVAL HEAD SCREW M6X15

58007044000

Unavailable

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

HOSE 6X10 PER METER

58205035001

Unavailable

15

HOSE OG.ECO 1TBSE 7X13MM

58507116100

Unavailable

16

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

17

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

18

OETIKER HOSE CLAMP 13,3MM

58007117200

Unavailable

20

FUEL PUMP MIKUNI DF52-601 01

58512087000

Unavailable

21

BRACKET FOR FUEL PUMP 2003

58212071300

Unavailable

22

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

23

Washer DIN9021-A 6.4

0021060003

Unavailable

25

BRACKET 30LT TANK SILVER '97

5851209200090

Unavailable

26

TANKROLL 13X36X16

50107015000

Unavailable

27

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

28

WASHER DIN0125-A 6,4

0125060003

Unavailable

29

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

31

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

35

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

36

TANK BUSHING CPL. 12 X 34 X 25

58307113250

Unavailable

37

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

38

WASHER 6 X 12 X 3

12011016000

Unavailable

40

SEAT ADVENTURE 2003

58207040500

Unavailable

41

SEAT COVER ADVENTURE 2003

58207040550

Unavailable

42

WASHER 10,5 X 25 X 1,5

58307019000

Unavailable

43

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

44

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

45

O-RING 11X1,8 NBR 70

55007006200

Unavailable

46

FUEL COCK CPL.MIKUNI CK-69 '96

51107004000

Unavailable

47

AH collar screw DIN 912 M5x16

0912050163

Unavailable

48

clip nut M6

54603048100

Unavailable

49

GAS-LEVEL SENSOR ADV. 2002

58207080000

Unavailable

50

MASK BRACKET R/S ADV. 01

58211001161

Unavailable

50

MASK BRACKET L/S ADV. 01

58211001160

Unavailable

51

EDGE PROTECTOR PER METER

58312085100

Unavailable

52

INSOLATE WASHER 12X28X3

51005067100

Unavailable

53

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

54

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

56

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

58

TOOL BOX CPL. '92

58012058000

Unavailable

59

RUBBER FOR TOOL BOX '92

58012058050

Unavailable

60

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable

61

BAGGAGE CARRIER BLACK MIL LC4

5841201020030

Unavailable

62

FLAT H.SCREW DIN7991-M6X20

0991060203

Unavailable

63

WASHER 6MM

40006006000

Unavailable

64

Self locking nut M6 - 10

56509064100

Unavailable

65

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

66

BUSH FOR BAGGAGE CARRIER 2000

58412011100

Unavailable

67

WASHER DIN9021-A 8,4

0021080003

Unavailable

68

Hexagon nut DIN934 M8

0934080003

Unavailable

70

COVER FOR GAS-LEVEL SENSOR

58207081000

Unavailable

71

GASKET FOR COVER

58207081050

Unavailable

72

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

81

SIDE COVER L/S BLACK LC4 02

5840804110030

Unavailable

81

SIDE COVER R/S BLACK LC4 02

5840804220030

Unavailable
