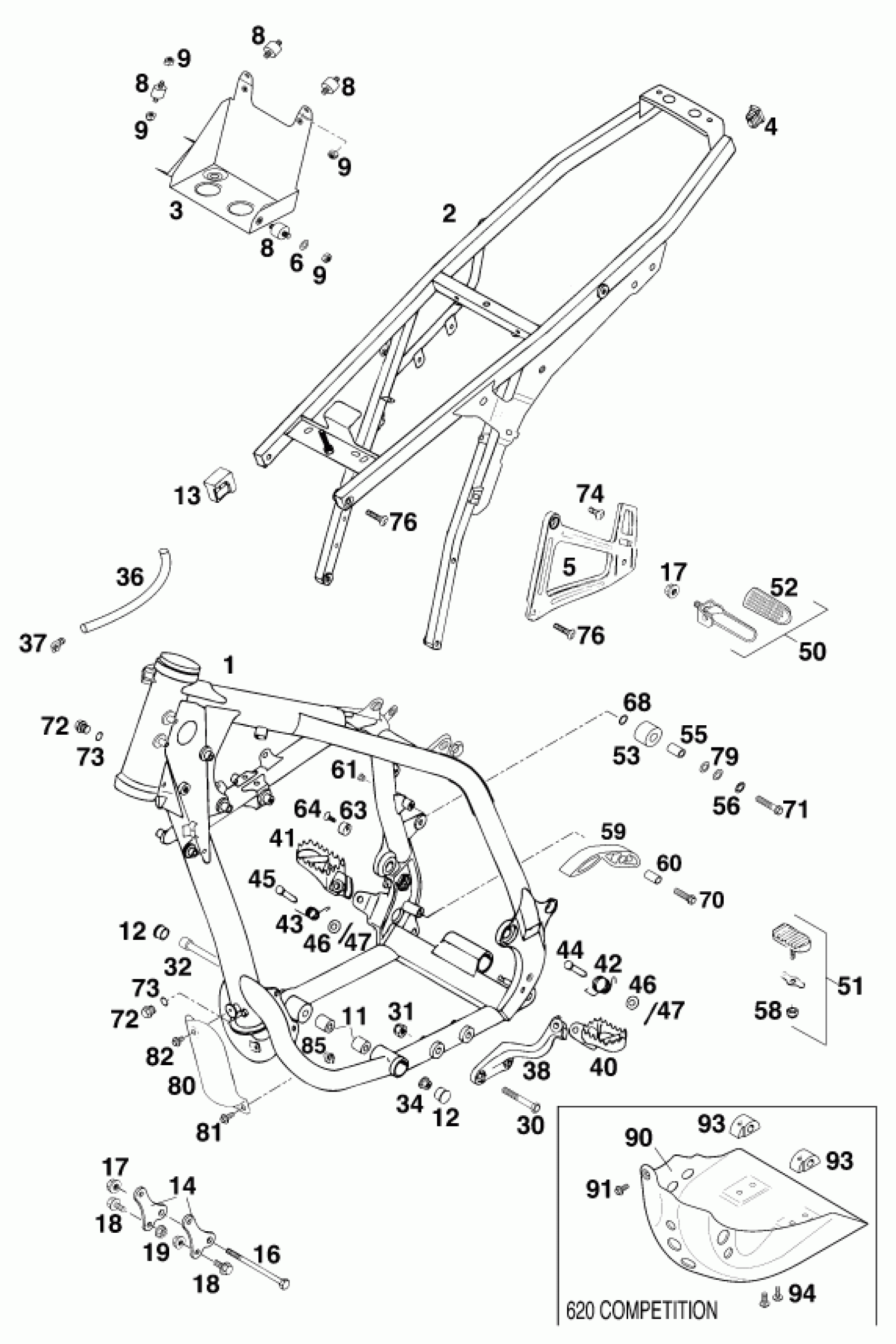

KTM 640 LC4 '98 <1998> FRAME Diagram

#

Description
Price

0

58103004200

Unavailable

0

FOOT REST REAR R/S CPL.'95

58303150044

$88.44

1

% FRAME 620 COMPETITION SEM '

58303001900

Unavailable

1

% FRAME "N" 400/640 LC4 KOKU.'

58403001300

Unavailable

2

SUB FRAME CPL. STEEL LC4 '

58403002300

Unavailable

3

BRACKET FOR BATTERY LC4-E '

58403002170

$77.89

4

PLUG 12 X 17 MM

58303002090

$1.49

5

58103003200

Unavailable

6

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

8

RUBBER GROMMET 20X15-M6X8-(2)

58403002010

$11.49

9

Self lock. nut DIN985-M6-A2

0985060003

$2.05

11

SPACER ROLLER 10,3X20X22

58003012000

$8.53

12

PVC CAP D=22MM

71001012000

$3.08

13

TANK SUPPORT '93

58307015000

$5.47

14

ENGINE SUPPORT AGW '94

58303055000

$10.46

16

HH SCREW DIN0931-M10X110

0931101103

$1.82

17

flanged hex nut DIN 6927 M10 W

49009082000

$3.08

18

HH COLLAR SCREW M 8X16 WS=13

49109481052

$3.08

19

54310086000

Unavailable

30

HH SCREW DIN0931-M10X60

0931100603

Unavailable

31

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

32

AH SCREW DIN0912-M10X160

0912101603

$6.72

34

COLLAR NUT M10 WS=13

54630044000

$1.49

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

ANGLE PIECE '97

50303089000

$5.23

38

FOOTREST BRACKET L/S '93

58303038000

$35.18

40

FOOTREST L/S '

58303040000

$37.24

41

FOOTREST R/S '93

5460314000019

Unavailable

42

FOOTREST SPRING L/S '93

58303041000

$5.48

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

BOLT FOR FOOTREST

58303044000

$6.36

45

BOLT FOR FOOTREST 9,8 X 50

54603044000

$12.43

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

50

FOOTREST REAR L/S CPL. '95

58303050044

$90.01

51

FOOTREST RUBBER CPL. '94

58303045044

$18.04

52

FOOTREST RUBBER L/S&R/S DUKE95

58303051000

$15.70

53

CHAIN ROLL 12X29X22,5 '98

58403060000

$6.07

55

BUSH CHAIN ROLL 8X12X23 '98

58403060065

$3.08

56

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

$1.49

58

Self lock. nut DIN985-M6-A2

0985060003

$2.05

59

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

60

BUSHING 8,2X10X20

51103053051

$4.11

61

PLASTIC CAP SFL10

54403135000

$2.05

63

BRAKE LEVER STOP '93

58303063000

$5.98

64

FLAT H.SCREW DIN7991-M6X20

0991060203

$2.05

68

LOCK WASHER 8MM

36003014000

$2.05

70

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

71

HH COLLAR SCREW M 8X40 WS=10

0015080403

$4.11

72

PLUG DIN0910-M 10X1

0910100003

$4.11

73

CU-SEAL RING 10 X 14 X 1,5

58038022900

$2.05

74

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

76

SPROCKET SCREW-AH M 8X26

54510052000

Unavailable

79

washer DIN 125 A -8.4

0125080003

$1.49

80

COVER OIL FILTER '94

58303010000

$28.31

81

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

82

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

85

SNAP-NUT HOLDER M6 KP142

50235033300

$4.11

90

58303005144

Unavailable

91

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

93

ENGINE PROTECTOR BRACKET '97

58003012200

$20.47

94

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08
