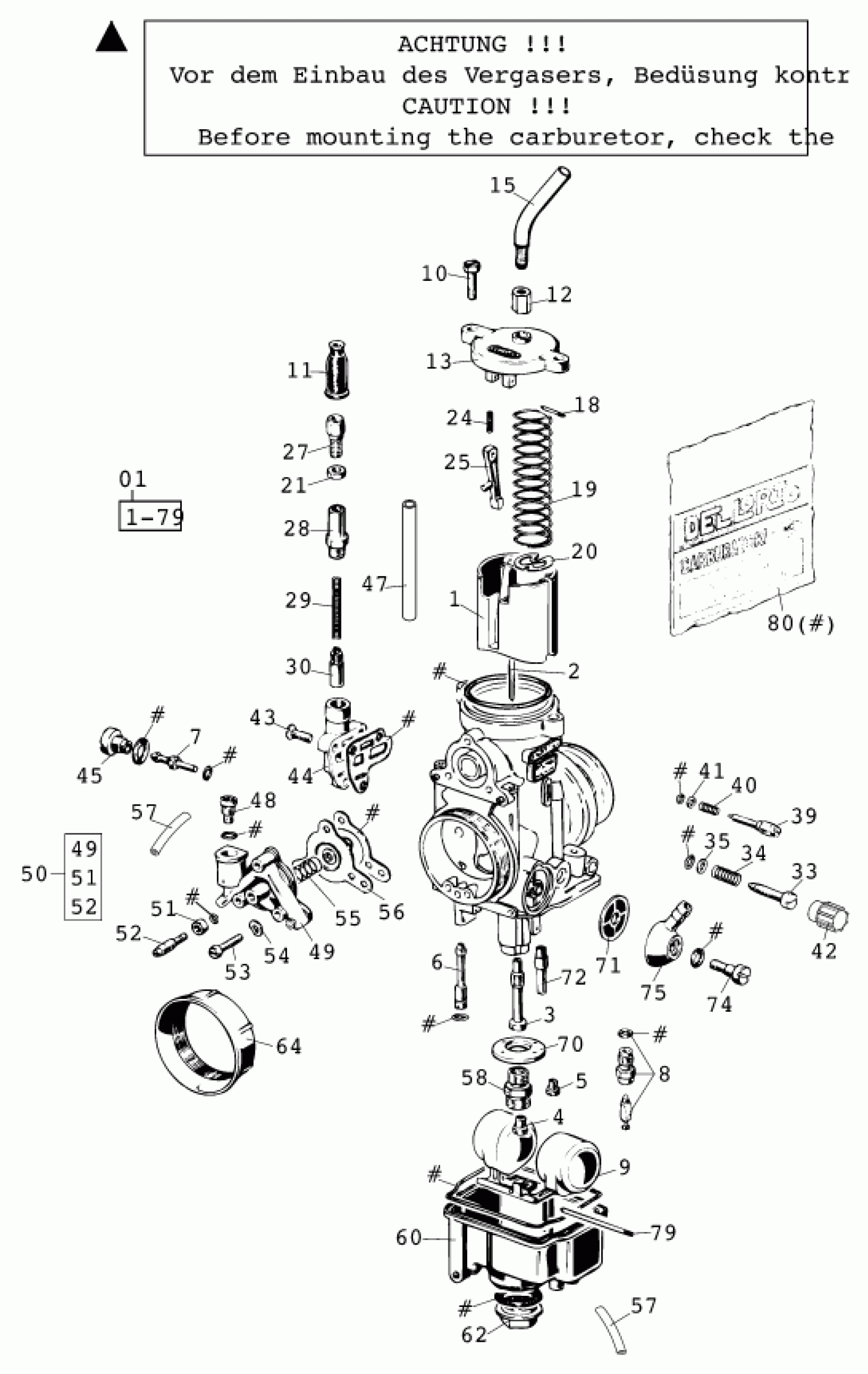

KTM 640 LC-E 2000 CARBURETOR Diagram

#

Description
Price

1

THROTTLE VALVE 50/1 DM=42MM

57231135000

Unavailable

1

CARBURETOR PHM 38 ND (100197)

57631001044

Unavailable

2

JET NEEDLE K23

49031134023

$13.74

3

NEEDLE JET AR 264

57731021264

Unavailable

4

MAIN JET 130

57031523130

Unavailable

4

MAIN JET 135

57031523135

Unavailable

4

MAIN JET 140

57031523140

Unavailable

4

MAIN JET 145

57031523145

Unavailable

4

MAIN JET 150

57031523150

Unavailable

5

JET 38

15131123038

Unavailable

5

JET 45

15131123045

Unavailable

5

JET 50

15131123050

$5.37

5

JET 55

15131123055

Unavailable

6

STARTING JET 45

57031551045

$11.02

6

STARTING JET 50

57031551050

Unavailable

6

STARTING JET 55

57031551055

Unavailable

7

ACCELERATING JET 33

57031566033

Unavailable

8

NEEDLE VALVE 300

57231120300

$50.95

9

% FLOAT 8,5 GRAMME

57031509000

Unavailable

9

FLOAT

58331509000

Unavailable

10

HEXAGON NUT M 5X16

57031524000

$2.12

11

RUBBER SLEEVE

52031138000

$1.73

12

SUPPORT BUSHING M6x0,75 WS=10

58031528000

Unavailable

13

CARBURETOR COVER

57231127000

Unavailable

15

TUBE F.CARBURETOR 400LC4-E '97

58431024000

Unavailable

18

* STUD 2,5X16

57031571000

Unavailable

19

SLIDING SPRING

57031530000

Unavailable

20

RETAINING PLATE

57031532000

Unavailable

21

HEXAGON NUT M 6X0,75 DIN0439

52031126000

$8.41

24

SPRING

57031570000

Unavailable

25

PUMP LEVER

57031569000

Unavailable

27

ADJUSTMENT SCREW M6X0,75

57031525000

$5.23

28

PLUG

57231155000

$7.34

29

SPRING

57231153000

Unavailable

30

STARTING DEVICE

57031549000

$6.11

33

ADJUSTMENT SCREW M5

57031519000

$7.00

34

SPRING

52031116000

$4.11

35

WASHER 5,1 X 8 X 0,8

57031573000

$2.05

39

MIXTURE REGULAT.SCREW M7X0,75

57031517000

$4.06

40

SPRING AIR ADJUST.SCREW

57031515000

$1.49

41

WASHER 3,3 X 5,8 X 0,5

57031572000

$2.05

42

KNURLED CAP PLASTIC

57031519100

$1.67

43

OVAL HEAD SCREW DIN0964-M 4x14

0964040143

$1.49

44

START.DEVICE BODY 4S

57231150100

Unavailable

45

JET HOLDER

57031567000

Unavailable

47

SLIDE STOP L=51MM

58331029051

Unavailable

48

BLEEDER VALVE

57031565000

Unavailable

50

* PUMP HOUSING CPL.

57231160044

Unavailable

53

CYL.SCREW DIN0084-M 4X20 A

0084040203

$1.49

54

* SPRING WASHER DIN0137-B 4

0137040003

Unavailable

55

* SPRING

57031559000

Unavailable

56

DIAPHRAGM

57031557000

Unavailable

57

PVC-HOSE 3X5MM

52031137001

Unavailable

58

MAIN JET HOLDER

57031522000

$6.55

60

FLOAT CHAMBER WITH RUN OVER T.

57031511100

Unavailable

62

PLUG M12X1

57031514000

$26.83

64

INTAKE TRUMPET FOR PHM 38 ND

57731040000

Unavailable

70

COVER

50131174000

$3.31

71

FUEL FILTER

15131112000

$5.23

72

REBOUND VALVE

57031556000

Unavailable

74

HH SCREW DIN0933-M 6X16

0933060163

$1.49

75

HOSE CONNECTOR

57031513000

$5.68

79

STUD 2 X 47

57031508000

$2.12

80

GASKET SET PHM 38 ND

57731099000

Unavailable
