REAR WHEEL

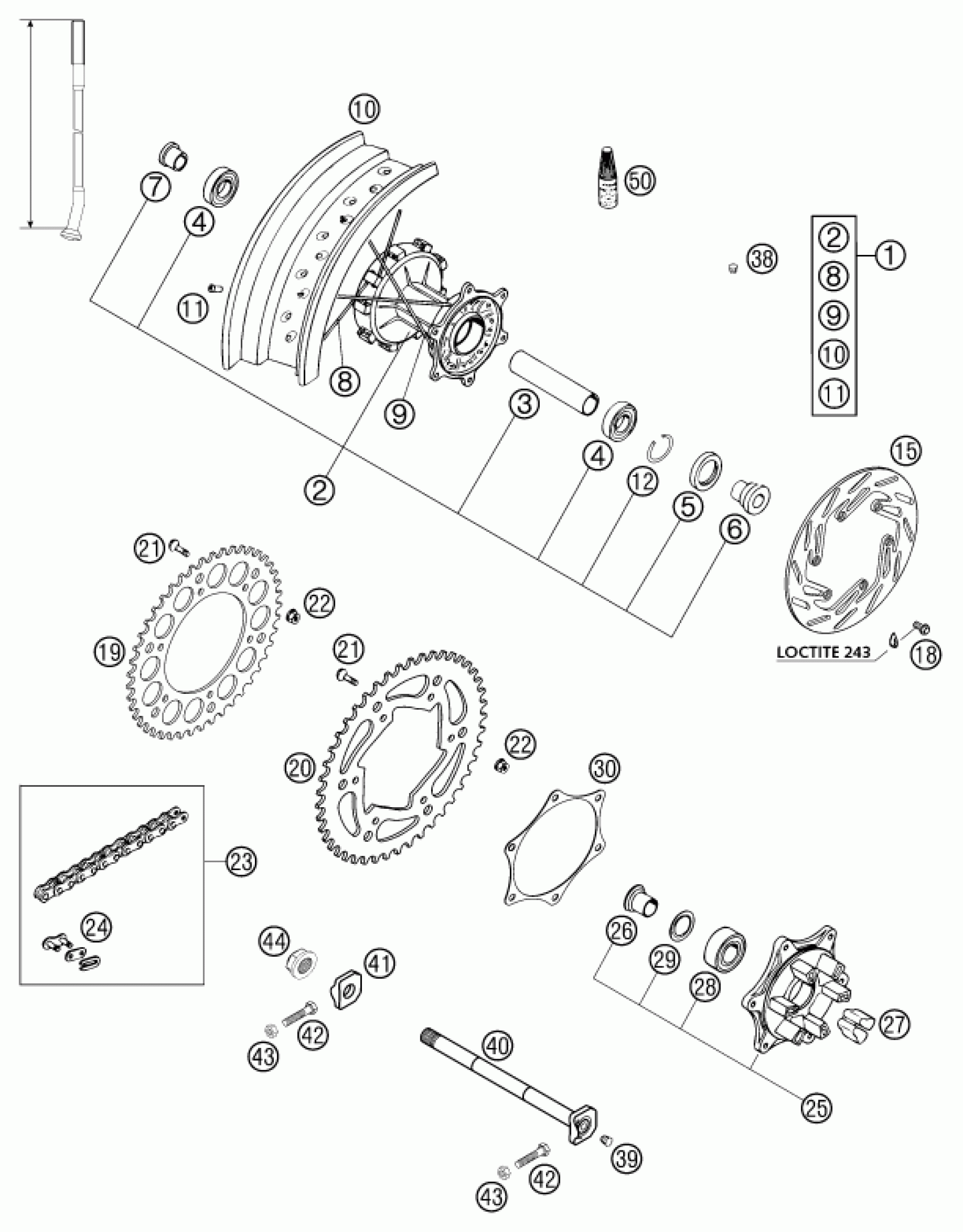

KTM 640 LC 4-E SUPERMOTO ROT 2002 REAR WHEEL Diagram
#
1
REAR WHEEL 4,25X17''
58410001344
Unavailable
2
REAR WHEEL HUB DAMPED CPL.'01
58410010044
Unavailable
3
BUSHING SPACER TUBE L=98,3MM
58410011000
Unavailable
4
Grooved ball bear. 6205-2RSHC3
0625062052
Unavailable
5
SHAFT SEAL RING 32X52X7 B
0760325272
Unavailable
6
BUSHING FOR HUB
58410016000
Unavailable
7
BUSHING FOR REAR DAMPED HUB
54610416300
Unavailable
8
SPOKE M5X199-16G 17''
58310171100
Unavailable
9
SPOKE M5X186-26G 17''
58310071100
Unavailable
10
REAR RIM 4,25X17''
58410070000
Unavailable
11
SPOKE NIPPLE M5-TA (8X21MM)
58309072000
Unavailable
12
CIRCLIP DIN0472-52X2
0472052200
Unavailable
15
REAR BRAKE DISK 220MM COUNTERS
58010060600
Unavailable
18
SPECIAL SCREW M6X13 WS=8 10.9
59009062013
Unavailable
19
REAR SPROCKET 38-T
58310051038
Unavailable
19
REAR SPROCKET 40-T
58310151040
Unavailable
19
REAR SPROCKET 42-T
58310051042
Unavailable
19
REAR SPROCKET 45-T
58310151045
Unavailable
20
REAR SPROCKET 48-T
58310151048
Unavailable
20
REAR SPROCKET 50-T
58310151050
Unavailable
20
REAR SPROCKET 52-T
58310151052
Unavailable
21
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
22
Self locking nut M8 10.9
54310086200
Unavailable
23
% X-RING CHAIN 5/8X1/4" +M.LIN
50310265114
Unavailable
23
% X-RING CHAIN 5/8X1/4" +M.LIN
50310265118
Unavailable
24
CONNECTING LINK
50310266000
Unavailable
24
MASTER LINK 5/8X1/4'' X-RING
50010066100
Unavailable
25
SPROCKET SUPPORT CPL.
58310050044
Unavailable
26
BUSH. F.SPROCKETSUPPORT L=25MM
54610417300
Unavailable
27
Rubber damping block 91
54610459000
Unavailable
28
GR. BALL BEARING 3205B-2RSRTNG
0625032057
Unavailable
29
SEAL WASHER 3205 AV
54610018000
Unavailable
30
SPROCKET ADAPTER 1,5MM NIRO
58710049000
Unavailable
38
PLUG FOR RIM
55003135000
Unavailable
39
Plug SFL16
50210086000
Unavailable
40
WHEEL SPINDLE REAR CPLL=264MM
50210085044
Unavailable
41
CHAIN TENSIONER '95
56510084100
Unavailable
42
HH SCREW M8X40 WS=10
50203030090
Unavailable
43
Hexagon nut DIN934 M8
0934080003
Unavailable
44
Hexagon nut M20x1.5
50310099000
Unavailable
50
LOCTITE 243 BLUE 5 ML
6899785
Unavailable
