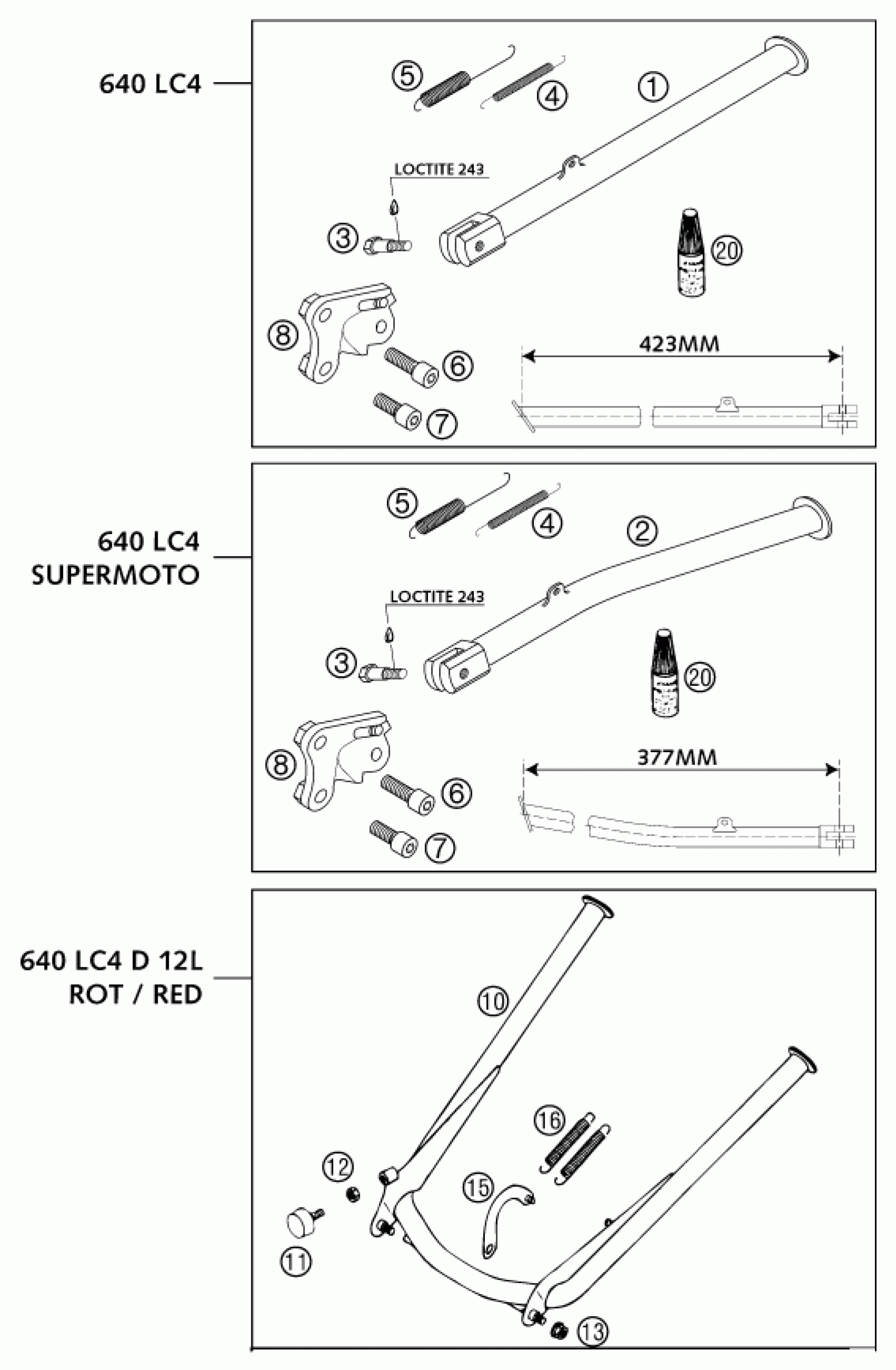

KTM 640 LC 4-E ORANGE 18L 2002 SIDE / CENTER STAND Diagram

#

Description

Price

1

*SIDE STAND SILVER M10 LC42000

5840302360090

Unavailable

2

SIDESTAND SILV. M10 S.MOT.2000

5840302370090

$45.06

3

SCREW FOR SIDE STAND M10X26,7

58203027200

$21.50

4

SIDE STAND SPRING D=7,7MM '97

58403030000

$3.85

5

SIDESTAND SPRING LONG

51003021000

$7.00

6

AH SCREW DIN0912-M10X30

0912100303

$2.05

7

AH SCREW DIN0912-M10X25 10.9

0912100256

$4.11

8

S.STAND BRACKET M10 LC4/S.M'99

58403026500

$35.60

10

CENTER STAND 378MM SILVER 20

5750302200090

Unavailable

11

STOP RUBBER M8

58303070000

$7.28

12

Hexagon nut DIN934 M8

0934080003

$2.05

13

Self locking nut M8 10.9

54310086200

$3.08

15

SPRINGBOW SILVER '99

5830302700090

$21.82

16

STAND SPRING SHORT

10003021000

$9.44

20

LOCTITE 243 BLUE 5 ML

6899785

$28.04
