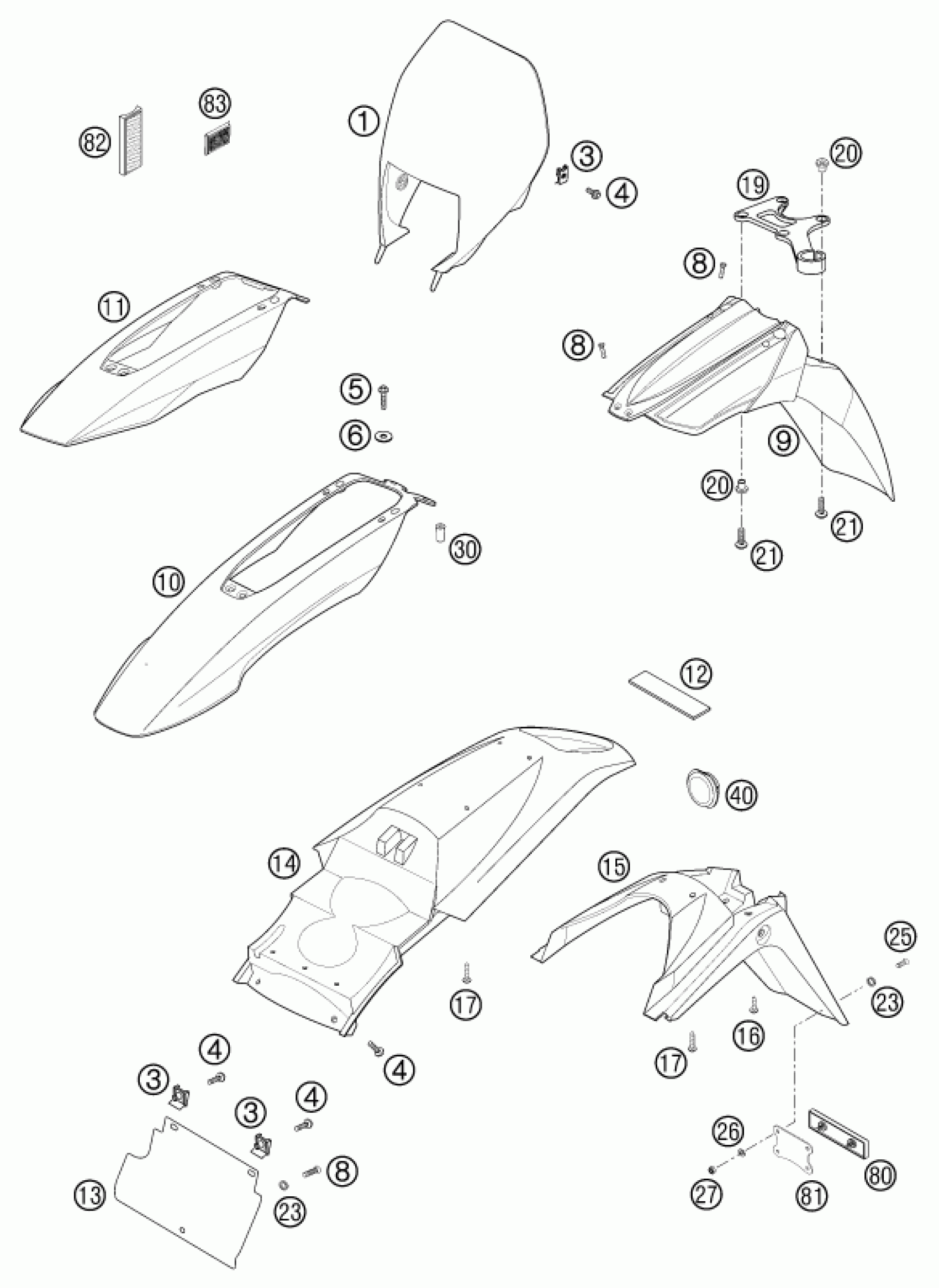

KTM 640 LC 4-E ORANGE 18L 2002 MASK, FENDERS Diagram

#

Description
Price

1

HEAD LIGHT MASK ORANGE LC4 '98

5840800100004

$23.42

1

HEAD LIGHT MASK RED LC4 02

5840800100045

$31.53

1

HEAD LIGHT MASK LC4 02

5840800100076

Unavailable

3

clip nut M6

54603048100

$4.11

4

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

5

HH COLLAR SCREW M 6X40 WS=8

0015060403

$3.08

6

Washer DIN9021-A 6.4

0021060003

$2.05

8

SCREW FOR PLASTIC D=5X18

0017050181

$1.49

9

FRONTFEND.REAR PART BLACK LC4

58408009000

Unavailable

10

FRONTFEND.FRONTPART ORANGE LC4

5840801000004

$19.99

10

FRONTFEND.FRONTPART RED 2002

5840801000045

$18.11

10

FRONTFEND.FRONTPART LC4 02

5840801000076

Unavailable

11

FRONTFENDER RED LC4 SM 02

5840801010045

Unavailable

11

FRONTFENDER STEEL BLUE SM 02

5840801010076

Unavailable

12

RUBBER STRIP 85X25X3 MM

54601097000

$1.49

13

FENDER EXTENSION LC4-E '97

58308013250

$13.01

14

FENDER REAR BLACK 1998

5840801410030

$58.44

14

FENDER REAR STEEL BLUE LC4 02

5840801410076

$78.17

15

NUMB.PLATE CARRIER BLACK LC4

58408015000

$35.76

16

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

17

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

19

BRAKE HOSE GUIDE 2000

59008019000

$4.11

20

SPACER BUSHING FRONT FENDER

58408009050

$3.08

21

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.05

23

WASHER 6MM

40006006000

$1.49

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

26

WASHER DIN0125-A 5,3

0125050003

$1.49

27

Self locking nut DIN 985 M5

0985050003

$2.05

30

BUSH FOR FENDER BRACKET 2000

58408010050

$5.88

40

RUBBER FOR FENDER REAR

58414040050

$8.71

80

REFLECTOR RED

58412080000

$5.23

81

BRACKET FOR REFLECTOR

58412080050

$6.07

82

REFLECTOR YELLOW '99

58412080100

$7.75

83

SIDE REFLECTOR RED REAR

16512180100

$7.10
