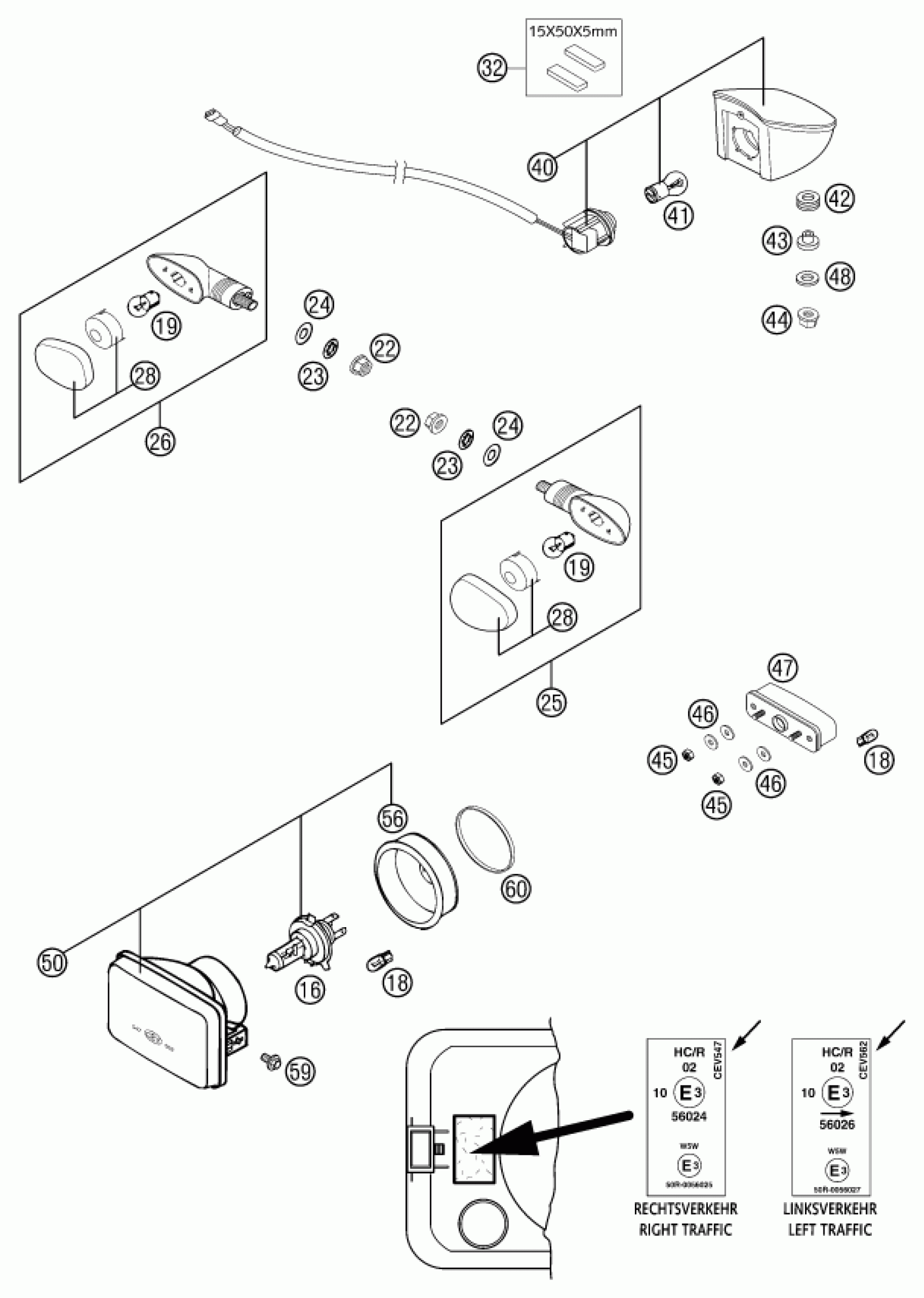

KTM 640 LC 4-E ORANGE 18L 2002 LIGHTING SYSTEM Diagram

#

Description
Price

16

BULB H4 12V 60/55W (P43T)

57111038000

$43.56

18

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

19

BULB 12V 10W (BA15S)

44111015100

$3.08

22

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

23

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

24

washer DIN 125 A 10.5

0125100003

$2.05

25

FLASHER CPL.FRONT L/S REAR R/S

58414025100

$29.30

26

FLASHER CPL.FRONT R/S REAR L/S

58414026100

$29.03

28

FLASHER LENS L/S & R/S 02

58414028100

$6.63

32

METAMOLL FOR REARLIGHT 99

58414040051

$1.49

40

REAR LIGHT CPL. LC4 2001

58414040100

$80.31

41

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

$12.61

42

RUBBER SLEEVE D=12MM

41001052000

$4.11

43

REAR LIGHT BUSHING

58714048000

$5.23

44

Self locking nut M6 - 10

56509064100

$2.05

45

Self locking nut DIN 985 M5

0985050003

$2.05

46

washer DIN 9021 A - 5.3

0021050003

$1.49

47

LICENSE-PLATE ILLUMINATION '98

58414047000

$14.67

48

Washer DIN9021-A 6.4

0021060003

$2.05

50

HEAD LIGHT CEV 547 RIGHT/S. H4

58414001100

$107.31

50

HEAD LIGHT CEV 562 LEFT/S. H4

58414001200

$69.88

56

RUBBER CAP

50211537000

$3.48

59

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

60

* RING D=50X1,5X6

58414002000

Unavailable

50

HEAD LIGHT SAE 547 USA H4

58414001300

$150.72
