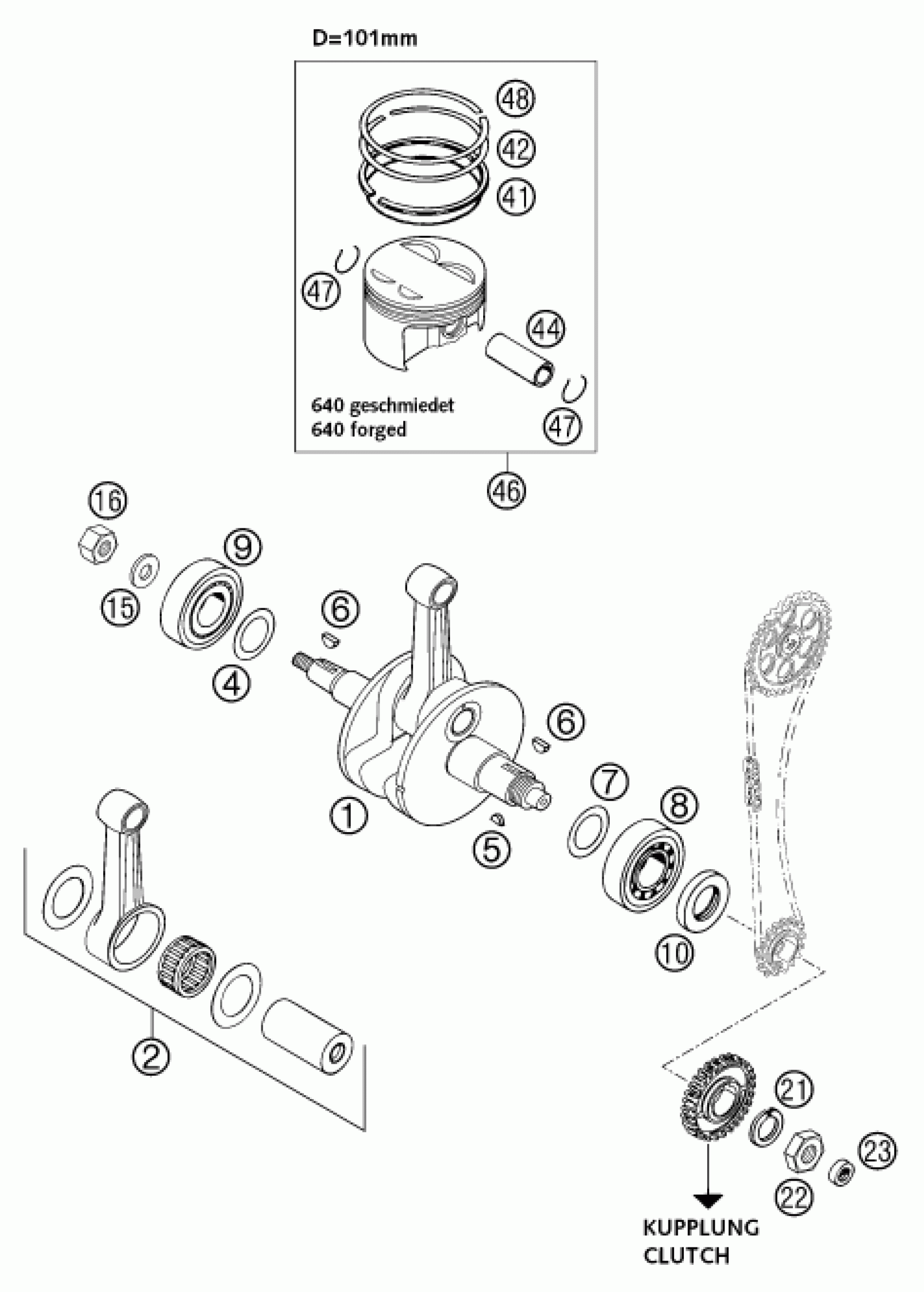

KTM 640 LC 4-E ORANGE 18L 2002 CRANKSHAFT, PISTON Diagram

#

Description
Price

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

1

CRANKSHAFT LC4 20

58430018200

Unavailable

2

CONNECTING ROD REPAIR SET LC

58330015044

$345.34

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

6

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

$115.28

9

CYL.ROLLER BEAR. NJ 207 ECP C3

56530123000

$90.13

10

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

STEEL WASHER 16 X 30 X 3

58330095000

$2.73

16

HEX NUT M16x1,25 L/S

58430028000

$7.48

21

LOCKING RING VSK 20

58030019000

$1.73

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

$6.52

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

41

OIL SCRAPER RING 101x2,5

58330031300

$34.31

42

TAP.COMPR.PISTON RING 101X1,25

58330932100

$26.45

44

PISTON PIN 22 X 13 X 60

58330833000

$46.27

46

PISTON I CPL.101MM FORGED 20

58430007000 I

Unavailable

46

PISTON II 101MM FORGED 20

58430007000 II

Unavailable

47

CIRCLIP 22 X 1,6

58430074000

$9.62

48

L-RING 101X93,5X1,5 2000

58430032000

$45.71
