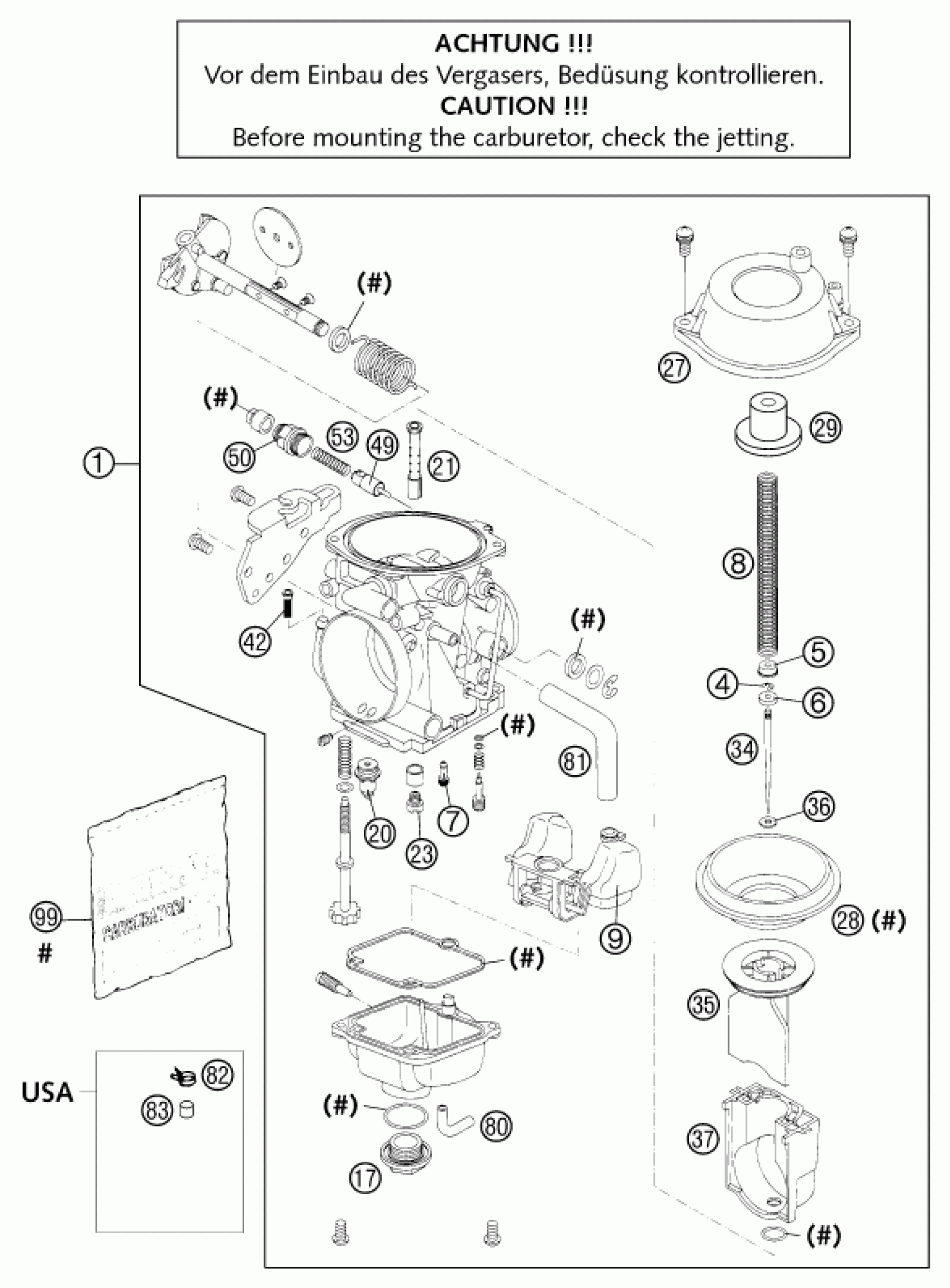

KTM 640 LC 4-E ORANGE 18L 2002 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR MIKUNI BST40-22598

58431001400

Unavailable

4

CIRCLIP

58431045000

$3.08

5

SPRING RING

58431031000

$1.88

6

PLASTIC RING

58431032000

$3.48

7

IDLING JET 45

58431007045

$13.27

7

IDLING GET 47,5

58431007047

Unavailable

8

THROTTLE VALVE SPRING

58431030000

$32.11

9

FLOAT 6,1 GRAMM MIKUNI

58431009000

$46.55

17

SCREW PLUG FLOAT CHAMBER

58431014000

$7.57

20

NEEDLE VALVE 2,8MM

58431020000

$54.13

21

NEEDLE JET 689 X-6

58431021689

$22.71

23

MAIN JET 140

58431023140

Unavailable

23

MAIN JET 142,5

58431023142

$6.38

23

MAIN JET 145

58431023145

Unavailable

23

MAIN JET 147,5

58431023147

Unavailable

23

MAIN JET 150

58431023150

Unavailable

23

MAIN JET 152,5

58431023152

Unavailable

23

MAIN JET 155

58431023155

Unavailable

23

MAIN JET 157,5

58431023157

Unavailable

23

MAIN JET 160

58431023160

Unavailable

23

MAIN JET 162,5

58431023162

Unavailable

23

MAIN JET 165

58431023165

Unavailable

23

MAIN JET 167,5

58431023167

Unavailable

23

MAIN JET 170

58431023170

Unavailable

23

MAIN JET 172,5

58431023172

Unavailable

23

MAIN JET 175

58431023175

Unavailable

23

MAIN JET 177,5

58431023177

Unavailable

23

MAIN JET 180

58431023180

Unavailable

27

DIAPHRAGM COVER MIKUNI

58431027000

$36.43

28

DIAPHRAGM FOR THROTTLE VALVE

58431028000

$42.16

29

SLIDE STOP L=17MM MIKUNI

58331029017

Unavailable

34

JET NEEDLE 6G5

584310346G5

$13.46

35

THROTTLE VALVE ''1''

58431035000

$54.22

36

SHIM JET NEEDLE

58431132000

$1.49

37

THROTTLE VALVE GUIDE PLASTIC

58431037000

$37.02

42

FUEL SCREEN MIKUNI

58431042000

$8.03

49

STARTING PISTON MIKUNI

58431049000

$32.90

50

SCREW M12 STARTSYSTEMN

58431050000

$8.97

53

SPRING 22,5MM FOR START.PISTON

58431053000

$5.98

80

PVC-HOSE 3X5MM

52031137001

Unavailable

81

HOSE ID 7,5 PER METER

54435024001

Unavailable

82

CLAMP YDNAC 10128 12MM

58031005000

$3.08

83

PLUG CAP FOR EPC CONNECTION

57931001010

$1.49

99

GASKET SET MIKUNI BST40-225

58431099000

$62.54
