HANDLEBAR, CONTROLS

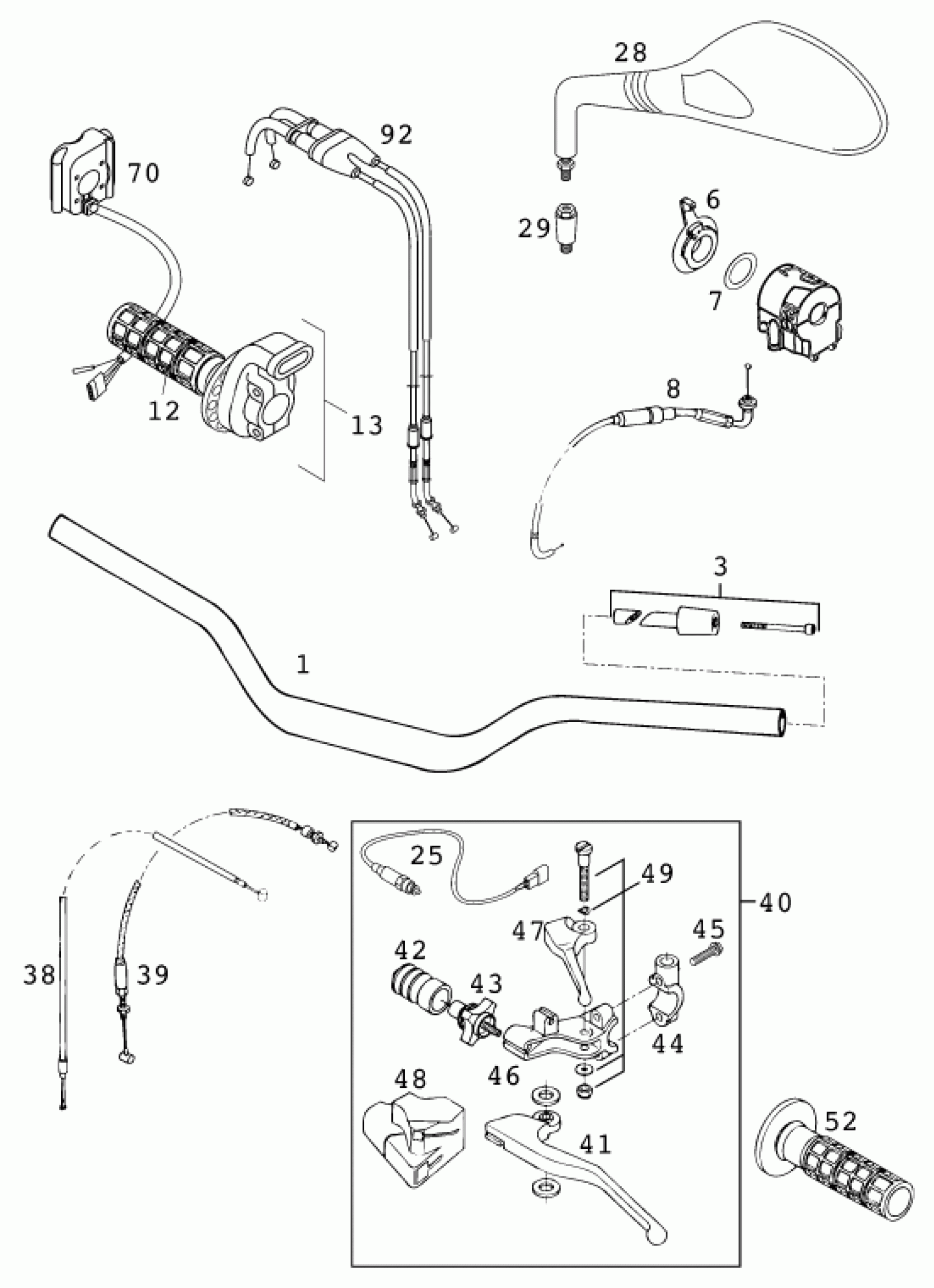

KTM 640 DUKE II SCHWARZ-MET. 2000 HANDLEBAR, CONTROLS Diagram
#
Description
Price
0
REAR MIRROR R/S DUKE BLACK '99
58712041000
$30.74
1
ALU-HANDLEBAR D=28MM '97
58302001500
$167.82
3
VIBRATIONS ABSORBER CPL. '94
58302004044
$36.01
3
VIBRATIONS ABS.CHROME CPL.2000
58302004144
$33.89
6
CHOKE LEVER DOMINO '94
58302050100
$10.46
7
thrust wash DIN0988-25x35x0,5
0988253505
$4.11
8
CHOKE CABLE FOR MIKUNI LC4 '98
58402095000
$46.74
12
TWIST GRIP COVER DOMINO
58302003000
$27.76
13
THROTTLE GRIP CPL. DUKE 2000
58702010000
$58.71
25
CLUTCH SWITCH '96
58411049000
$32.81
28
REAR MIRROR L/S DUKE BLACK '99
58712040000
$36.15
29
SUPPORT FOR MIRROR LC4 '98
58412040050
$20.19
38
CLUTCH CABLE 4T L=1115MM '99
58402090000
$42.63
39
DECOMPR. CABLE L=693,5 LC4 '99
58302094200
$32.84
40
* CLUTCH LEVER CPL DUKE'96
58402040000
Unavailable
41
CLUTCH LEVER LOOSE ''30'' BLAC
58302055200
$39.58
42
CLUTCH LEVER BOOT '95
58302126000
$5.23
43
ADJUSTMENT SCREW CPL.M7
58302043000
$22.06
44
CLAMP MIRROW M10x1,25
58302044000
$13.36
45
HH COLLAR SCREW M 6X25 WS=8
0015060253
$3.08
46
JOINT (PIVOT) DOMINO '96
58402041000
$39.45
47
DECOMPRESSION LEVER LOOSE
58302047000
$12.05
48
PLASTIC COVER '
58402048000
Unavailable
49
LEVER SCREW CPL.
58302049000
$7.00
52
FIXED GRIP DOMINO '93
58302052000
$27.76
70
START-STOP TIP SWITCH CPL
59011074000
$62.54
70
START-STOP SWITCH 2000
59011074100
$62.54
92
THROTT.CABLE ''OPEN-CLOSE'' 20
58402091600
$94.89
